ACE1904RS - Datasheet

ACE

Category Information

Shock Absorbers - Soft Contact Self-Compensating

Soft Contact Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 16.0 mm
    • Thread (T) 9/16-18
    • Length (A/F) 114.30 / 76.20 mm
    • Shaft Diameter (D) 4.06 mm
    • Effective Weight Soft Contact 34.02 - 90.72 KG
    • Effective Weight Self-Compen 22.68 - 102.06 KG
    • Wrench Flat (EE) 12.70 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-1904
      • ACE1904
      View full details

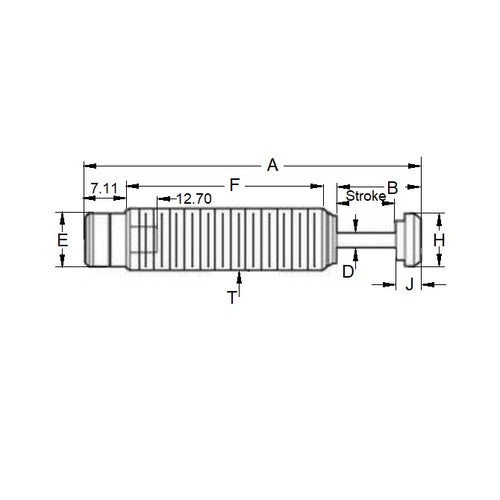

      ACE1904RSDiagramACE1904RSImage
