CMF016-15-040M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male to Female

Male to Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 16.00 mm
  • Body Height (H) 15.00 mm
  • Thread Size M4x0.7
  • Shore Hardness 60
  • Thread Length/Depth (L1/L2) 10.0 / 4.0 mm
  • Max Shear Load 268 Kg (lbs)
  • Configuration Male to Female
  • Other Info 85.00
  • Material Natural Rubber
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-VD1615-10
  • CVD161510
View full details

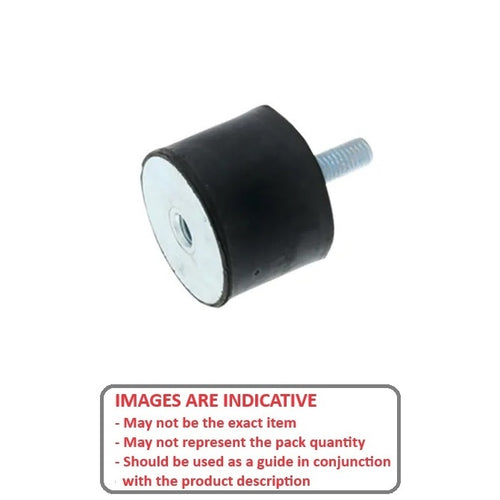

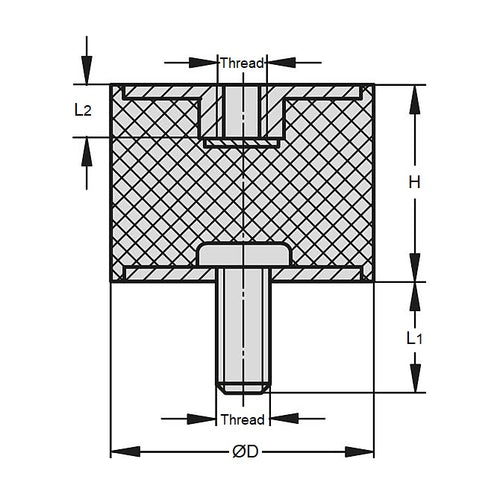

CMF016-15-040M-R60DiagramCMF016-15-040M-R60Image
