SLQ-1600-2858-08255-H - Datasheet
MBA
Category Information

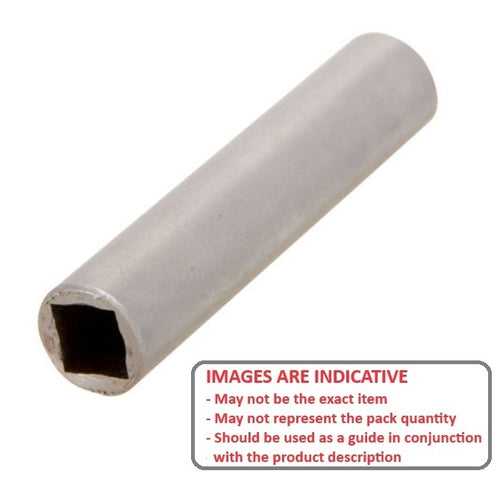

Sleeves - Square Hole - Plain - HardenedHardened Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in). Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
15.875
mm
+/- 0.0254

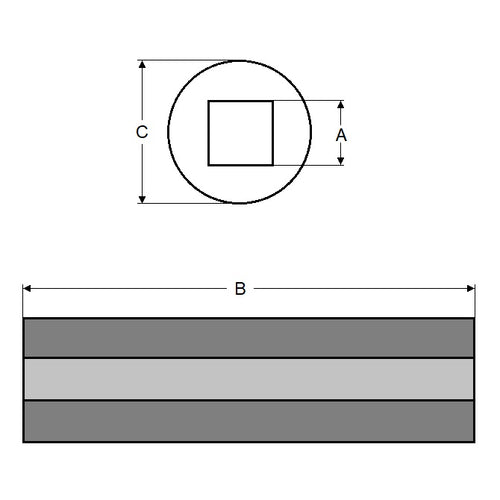

(Equiv. 0.625 in.) - Outside Diameter (C) 28.575 mm
- Length (B) 82.550 mm
- Actual Square Size (A) 16.002 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SHS-620
- SHS620
