Miniature Bearings Australia

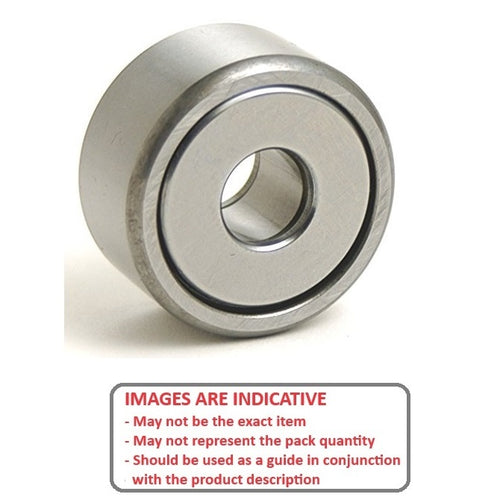

NART15VUUR - Datasheet
MBA
Category Information
Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

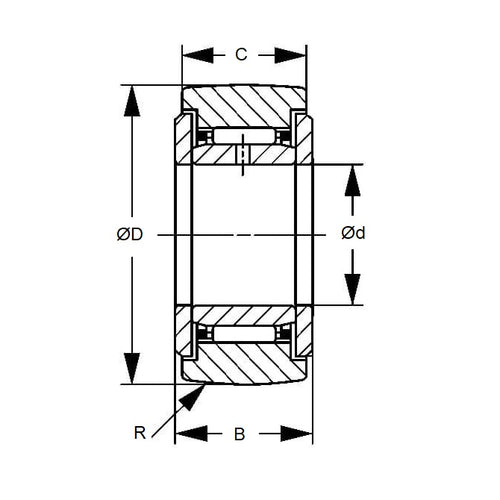

- ID (d) : 15.00 mm
- O.D. (D) 35.00 mm
- Width (C) 18.00 mm
- Inner Ring Width (B) 19.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 2560.00 kgf
- Static Load Rating 3710.00 kgf
- Closures Shields with Seal
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi® NART-15VUUR
- NART15VUUR
