CMM015-15-050M-R60 - Datasheet
MBA
Category Information

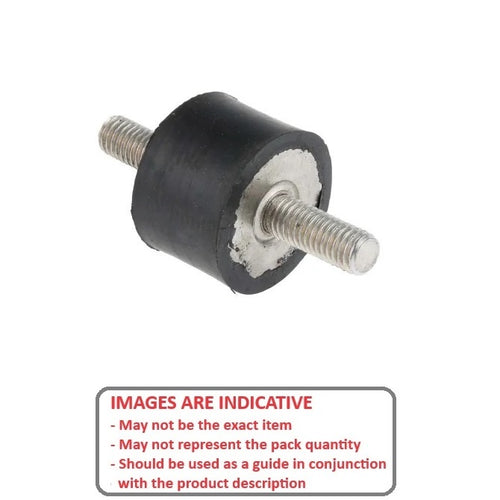

Mounts - Bobbin - MaleMale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.

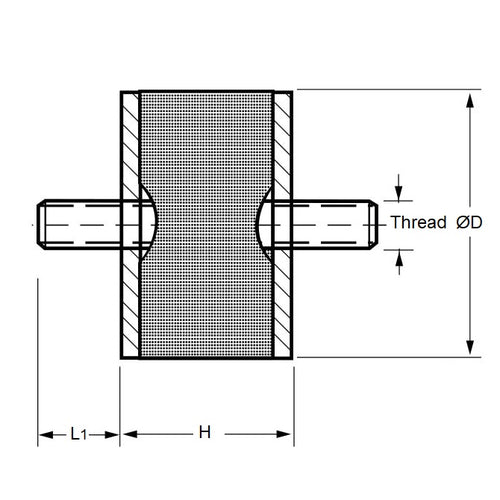

Product Data
- Nom. Body Diameter (D) : 15.0 mm
- Body Height (H) 15.0 mm
- Thread Size M5x0.8
- Shore Hardness 60
- Thread Length (L1) 15.0 mm
- Compression Load 10.7 (23) Kg (lbs)
- Deflection 1.3 mm
- Max Shear Load 5.5 (12.3) Kg (lbs)
- Configuration Male to Male
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- A-ZY-5-15-15
- AZY51515
