ACE6501RS - Datasheet

ACE

Category Information

Shock Absorbers - Soft Contact Self-Compensating

Soft Contact Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
    • Thread (T) 1-12
    • Length (A/F) 142.75 / 97.28 mm
    • Shaft Diameter (D) 6.35 mm
    • Effective Weight Soft Contact 10.89 - 36.29 KG
    • Effective Weight Self-Compen 7.71 - 45.36 KG
    • Wrench Flat (EE) 22.23 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-6501
      • ACE6501
      View full details

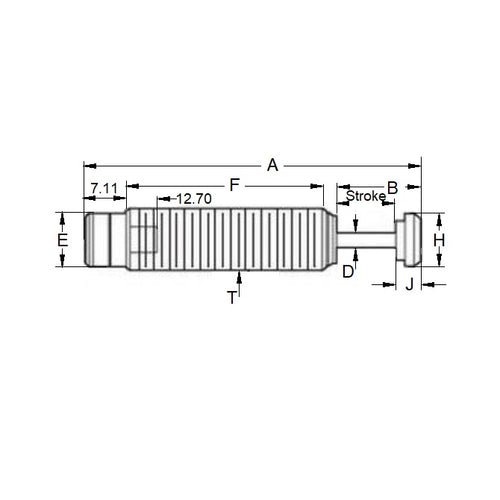

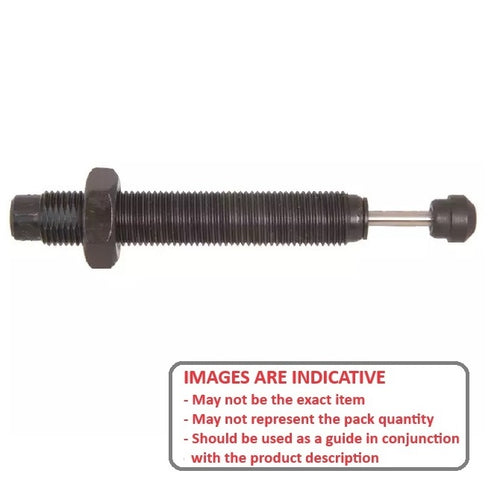

      ACE6501RSDiagramACE6501RSImage
