REF-140-L-CB - Datasheet
MBA
Category Information

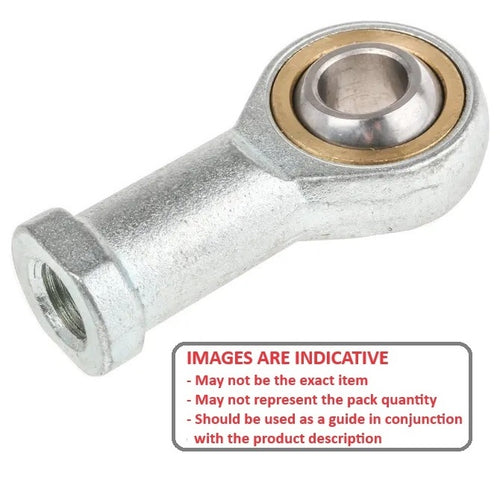

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

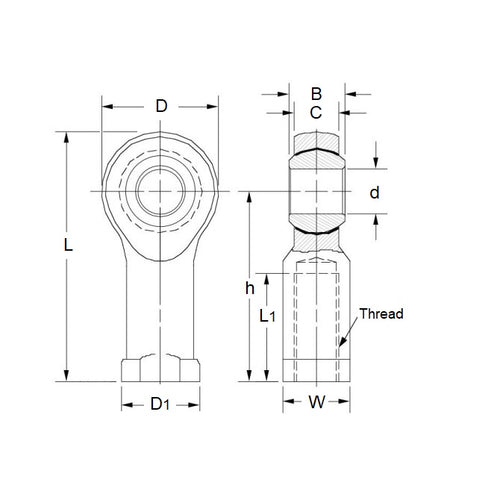

Product Data
- Eye Size (d1) : 14 mm
- Overall Length (L) 74.00 mm
- Thread Size (T) M14x2 Left
- Thread Length (l2) 27.00 mm
- Head Width (W) 13.50 mm
- Eye Width (W1) 19.00 mm
- Head Diameter (D) 34.00 mm
- Centre Height (l1) 57.00 mm
- Grease Nipple Yes
- Body Width/Flange Width(W2/D3) 22.00 / 25.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® E-GYNL14
- ASAHI® JAF14L
- KWK KF14L
- IKO PHS14L
- Nachi® PHS-14L
- NTN® SFI-14L
- SFI14L
- EGYNL14
