FR8A-2RS - Datasheet
ENQUIRE
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

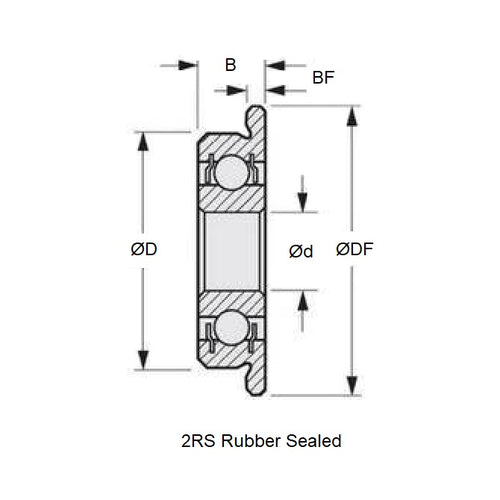

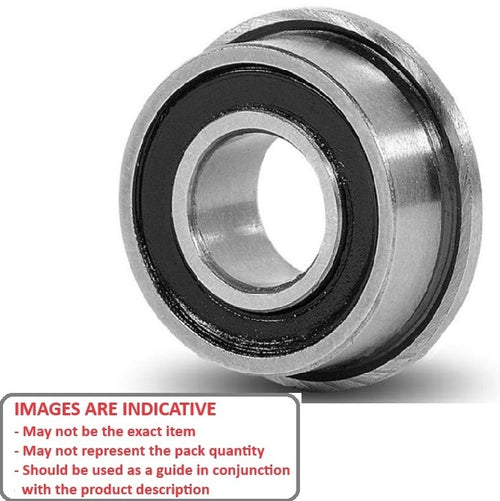

Double rubber sealed flanged bearing
- ID (d)
:
12.700
mm
+ 0.000 / - 0.0075
(Equiv. 0.5 in.) - O.D. (D)
28.575
mm
+ 0.000 / - 0.010
(Equiv. 1.125 in.) - Width (B)
7.938
mm
+ 0.000 / - 0.125
(Equiv. 0.313 in.) - Flange Diameter (DF) 31.120 mm
- Flange Width (BF) 1.575 mm
- Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R8A
- Limiting Speed 18360
- Cage Type Ribbon
- Static Load Rating KGf 246
- Dynamic Load Rating KGf 521
- Radii 0.40 mm
- Inner Shoulder (UI) 16.00mm
- Outer Shoulder (UO) 25.15 mm
- Number of Balls 8
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
