SLQ-1270-2022-06985-H - Datasheet
MBA
Category Information

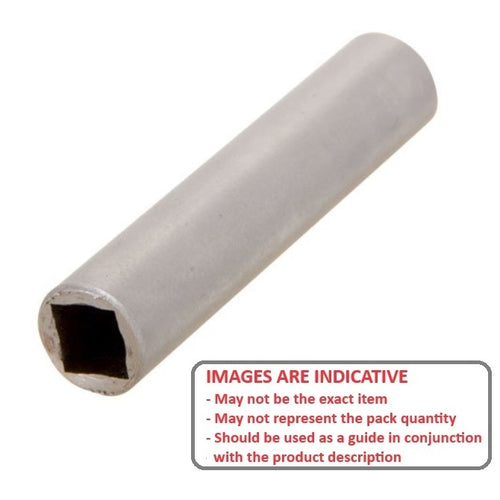

Sleeves - Square Hole - Plain - HardenedHardened Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in). Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
12.700
mm
+/- 0.0254

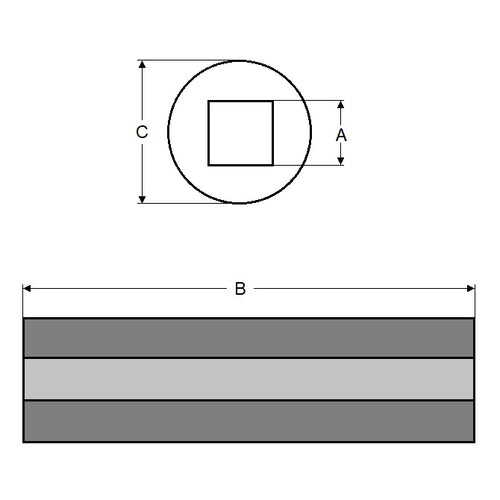

(Equiv. 0.5 in.) - Outside Diameter (C) 20.223 mm
- Length (B) 69.850 mm
- Actual Square Size (A) 12.827 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SHS-500
- SHS500
