Miniature Bearings Australia
RPO-126-128-SP15 - Datasheet
MBA
Category Information

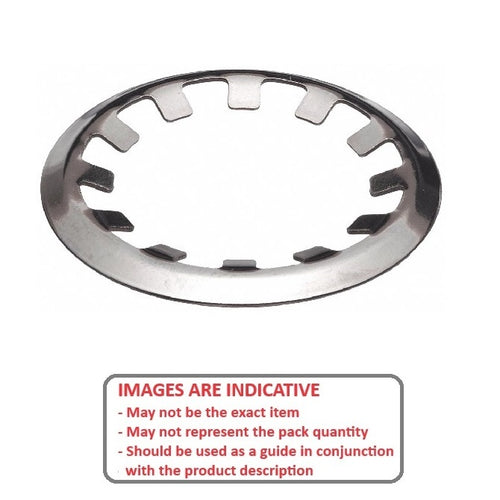

Retaining Rings - Push On - Stainless SteelStainless Steel Push On Retaining Rings. Rotor Clip TY. Stainless Steel hardness HR15N 82.5-86
- An expanded range may be available on special order. Please enquire.
- PH 15-7/17-7 Stainless Steel and 1.4310 Stainless Steel

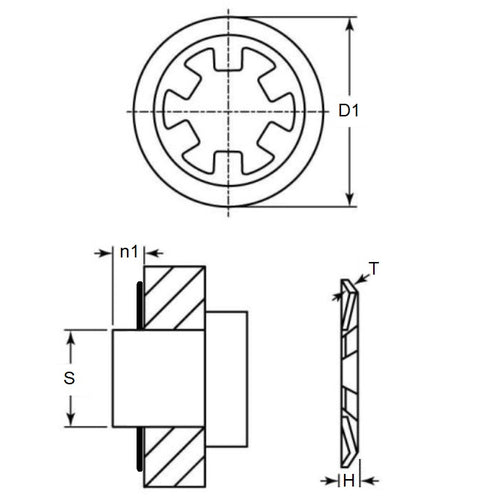

Product Data
- Min shaft size (s1) : 12.65 mm
- Max Shaft Size (s2) 12.75 mm
- Outside diameter (D1) 19.05 mm
- Min shaft extension (n1) 1.52 mm
- Material Thickness (t) 0.42 mm
- Material Stainless Steel Grade PH15-7-17
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5105-050-SS
- Waldes® 5115-050-SS
- IRR 6100-050-SS
- Huyett® TX-050-SS
- NoCor® TX-050-SS
- Rotor Clip® TX-050-SS
- NoCor® TY-050-SS
- Rotor Clip® TY-050-SS
- TY050SS
- TX050SS
- N1465050SS
- N1465-050-SS
- 6100050SS
- 5115050SS
- 5105050SS
