NAST12R - Datasheet
MBA
Category Information
Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

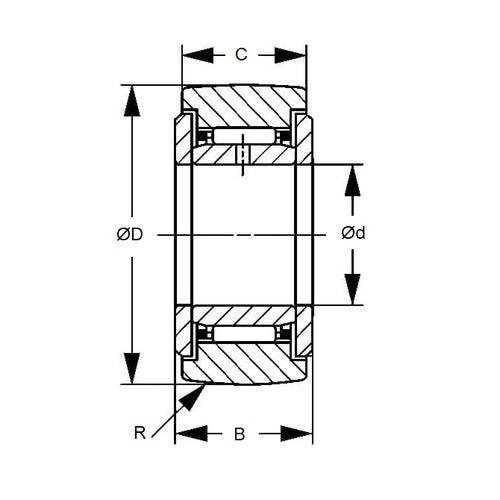

- ID (d) : 12.00 mm
- O.D. (D) 32.00 mm
- Width (C) 11.80 mm
- Inner Ring Width (B) 12.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 1070.00 kgf
- Static Load Rating 1110.00 kgf
- Closures None
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi® NAST-12R
- NAST12R
