BF0111-0127-0051-PC2 - Datasheet
MBA
Category Information

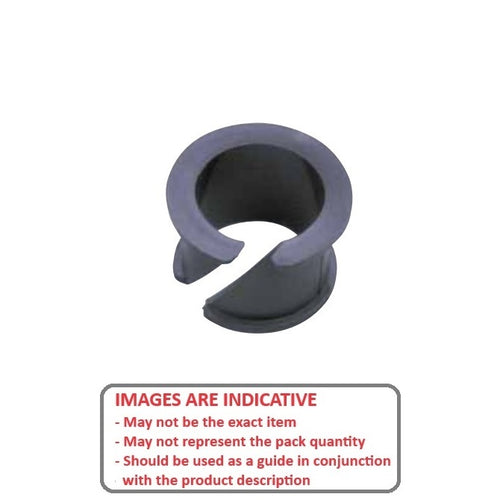

Bushes - Clip - Double FlangedDouble Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.
- Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
- Light weight
- M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)
Product Data

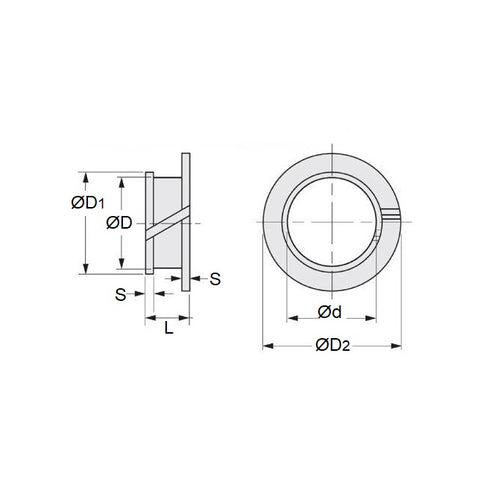

- Nominal Inside Diameter (d) : 11.113 mm
- Nominal Outside Diameter (D) 12.700 mm
- Overall Length 5.080 mm
- Large Flange Dia 15.875 mm
- Flange Width (S) 0.8 mm
- Small Flange Dia 13.494 mm
- Min Housing Bore 12.431 mm
- Max Housing Bore 12.700 mm
- Min Shaft Size 11.087 mm
- Max Shaft Size 11.113 mm
- Sheet Metal Thickness 1.83 to 3.43
- Material Plastic
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 6126K46
- S99GMC445320
- S99GMC-445320
