RP100-0700-4 - Datasheet
MBA
Category Information

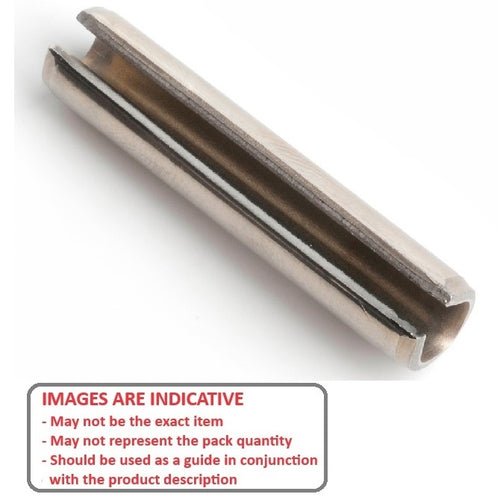

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

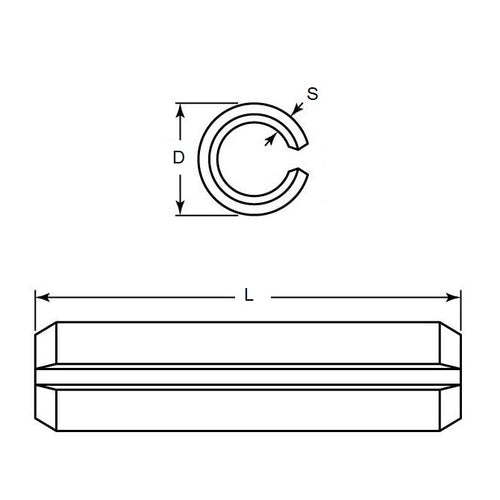

- Nominal Diameter (D) : 10.00 mm
- Length (L) 70.00 mm
- Free Diameter 11.00 mm
- Thickness (S) 2.00 mm
- Chamfer Length (cL) 0.50-2.40 mm
- Chamfer Diameter (cD) 9.7 mm
- Standard ASME B18.8.4M Type B
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPM3P-100-070-A
- NoCor® SPM3P-100-070-A
- SPM3P100070A
