BF0100-0116-0046-PC2 - Datasheet
MBA
Category Information

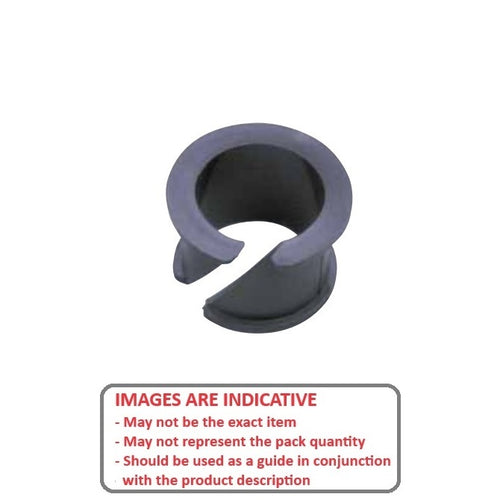

Bushes - Clip - Double FlangedDouble Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.
- Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
- Light weight
- M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)
Product Data

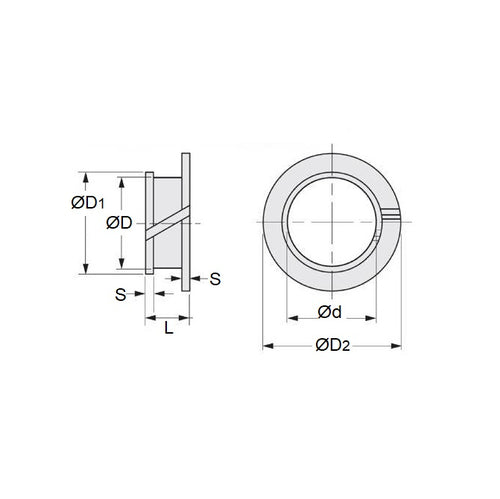

- Nominal Inside Diameter (d) : 10.000 mm
- Nominal Outside Diameter (D) 11.600 mm
- Overall Length 4.600 mm
- Large Flange Dia 15.000 mm
- Flange Width (S) 0.8 mm
- Small Flange Dia 12.400 mm
- Min Housing Bore 11.330 mm
- Max Housing Bore 11.600 mm
- Min Shaft Size 9.975 mm
- Max Shaft Size 10.000 mm
- Sheet Metal Thickness 2.45 to 2.92
- Material Plastic
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 7817K64
- S99GMCM1012446
