Y1588-191C-R-C - Datasheet
MBA
Category Information

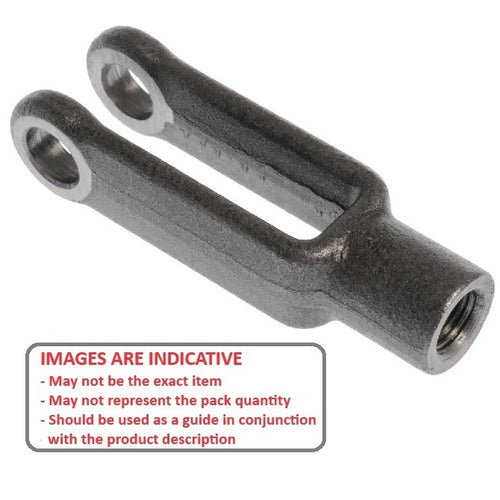

Yoke Ends - ThreadedThreaded Yoke Ends. Linkage connectors with threaded ends.
- A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
- It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
- Yoke ends require a clevis pin and cotter pin for secure attachment.
- Drop forged steel machined to SAE standards
- Also see clevis joints
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

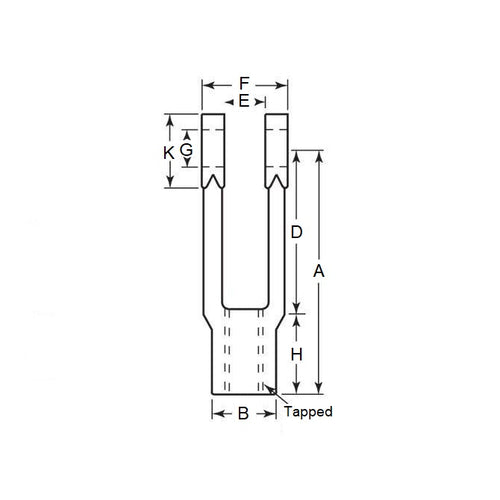

- Effective Length (A) : 101.600 mm
- Body Diameter (B) 28.580 mm
- Gap (E) +/- 0.38 17.460 mm
- Width (F) +/- 0.38 38.10 mm
- Hole Size (G) +0.25 15.88 mm
- Stud Height (H) (+0.79) 32 mm
- Housing Diameter (K) 35 mm
- Thread Size 3/4-10 UNC
- Thread Direction Right
- Material Steel
