Miniature Bearings Australia
LSB-100 - Datasheet
MBA
Category Information

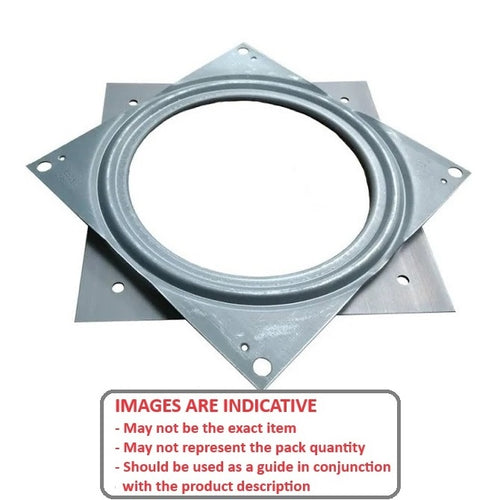

Lazy Susan BearingsLazy Susan Bearings. One unit construction for maximum stability and quiet running. Used to make light weight turntables.
- Rotary bearing that allows two plates, one fixed and one rotating, to spin 360 degrees smoothly with low friction by using ball or roller bearings between them.
- Centre opening allows for a centre post if required.

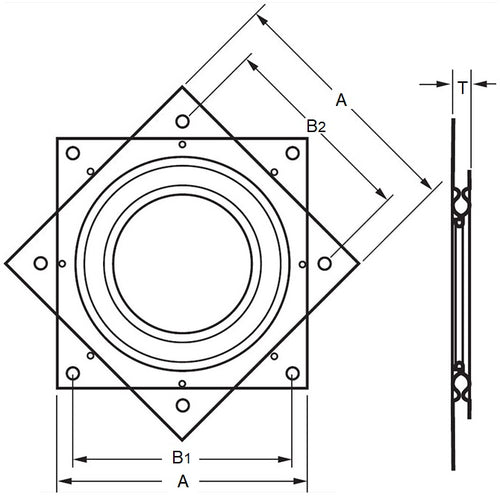

Product Data
- Approx Size : 100 mm
- Height 8 mm
- Load Capacity 135 kg
- Shape Square
- Max. Table Diameter 600 mm
- Centre Hole Diameter 55 mm
- Material Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- Ludowici 153102
- Triangle® 4C
- 6031K17
- Reid Tool® LS-4
- LS4
