REF-100-R-CB-F - Datasheet
MBA
Category Information

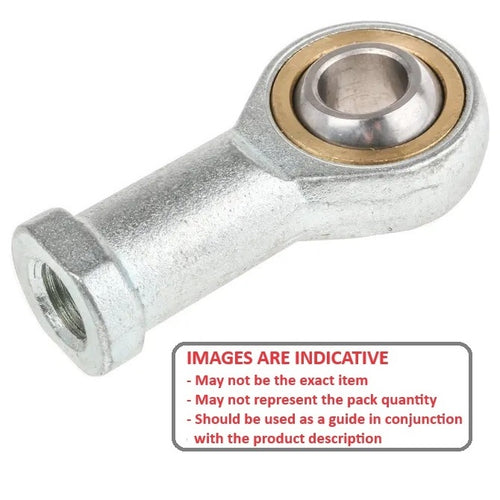

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

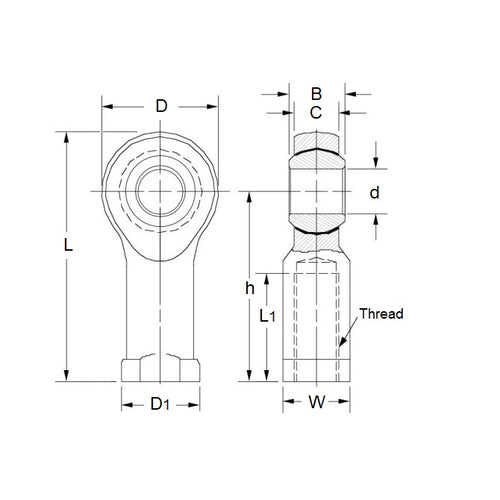

Product Data
- Eye Size : 10 mm
- Overall Length 56.000 mm
- Thread Size M10x1.25 Right
- Thread Length 20.00 mm
- Head Width 10.50 mm
- Eye Width 14.00 mm
- Centre Height 43.00 mm
- Grease Nipple Yes
- Body Width / Flange Width 17.00 / 19.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® E-GYN10A
- EGYN10A
