NAST10 - Datasheet

MBA

Category Information

Rollers - Track - With Inner Race

With Inner Race Track Rollers. This is the main category in this series

    Product Data

    • ID (d) : 10.00 mm
    • O.D. (D) 30.00 mm
    • Width (C) 11.80 mm
    • Inner Ring Width (B) 12.00 mm
    • OD Type Cylindrical
    • Dynamic Load Rating 1000.00 kgf
    • Static Load Rating 990.00 kgf
    • Closures None
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® NAST-10
      • NAST10
      View full details

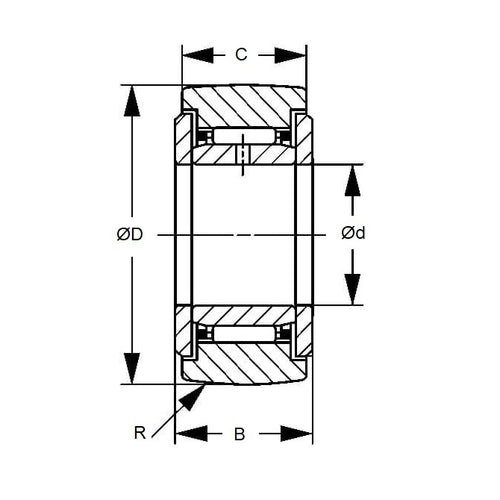

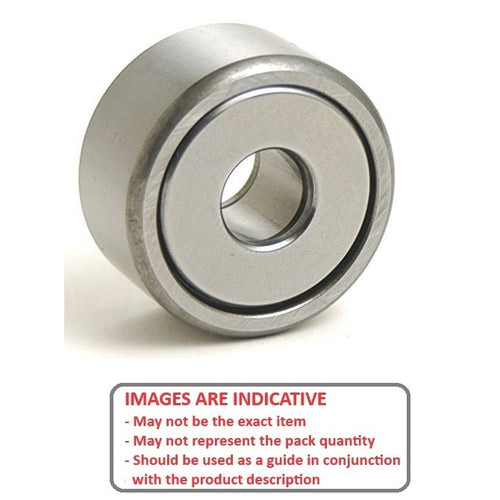

      NAST10DiagramNAST10Image
