KM064C-032-CST25 - Datasheet

MBA

Category Information

Knobs - Cross - Male

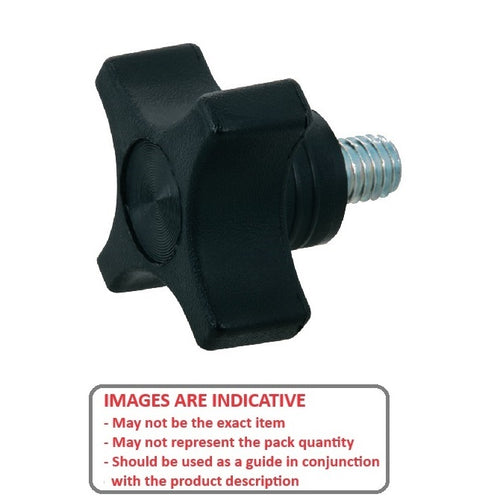

Male Cross Knobs. Black Plastic Knob with thread.

  • 4 Prong cross knobs with threads.

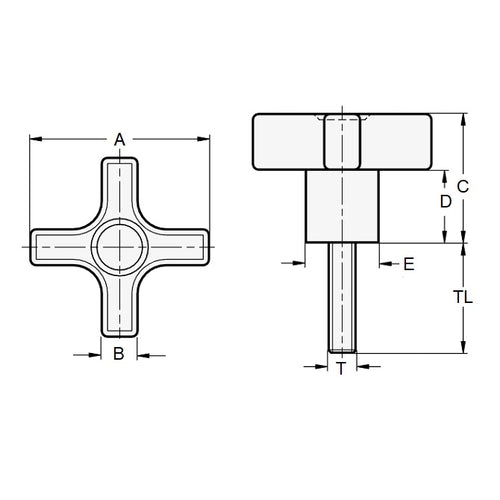

Product Data

  • Thread Size : 1/4-20 UNC (6.35mm)
  • Head Diameter (A) 32.00 mm
  • Thread Length 24.9 mm
  • Knob Length (C) 11.94 mm
  • Hub Diameter (E) 14.99 mm
  • Hub Length (D) 23.11 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-126
  • JCL126
