CHE-21RS - Datasheet

MBA

Category Information

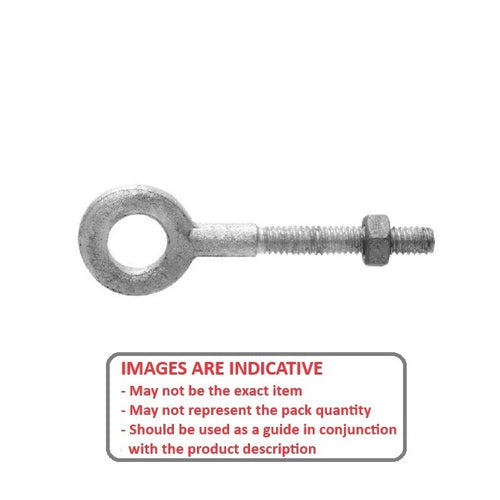

Eye Bolts - Partial Threaded Shank - Plain - Carbon Steel

Carbon Steel Plain Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.

  • Fastener with a loop or eye at one end, and a partial threaded shank on the other.
  • Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
  • Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Shank Length 203.200 mm
  • Eye Inside Diameter 25.400 mm
  • Rated Capacity 998 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3016T46
