| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

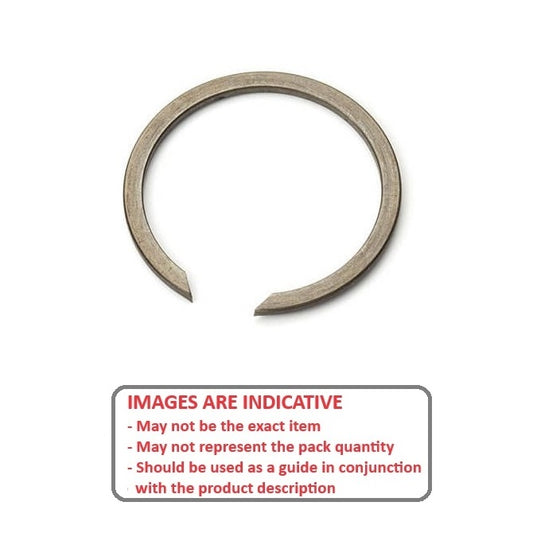

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 39x1.5x40.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
39.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
40.20
mm + 0.16 / - 0.00 (Equiv. 1.583 in.) |
Approx. Loose Circlip OD (Dr)
40.80
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 36.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0390-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 39x1.5x40.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
39.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
40.20
mm + 0.16 / - 0.00 (Equiv. 1.583 in.) |
Approx. Loose Circlip OD (Dr)
40.80
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 36.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0390-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 39.68x1.58x41.71 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
39.68
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
41.71
mm +/- 0.13 (Equiv. 1.642 in.) |
Approx. Loose Circlip OD (Dr)
42.37
mm + 1.20 / - 0.00 |
Section (Rd)
3.18
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 36.01 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0397-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 39.68x1.58x41.71 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
39.68
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
41.71
mm +/- 0.13 (Equiv. 1.642 in.) |
Approx. Loose Circlip OD (Dr)
42.37
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.18 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 36.01 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0397-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 33x1.5x34 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
33.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
34.00
mm + 0.16 / - 0.00 (Equiv. 1.339 in.) |
Approx. Loose Circlip OD (Dr)
34.40
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 29.8 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0330-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 33x1.5x34 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
33.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
34.00
mm + 0.16 / - 0.00 (Equiv. 1.339 in.) |
Approx. Loose Circlip OD (Dr)
34.40
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 29.8 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0330-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 34x1.5x35 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
34.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
35.00
mm + 0.16 / - 0.00 (Equiv. 1.378 in.) |
Approx. Loose Circlip OD (Dr)
35.40
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 30.8
Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 984 |
||||||
|
Part Number: WRI-0340-LS (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$63.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 34x1.5x35 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
34.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
35.00
mm + 0.16 / - 0.00 (Equiv. 1.378 in.) |
Approx. Loose Circlip OD (Dr)
35.40
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Approx. Loose Clip ID: 30.8
Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 984 |
||||||
|
Part Number: WRI-0340-LS (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$63.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 41.28x1.07x43.31 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
41.28
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
43.31
mm +/- 0.13 (Equiv. 1.705 in.) |
Approx. Loose Circlip OD (Dr)
43.82
mm + 1.58 / - 0.00 |
Section (Rd)
3.18
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 37.46 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0413-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 41.28x1.07x43.31 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
41.28
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
43.31
mm +/- 0.13 (Equiv. 1.705 in.) |
Approx. Loose Circlip OD (Dr)
43.82
mm + 1.58 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.18 mm +/- 0.13 Groove Width (W): 1.17 mm Approx. Loose Clip ID: 37.46 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0413-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 36x1.5x37.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
36.00
mm |
Clip Thickness (T)
1.50
mm |
Groove Dia. (Dg)
37.20
mm |
Approx. Loose Circlip OD (Dr)
37.80
mm |
|
||
| Material: Carbon Spring Steel Approx. Loose Clip ID: 33.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0360-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 36x1.5x37.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
36.00
mm |
Clip Thickness (T)
1.50
mm |
Groove Dia. (Dg)
37.20
mm |
Approx. Loose Circlip OD (Dr)
37.80
mm |
|
||
| Material: Carbon Spring Steel Approx. Loose Clip ID: 33.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0360-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$7.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 41.28x1.58x43.41 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
41.28
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
43.41
mm +/- 0.13 (Equiv. 1.709 in.) |
Approx. Loose Circlip OD (Dr)
44.09
mm + 1.20 / - 0.00 |
Section (Rd)
3.58
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 36.93 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0413-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 41.28x1.58x43.41 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
41.28
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
43.41
mm +/- 0.13 (Equiv. 1.709 in.) |
Approx. Loose Circlip OD (Dr)
44.09
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.58 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 36.93 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0413-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 41.99x1.58x44.12 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
41.99
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
44.12
mm +/- 0.13 (Equiv. 1.737 in.) |
Approx. Loose Circlip OD (Dr)
44.83
mm + 1.20 / - 0.00 |
Section (Rd)
3.58
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 37.67 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0420-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 41.99x1.58x44.12 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
41.99
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
44.12
mm +/- 0.13 (Equiv. 1.737 in.) |
Approx. Loose Circlip OD (Dr)
44.83
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.58 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 37.67 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0420-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 42.88x1.58x45.11 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
42.88
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
45.11
mm +/- 0.13 (Equiv. 1.776 in.) |
Approx. Loose Circlip OD (Dr)
45.82
mm + 1.20 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 37.9 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0429-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 42.88x1.58x45.11 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
42.88
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
45.11
mm +/- 0.13 (Equiv. 1.776 in.) |
Approx. Loose Circlip OD (Dr)
45.82
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 37.9 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0429-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 37x1.5x38.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
37.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
38.20
mm + 0.16 / - 0.00 (Equiv. 1.504 in.) |
Approx. Loose Circlip OD (Dr)
38.80
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 34.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0370-LS (Each)
10 Available Now | Further orders can be expected around Fri, Sep 04, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 37x1.5x38.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
37.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
38.20
mm + 0.16 / - 0.00 (Equiv. 1.504 in.) |
Approx. Loose Circlip OD (Dr)
38.80
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 34.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0370-LS (Each)
10 Available Now | Further orders can be expected around Fri, Sep 04, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 44.45x1.07x46.48 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
44.45
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
46.48
mm +/- 0.13 (Equiv. 1.83 in.) |
Approx. Loose Circlip OD (Dr)
47.12
mm + 1.58 / - 0.00 |
Section (Rd)
3.18
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 40.76 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0445-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 44.45x1.07x46.48 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
44.45
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
46.48
mm +/- 0.13 (Equiv. 1.83 in.) |
Approx. Loose Circlip OD (Dr)
47.12
mm + 1.58 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.18 mm +/- 0.13 Groove Width (W): 1.17 mm Approx. Loose Clip ID: 40.76 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0445-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 44.45x1.58x46.79 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
44.45
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
46.79
mm +/- 0.13 (Equiv. 1.842 in.) |
Approx. Loose Circlip OD (Dr)
47.50
mm + 1.20 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 39.58 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0445-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 44.45x1.58x46.79 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
44.45
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
46.79
mm +/- 0.13 (Equiv. 1.842 in.) |
Approx. Loose Circlip OD (Dr)
47.50
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 39.58 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0445-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 44.45x1.58x47.19 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
44.45
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.13 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.70
mm + 1.80 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 39.78 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0445-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 44.45x1.58x47.19 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
44.45
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.13 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.70
mm + 1.80 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 39.78 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0445-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 46x1.5x47.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
46.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
47.20
mm + 0.16 / - 0.00 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.80
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 43.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0460-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 46x1.5x47.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
46.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
47.20
mm + 0.16 / - 0.00 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.80
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 43.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0460-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 40x1.5x41.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
40.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
41.20
mm + 0.16 / - 0.00 (Equiv. 1.622 in.) |
Approx. Loose Circlip OD (Dr)
41.80
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 37.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0400-LS (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 40x1.5x41.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
40.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
41.20
mm + 0.16 / - 0.00 (Equiv. 1.622 in.) |
Approx. Loose Circlip OD (Dr)
41.80
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 37.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0400-LS (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Nov 26, 2026 |
||||||
| Internal Retaining Rings - 46.03x1.58x48.36 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.03
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.36
mm +/- 0.13 (Equiv. 1.904 in.) |
Approx. Loose Circlip OD (Dr)
49.10
mm + 1.20 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 41.18 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0460-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 46.03x1.58x48.36 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.03
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.36
mm +/- 0.13 (Equiv. 1.904 in.) |
Approx. Loose Circlip OD (Dr)
49.10
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 41.18 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0460-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 46.03x1.58x48.82 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.03
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm +/- 0.13 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 1.80 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 41.41 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0460-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 46.03x1.58x48.82 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.03
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm +/- 0.13 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 1.80 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 41.41 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0460-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 46.99x1.58x49.43 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.99
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
49.43
mm +/- 0.13 (Equiv. 1.946 in.) |
Approx. Loose Circlip OD (Dr)
50.17
mm + 1.20 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 42.25 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0470-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 46.99x1.58x49.43 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.99
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
49.43
mm +/- 0.13 (Equiv. 1.946 in.) |
Approx. Loose Circlip OD (Dr)
50.17
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 42.25 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0470-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 46.99x1.58x49.84 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.99
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
49.84
mm +/- 0.13 (Equiv. 1.962 in.) |
Approx. Loose Circlip OD (Dr)
50.34
mm + 1.80 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 42.42 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0470-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 46.99x1.58x49.84 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
46.99
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
49.84
mm +/- 0.13 (Equiv. 1.962 in.) |
Approx. Loose Circlip OD (Dr)
50.34
mm + 1.80 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 42.42 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0470-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 47.63x1.07x49.91 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
47.63
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
49.91
mm +/- 0.13 (Equiv. 1.965 in.) |
Approx. Loose Circlip OD (Dr)
50.55
mm + 1.58 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 42.63 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0476-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 47.63x1.07x49.91 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
47.63
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
49.91
mm +/- 0.13 (Equiv. 1.965 in.) |
Approx. Loose Circlip OD (Dr)
50.55
mm + 1.58 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.17 mm Approx. Loose Clip ID: 42.63 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0476-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 47.63x1.58x50.11 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
47.63
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.11
mm +/- 0.13 (Equiv. 1.973 in.) |
Approx. Loose Circlip OD (Dr)
50.80
mm + 1.20 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 42.88 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0476-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 47.63x1.58x50.11 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
47.63
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.11
mm +/- 0.13 (Equiv. 1.973 in.) |
Approx. Loose Circlip OD (Dr)
50.80
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 42.88 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0476-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 47.63x1.58x50.52 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
47.63
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.52
mm +/- 0.13 (Equiv. 1.989 in.) |
Approx. Loose Circlip OD (Dr)
51.16
mm + 1.80 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 43.24 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0476-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 47.63x1.58x50.52 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
47.63
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.52
mm +/- 0.13 (Equiv. 1.989 in.) |
Approx. Loose Circlip OD (Dr)
51.16
mm + 1.80 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 43.24 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0476-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 48x1.5x49.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
48.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
49.20
mm + 0.16 / - 0.00 (Equiv. 1.937 in.) |
Approx. Loose Circlip OD (Dr)
49.80
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 45.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0480-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 48x1.5x49.2 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
48.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
49.20
mm + 0.16 / - 0.00 (Equiv. 1.937 in.) |
Approx. Loose Circlip OD (Dr)
49.80
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 45.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0480-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 49.23x1.58x51.77 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
49.23
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
51.77
mm +/- 0.13 (Equiv. 2.038 in.) |
Approx. Loose Circlip OD (Dr)
52.53
mm + 1.20 / - 0.00 |
Section (Rd)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 44.61 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0492-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 49.23x1.58x51.77 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
49.23
mm |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
51.77
mm +/- 0.13 (Equiv. 2.038 in.) |
Approx. Loose Circlip OD (Dr)
52.53
mm + 1.20 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.96 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 44.61 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0492-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
