| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

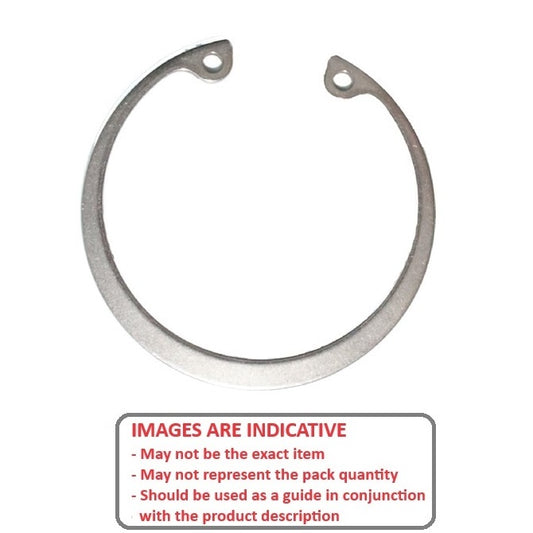

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 78x2.5x81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
78.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
81.00
mm + 0.35 / - 0.00 (Equiv. 3.189 in.) |
Approx. Loose Circlip OD (Dr)
82.50
mm + 1.30 / - 0.54 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 60.10 mm Clearance in Groove (C1): 64.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-07800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 78x2.5x81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
78.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
81.00
mm + 0.35 / - 0.00 (Equiv. 3.189 in.) |
Approx. Loose Circlip OD (Dr)
82.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 60.10 mm Clearance in Groove (C1): 64.00 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-07800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
65.07
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm +/- 0.152 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.79
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 100 |
||||||
|
Part Number: CCI-06507-S15 (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$1,909.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
65.07
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm +/- 0.152 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.79
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 100 |
||||||
|
Part Number: CCI-06507-S15 (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$1,909.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
66.68
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm +/- 0.152 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 52.83 mm Clearance in Groove (C1): 56.90 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.94 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06668-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 08, 2026 Regular price
$40.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
66.68
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm +/- 0.152 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 52.83 mm Clearance in Groove (C1): 56.90 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.94 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06668-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 08, 2026 Regular price
$40.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 68x2.5x71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
68.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
71.00
mm + 0.30 / - 0.00 (Equiv. 2.795 in.) |
Approx. Loose Circlip OD (Dr)
72.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 51.60 mm
Clearance in Groove (C1): 55.40 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 107 |
||||||
|
Part Number: CCI-06800-S15 (Pack of 25)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$667.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 25
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 68x2.5x71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
68.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
71.00
mm + 0.30 / - 0.00 (Equiv. 2.795 in.) |
Approx. Loose Circlip OD (Dr)
72.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 51.60 mm
Clearance in Groove (C1): 55.40 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 107 |
||||||
|
Part Number: CCI-06800-S15 (Pack of 25)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$667.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 25
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 68.26x2.36x72.34 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
68.26
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.34
mm +/- 0.152 (Equiv. 2.848 in.) |
Approx. Loose Circlip OD (Dr)
75.69
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 54.61 mm Clearance in Groove (C1): 58.67 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 6.10 | ||||||
|
Part Number: CCI-06826-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Sep 06, 2026 Regular price
$130.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 68.26x2.36x72.34 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
68.26
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.34
mm +/- 0.152 (Equiv. 2.848 in.) |
Approx. Loose Circlip OD (Dr)
75.69
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 54.61 mm Clearance in Groove (C1): 58.67 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 6.10 | ||||||
|
Part Number: CCI-06826-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Sep 06, 2026 Regular price
$130.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 69.85x2.36x74.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
69.85
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.02
mm +/- 0.152 (Equiv. 2.914 in.) |
Approx. Loose Circlip OD (Dr)
77.47
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 55.37 mm
Clearance in Groove (C1): 59.44 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.25
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 311 |
||||||
|
Part Number: CCI-06985-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$41.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 69.85x2.36x74.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
69.85
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.02
mm +/- 0.152 (Equiv. 2.914 in.) |
Approx. Loose Circlip OD (Dr)
77.47
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 55.37 mm
Clearance in Groove (C1): 59.44 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.25
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 311 |
||||||
|
Part Number: CCI-06985-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$41.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

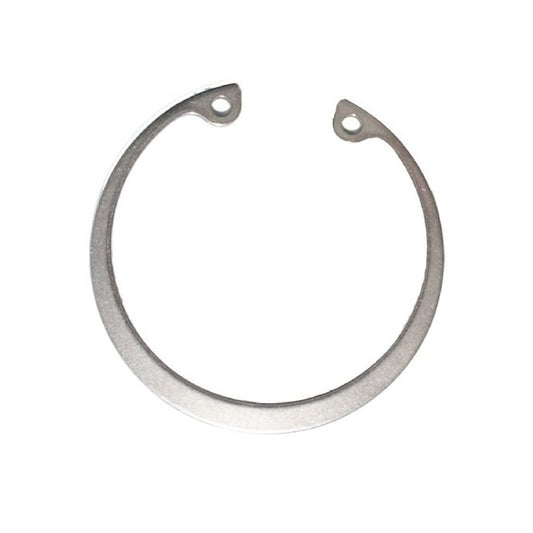

| Internal Retaining Rings - 70x2.5x73 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
70.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.00
mm + 0.30 / - 0.00 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 53.60 mm
Clearance in Groove (C1): 57.40 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 36 |
||||||
|
Part Number: CCI-07000-S15 (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$1,946.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 70x2.5x73 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
70.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.00
mm + 0.30 / - 0.00 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 53.60 mm
Clearance in Groove (C1): 57.40 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 36 |
||||||
|
Part Number: CCI-07000-S15 (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$1,946.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
82.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
85.50
mm + 0.35 / - 0.00 (Equiv. 3.366 in.) |
Approx. Loose Circlip OD (Dr)
87.50
mm + 1.30 / - 0.54 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 64.10 mm Clearance in Groove (C1): 68.50 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-08200-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
82.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
85.50
mm + 0.35 / - 0.00 (Equiv. 3.366 in.) |
Approx. Loose Circlip OD (Dr)
87.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.10 mm Clearance in Groove (C1): 68.50 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-08200-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
71.42
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm +/- 0.152 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.40
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 108 |
||||||
|
Part Number: CCI-07142-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$43.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
71.42
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm +/- 0.152 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.40
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 108 |
||||||
|
Part Number: CCI-07142-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$43.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 72x2.5x75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
72.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.00
mm + 0.30 / - 0.00 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 55.60 mm
Clearance in Groove (C1): 59.40 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 65 |
||||||
|
Part Number: CCI-07200-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$19.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 72x2.5x75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
72.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.00
mm + 0.30 / - 0.00 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 55.60 mm
Clearance in Groove (C1): 59.40 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 65 |
||||||
|
Part Number: CCI-07200-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$19.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 88x3x91.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
88.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.35 / - 0.00 (Equiv. 3.602 in.) |
Approx. Loose Circlip OD (Dr)
93.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 69.90 mm Clearance in Groove (C1): 74.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-08800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 88x3x91.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
88.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.35 / - 0.00 (Equiv. 3.602 in.) |
Approx. Loose Circlip OD (Dr)
93.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 69.90 mm Clearance in Groove (C1): 74.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-08800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
73.03
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm +/- 0.152 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.71
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 17 |
||||||
|
Part Number: CCI-07303-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$53.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
73.03
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm +/- 0.152 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.71
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 17 |
||||||
|
Part Number: CCI-07303-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$53.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.152 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 61.72 mm Clearance in Groove (C1): 66.04 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 6.93 Standard: MIL-16625 | ||||||
|
Part Number: CCI-07620-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 01, 2026 Regular price
$52.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.152 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.62 mm + 0.13 / - 0.00 Clearance in Bore (C): 61.72 mm Clearance in Groove (C1): 66.04 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 6.93 Standard: MIL-16625 | ||||||
|
Part Number: CCI-07620-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 01, 2026 Regular price
$52.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 92x3x95.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
92.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.35 / - 0.00 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 73.70 mm Clearance in Groove (C1): 78.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09200-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 92x3x95.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
92.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.35 / - 0.00 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 73.70 mm Clearance in Groove (C1): 78.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09200-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
77.79
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.07 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.152 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
86.82
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 62.48 mm
Clearance in Groove (C1): 67.06 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.09
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 65 |
||||||
|
Part Number: CCI-07779-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$79.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
77.79
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.07 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.152 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
86.82
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 62.48 mm
Clearance in Groove (C1): 67.06 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.09
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 65 |
||||||
|
Part Number: CCI-07779-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$79.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
79.38
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm +/- 0.152 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.24 Standard: MIL-16625 | ||||||
|
Part Number: CCI-07938-S15 (Pack of 3)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Oct 17, 2026 Regular price
$190.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 3
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
79.38
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm +/- 0.152 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 1.40 / - 1.40 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.24 Standard: MIL-16625 | ||||||
|
Part Number: CCI-07938-S15 (Pack of 3)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Oct 17, 2026 Regular price
$190.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 3
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
79.98
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.04
mm +/- 0.152 (Equiv. 3.348 in.) |
Approx. Loose Circlip OD (Dr)
89.48
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 64.77 mm
Clearance in Groove (C1): 69.60 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.32
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 22 |
||||||
|
Part Number: CCI-07998-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$82.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
79.98
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.04
mm +/- 0.152 (Equiv. 3.348 in.) |
Approx. Loose Circlip OD (Dr)
89.48
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 64.77 mm
Clearance in Groove (C1): 69.60 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.32
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 22 |
||||||
|
Part Number: CCI-07998-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$82.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
80.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
83.50
mm + 0.35 / - 0.00 (Equiv. 3.287 in.) |
Approx. Loose Circlip OD (Dr)
85.50
mm + 1.30 / - 0.54 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 62.10 mm
Clearance in Groove (C1): 66.50 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 195 |
||||||
|
Part Number: CCI-08000-S15 (Each)
1 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$15.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 80x2.5x83.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
80.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
83.50
mm + 0.35 / - 0.00 (Equiv. 3.287 in.) |
Approx. Loose Circlip OD (Dr)
85.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 62.10 mm
Clearance in Groove (C1): 66.50 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 195 |
||||||
|
Part Number: CCI-08000-S15 (Each)
1 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$15.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
98.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.35 / - 0.00 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 79.00 mm Clearance in Groove (C1): 83.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
98.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.35 / - 0.00 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 79.00 mm Clearance in Groove (C1): 83.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.53
mm +/- 0.152 (Equiv. 3.446 in.) |
Approx. Loose Circlip OD (Dr)
92.02
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 67.31 mm Clearance in Groove (C1): 72.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.47 | ||||||
|
Part Number: CCI-08255-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Sep 06, 2026 Regular price
$188.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.53
mm +/- 0.152 (Equiv. 3.446 in.) |
Approx. Loose Circlip OD (Dr)
92.02
mm + 1.40 / - 1.40 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 67.31 mm Clearance in Groove (C1): 72.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.47 | ||||||
|
Part Number: CCI-08255-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Sep 06, 2026 Regular price
$188.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
84.99
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
90.07
mm +/- 0.152 (Equiv. 3.546 in.) |
Approx. Loose Circlip OD (Dr)
94.84
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 68.33 mm
Clearance in Groove (C1): 73.41 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.62
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 7 |
||||||
|
Part Number: CCI-08499-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$90.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
84.99
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
90.07
mm +/- 0.152 (Equiv. 3.546 in.) |
Approx. Loose Circlip OD (Dr)
94.84
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 68.33 mm
Clearance in Groove (C1): 73.41 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.62
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 7 |
||||||
|
Part Number: CCI-08499-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$90.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 85x3x88.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
85.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
88.50
mm + 0.35 / - 0.00 (Equiv. 3.484 in.) |
Approx. Loose Circlip OD (Dr)
90.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 66.90 mm
Clearance in Groove (C1): 71.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 26 |
||||||
|
Part Number: CCI-08500-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$37.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 85x3x88.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
85.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
88.50
mm + 0.35 / - 0.00 (Equiv. 3.484 in.) |
Approx. Loose Circlip OD (Dr)
90.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 66.90 mm
Clearance in Groove (C1): 71.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 26 |
||||||
|
Part Number: CCI-08500-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$37.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
88.11
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm +/- 0.152 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 175 |
||||||
|
Part Number: CCI-08811-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$92.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
88.11
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm +/- 0.152 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 175 |
||||||
|
Part Number: CCI-08811-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$92.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
88.90
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.152 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 71.12 mm Clearance in Groove (C1): 73.66 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 | ||||||
|
Part Number: CCI-08890-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Sep 06, 2026 Regular price
$245.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
88.90
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.152 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 71.12 mm Clearance in Groove (C1): 73.66 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 | ||||||
|
Part Number: CCI-08890-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Sep 06, 2026 Regular price
$245.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
