Retaining Rings - External - Round Wire

Retaining Rings -> External -> Round Wire
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 20.63x2.16x19.3 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
20.63
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
19.30
mm
+ /- 0.08
(Equiv. 0.76 in.)
Approx. Loose Circlip ID (A)
19.13
mm
Radial Wall (S) Approx.
19.30
mm
Groove Width (W)
2.21
mm
External Retaining Rings - 20.63x2.16x19.3 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 23.45    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0206-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 20.63x2.16x19.3 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
20.63
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
19.30
mm
+ /- 0.08
(Equiv. 0.76 in.)
Approx. Loose Circlip ID (A)
19.13
mm
External Retaining Rings - 20.63x2.16x19.3 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 19.30 mm    Groove Width (W): 2.21 mm    Free Outside Dia (Dr): 23.45    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0206-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 19.05x1.5x18.14 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
19.05
mm
Clip Thickness (T)
1.50
mm
+/- 0.06
(Equiv. 0.059 in.)
Groove Dia. (Dg)
18.14
mm
+ /- 0.08
(Equiv. 0.714 in.)
Approx. Loose Circlip ID (A)
17.93
mm
Radial Wall (S) Approx.
18.14
mm
Groove Width (W)
1.55
mm
External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 20.93    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Additional stock available from USA subject to Prior Sale = 218
Part Number: WRE-0191-RD-O (Each)
1 Available Now | Further orders can be expected around Wed, Aug 26, 2026
$13.68 AUD
$13.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
External Retaining Rings - 19.05x1.5x18.14 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
19.05
mm
Clip Thickness (T)
1.50
mm
+/- 0.06
(Equiv. 0.059 in.)
Groove Dia. (Dg)
18.14
mm
+ /- 0.08
(Equiv. 0.714 in.)
Approx. Loose Circlip ID (A)
17.93
mm
External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 18.14 mm    Groove Width (W): 1.55 mm    Free Outside Dia (Dr): 20.93    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Additional stock available from USA subject to Prior Sale = 218
Part Number: WRE-0191-RD-O (Each)
1 Available Now | Further orders can be expected around Wed, Aug 26, 2026
$13.68 AUD
$13.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
External Retaining Rings - 20x2x18 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
20.00
mm
Clip Thickness (T)
2.00
mm
Groove Dia. (Dg)
18.0
mm
+ 0 / - 0.50
(Equiv. 0.709 in.)
Approx. Loose Circlip ID (A)
17.7
mm
Radial Wall (S) Approx.
18.0
mm
+/- 0.10
Groove Width (W)
2.2
mm
Min.
External Retaining Rings - 20x2x18 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 21.7    Section Profile: Round Section
Deleted Item. Available while stocks last.
Part Number: WRE-0200-RD (Pack of 10)
28 units (280 pcs) Available Now | Item Discontinued - Up to 28 may be ordered online. No backorders. Please contact us if you need a larger quantity
$13.00 AUD
$22.00 AUD $13.00 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

28 units (280 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 20x2x18 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
20.00
mm
Clip Thickness (T)
2.00
mm
Groove Dia. (Dg)
18.0
mm
+ 0 / - 0.50
(Equiv. 0.709 in.)
Approx. Loose Circlip ID (A)
17.7
mm
External Retaining Rings - 20x2x18 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 18.0 mm +/- 0.10    Groove Width (W): 2.2 mm Min.   Free Outside Dia (Dr): 21.7    Section Profile: Round Section
Deleted Item. Available while stocks last.
Part Number: WRE-0200-RD (Pack of 10)
28 units (280 pcs) Available Now | Item Discontinued - Up to 28 may be ordered online. No backorders. Please contact us if you need a larger quantity
$13.00 AUD
$22.00 AUD $13.00 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

28 units (280 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
External Retaining Rings - 22.23x1.63x20.6 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
1.63
mm
Groove Dia. (Dg)
20.60
mm
Approx. Loose Circlip ID (A)
19.96
mm
Radial Wall (S) Approx.
20.60
mm
+ 0.10 / - 0.00
Groove Width (W)
1.70
mm
+ 0.10 / - 0.00
External Retaining Rings - 22.23x1.63x20.6 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 23.22    Section Profile: Round Section
Part Number: WRE-0222-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 22.23x1.63x20.6 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
1.63
mm
Groove Dia. (Dg)
20.60
mm
Approx. Loose Circlip ID (A)
19.96
mm
External Retaining Rings - 22.23x1.63x20.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 20.60 mm + 0.10 / - 0.00    Groove Width (W): 1.70 mm + 0.10 / - 0.00   Free Outside Dia (Dr): 23.22    Section Profile: Round Section
Part Number: WRE-0222-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 22.23x1.8x21.11 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
21.11
mm
+ /- 0.08
(Equiv. 0.831 in.)
Approx. Loose Circlip ID (A)
20.90
mm
Radial Wall (S) Approx.
21.11
mm
Groove Width (W)
1.85
mm

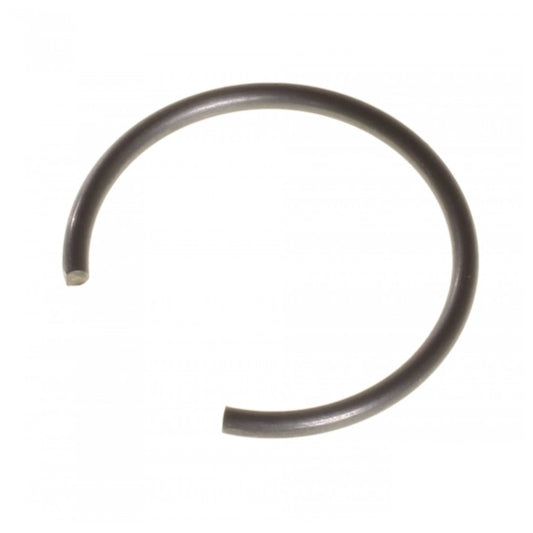

External Retaining Rings - 22.23x1.8x21.11 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 24.5    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0222-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 22.23x1.8x21.11 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
21.11
mm
+ /- 0.08
(Equiv. 0.831 in.)
Approx. Loose Circlip ID (A)
20.90
mm
External Retaining Rings - 22.23x1.8x21.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 21.11 mm    Groove Width (W): 1.85 mm    Free Outside Dia (Dr): 24.5    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0222-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 22.23x1.8x21.11 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
21.11
mm
+ /- 0.08
(Equiv. 0.831 in.)
Approx. Loose Circlip ID (A)
20.90
mm
Radial Wall (S) Approx.
21.11
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 22.23x1.8x21.11 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 24.5    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0222-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 22.23x1.8x21.11 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
21.11
mm
+ /- 0.08
(Equiv. 0.831 in.)
Approx. Loose Circlip ID (A)
20.90
mm
External Retaining Rings - 22.23x1.8x21.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 21.11 mm    Groove Width (W): 1.85 mm    Free Outside Dia (Dr): 24.5    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0222-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 22.23x2.54x20.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
20.65
mm
+ /- 0.08
(Equiv. 0.813 in.)
Approx. Loose Circlip ID (A)
20.42
mm
Radial Wall (S) Approx.
20.65
mm
Groove Width (W)
2.59
mm
External Retaining Rings - 22.23x2.54x20.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 25.5    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0222-RD-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 22.23x2.54x20.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
20.65
mm
+ /- 0.08
(Equiv. 0.813 in.)
Approx. Loose Circlip ID (A)
20.42
mm
External Retaining Rings - 22.23x2.54x20.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 20.65 mm    Groove Width (W): 2.59 mm    Free Outside Dia (Dr): 25.5    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0222-RD-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 22.23x2.54x20.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
20.65
mm
+ /- 0.08
(Equiv. 0.813 in.)
Approx. Loose Circlip ID (A)
20.42
mm
Radial Wall (S) Approx.
20.65
mm
Groove Width (W)
2.59
mm
External Retaining Rings - 22.23x2.54x20.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 25.5    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0222-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 22.23x2.54x20.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
22.23
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
20.65
mm
+ /- 0.08
(Equiv. 0.813 in.)
Approx. Loose Circlip ID (A)
20.42
mm
External Retaining Rings - 22.23x2.54x20.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 20.65 mm    Groove Width (W): 2.59 mm    Free Outside Dia (Dr): 25.5    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0222-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 23.83x1.63x22.2 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
1.63
mm
Groove Dia. (Dg)
22.20
mm
Approx. Loose Circlip ID (A)
21.54
mm
Radial Wall (S) Approx.
22.20
mm
+ 0.10 / - 0.00
Groove Width (W)
1.70
mm
+ 0.10 / - 0.00
External Retaining Rings - 23.83x1.63x22.2 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 24.8    Section Profile: Round Section
Part Number: WRE-0238-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 23.83x1.63x22.2 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
1.63
mm
Groove Dia. (Dg)
22.20
mm
Approx. Loose Circlip ID (A)
21.54
mm
External Retaining Rings - 23.83x1.63x22.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 22.20 mm + 0.10 / - 0.00    Groove Width (W): 1.70 mm + 0.10 / - 0.00   Free Outside Dia (Dr): 24.8    Section Profile: Round Section
Part Number: WRE-0238-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 23.83x1.8x22.68 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.68
mm
+ /- 0.08
(Equiv. 0.893 in.)
Approx. Loose Circlip ID (A)
22.48
mm
Radial Wall (S) Approx.
22.68
mm
Groove Width (W)
1.85
mm

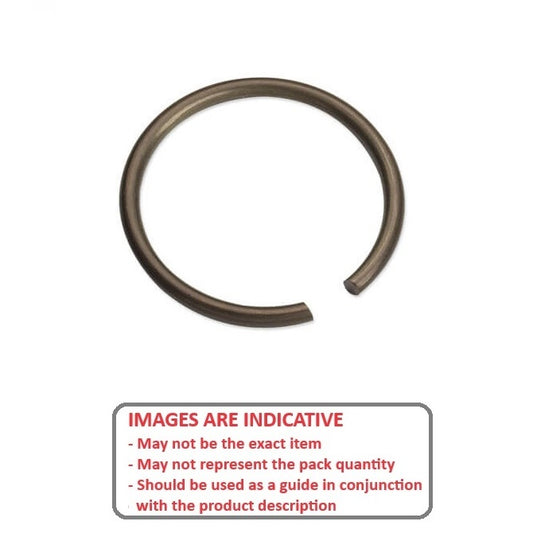

External Retaining Rings - 23.83x1.8x22.68 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 26.08    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0238-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 23.83x1.8x22.68 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.68
mm
+ /- 0.08
(Equiv. 0.893 in.)
Approx. Loose Circlip ID (A)
22.48
mm
External Retaining Rings - 23.83x1.8x22.68 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 22.68 mm    Groove Width (W): 1.85 mm    Free Outside Dia (Dr): 26.08    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0238-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 23.83x1.8x22.68 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.68
mm
+ /- 0.08
(Equiv. 0.893 in.)
Approx. Loose Circlip ID (A)
22.48
mm
Radial Wall (S) Approx.
22.68
mm
Groove Width (W)
1.85
mm
External Retaining Rings - 23.83x1.8x22.68 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 26.08    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0238-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 23.83x1.8x22.68 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
1.80
mm
+/- 0.06
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.68
mm
+ /- 0.08
(Equiv. 0.893 in.)
Approx. Loose Circlip ID (A)
22.48
mm
External Retaining Rings - 23.83x1.8x22.68 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 22.68 mm    Groove Width (W): 1.85 mm    Free Outside Dia (Dr): 26.08    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0238-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 23.83x2.54x22.23 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
22.23
mm
+ /- 0.08
(Equiv. 0.875 in.)
Approx. Loose Circlip ID (A)
22.02
mm
Radial Wall (S) Approx.
22.23
mm
Groove Width (W)
2.59
mm
External Retaining Rings - 23.83x2.54x22.23 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 27.1    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0238-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 23.83x2.54x22.23 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
22.23
mm
+ /- 0.08
(Equiv. 0.875 in.)
Approx. Loose Circlip ID (A)
22.02
mm
External Retaining Rings - 23.83x2.54x22.23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 22.23 mm    Groove Width (W): 2.59 mm    Free Outside Dia (Dr): 27.1    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0238-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 23.83x2.54x22.23 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
22.23
mm
+ /- 0.08
(Equiv. 0.875 in.)
Approx. Loose Circlip ID (A)
22.02
mm
Radial Wall (S) Approx.
22.23
mm
Groove Width (W)
2.59
mm
External Retaining Rings - 23.83x2.54x22.23 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 27.1    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0238-RD-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 23.83x2.54x22.23 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
23.83
mm
Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.)
Groove Dia. (Dg)
22.23
mm
+ /- 0.08
(Equiv. 0.875 in.)
Approx. Loose Circlip ID (A)
22.02
mm
External Retaining Rings - 23.83x2.54x22.23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 22.23 mm    Groove Width (W): 2.59 mm    Free Outside Dia (Dr): 27.1    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0238-RD-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x1.63x23.77 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
25.40
mm
Clip Thickness (T)
1.63
mm
Groove Dia. (Dg)
23.77
mm
Approx. Loose Circlip ID (A)
23.06
mm
Radial Wall (S) Approx.
23.77
mm
+ 0.10 / - 0.00
Groove Width (W)
1.70
mm
+ 0.10 / - 0.00
External Retaining Rings - 25.4x1.63x23.77 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 26.32    Section Profile: Round Section
Part Number: WRE-0254-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x1.63x23.77 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
25.40
mm
Clip Thickness (T)
1.63
mm
Groove Dia. (Dg)
23.77
mm
Approx. Loose Circlip ID (A)
23.06
mm
External Retaining Rings - 25.4x1.63x23.77 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 23.77 mm + 0.10 / - 0.00    Groove Width (W): 1.70 mm + 0.10 / - 0.00   Free Outside Dia (Dr): 26.32    Section Profile: Round Section
Part Number: WRE-0254-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x2.16x24.08 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
25.40
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
24.08
mm
+ /- 0.08
(Equiv. 0.948 in.)
Approx. Loose Circlip ID (A)
23.83
mm
Radial Wall (S) Approx.
24.08
mm
Groove Width (W)
2.21
mm
External Retaining Rings - 25.4x2.16x24.08 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 28.15    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0254-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x2.16x24.08 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
25.40
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
24.08
mm
+ /- 0.08
(Equiv. 0.948 in.)
Approx. Loose Circlip ID (A)
23.83
mm
External Retaining Rings - 25.4x2.16x24.08 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 24.08 mm    Groove Width (W): 2.21 mm    Free Outside Dia (Dr): 28.15    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0254-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x3x23.52 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
25.40
mm
Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.)
Groove Dia. (Dg)
23.52
mm
+ /- 0.08
(Equiv. 0.926 in.)
Approx. Loose Circlip ID (A)
23.29
mm
Radial Wall (S) Approx.
23.52
mm
Groove Width (W)
3.05
mm
External Retaining Rings - 25.4x3x23.52 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 29.29    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0254-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x3x23.52 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
25.40
mm
Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.)
Groove Dia. (Dg)
23.52
mm
+ /- 0.08
(Equiv. 0.926 in.)
Approx. Loose Circlip ID (A)
23.29
mm
External Retaining Rings - 25.4x3x23.52 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 23.52 mm    Groove Width (W): 3.05 mm    Free Outside Dia (Dr): 29.29    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0254-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 24x2x22 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
24.00
mm
Clip Thickness (T)
2.00
mm
Groove Dia. (Dg)
22.0
mm
+ 0 / - 0.50
(Equiv. 0.866 in.)
Approx. Loose Circlip ID (A)
21.7
mm
Radial Wall (S) Approx.
22.0
mm
+/- 0.10
Groove Width (W)
2.2
mm
Min.
External Retaining Rings - 24x2x22 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 25.7    Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 1053
Part Number: WRE-0240-RD (Pack of 5)
32 units (160 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026
$4.23 AUD
$4.23 AUD
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 32 available can be backordered.
External Retaining Rings - 24x2x22 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
24.00
mm
Clip Thickness (T)
2.00
mm
Groove Dia. (Dg)
22.0
mm
+ 0 / - 0.50
(Equiv. 0.866 in.)
Approx. Loose Circlip ID (A)
21.7
mm
External Retaining Rings - 24x2x22 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 22.0 mm +/- 0.10    Groove Width (W): 2.2 mm Min.   Free Outside Dia (Dr): 25.7    Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 1053
Part Number: WRE-0240-RD (Pack of 5)
32 units (160 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026
$4.23 AUD
$4.23 AUD
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties
Quantity Required

32 units (160 pcs) Available Now. Backorder if more than 32.
External Retaining Rings - 26.98x2.03x24.94 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
26.98
mm
Clip Thickness (T)
2.03
mm
Groove Dia. (Dg)
24.94
mm
Approx. Loose Circlip ID (A)
24.21
mm
Radial Wall (S) Approx.
24.94
mm
+ 0.10 / - 0.00
Groove Width (W)
2.11
mm
+ 0.10 / - 0.00
External Retaining Rings - 26.98x2.03x24.94 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 28.27    Section Profile: Round Section
Part Number: WRE-0270-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 26.98x2.03x24.94 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
26.98
mm
Clip Thickness (T)
2.03
mm
Groove Dia. (Dg)
24.94
mm
Approx. Loose Circlip ID (A)
24.21
mm
External Retaining Rings - 26.98x2.03x24.94 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 24.94 mm + 0.10 / - 0.00    Groove Width (W): 2.11 mm + 0.10 / - 0.00   Free Outside Dia (Dr): 28.27    Section Profile: Round Section
Part Number: WRE-0270-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x2.16x25.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
25.65
mm
+ /- 0.08
(Equiv. 1.01 in.)
Approx. Loose Circlip ID (A)
25.40
mm
Radial Wall (S) Approx.
25.65
mm
Groove Width (W)
2.21
mm
External Retaining Rings - 27x2.16x25.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 29.72    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0270-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x2.16x25.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
25.65
mm
+ /- 0.08
(Equiv. 1.01 in.)
Approx. Loose Circlip ID (A)
25.40
mm
External Retaining Rings - 27x2.16x25.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 25.65 mm    Groove Width (W): 2.21 mm    Free Outside Dia (Dr): 29.72    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0270-RD-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x2.16x25.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
25.65
mm
+ /- 0.08
(Equiv. 1.01 in.)
Approx. Loose Circlip ID (A)
25.40
mm
Radial Wall (S) Approx.
25.65
mm
Groove Width (W)
2.21
mm
External Retaining Rings - 27x2.16x25.65 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 29.72    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0270-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x2.16x25.65 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
2.16
mm
+/- 0.06
(Equiv. 0.085 in.)
Groove Dia. (Dg)
25.65
mm
+ /- 0.08
(Equiv. 1.01 in.)
Approx. Loose Circlip ID (A)
25.40
mm
External Retaining Rings - 27x2.16x25.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 25.65 mm    Groove Width (W): 2.21 mm    Free Outside Dia (Dr): 29.72    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0270-RD-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x3x25.1 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.)
Groove Dia. (Dg)
25.10
mm
+ /- 0.08
(Equiv. 0.988 in.)
Approx. Loose Circlip ID (A)
24.87
mm
Radial Wall (S) Approx.
25.10
mm
Groove Width (W)
3.05
mm
External Retaining Rings - 27x3x25.1 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 30.87    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0270-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x3x25.1 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.)
Groove Dia. (Dg)
25.10
mm
+ /- 0.08
(Equiv. 0.988 in.)
Approx. Loose Circlip ID (A)
24.87
mm
External Retaining Rings - 27x3x25.1 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 25.10 mm    Groove Width (W): 3.05 mm    Free Outside Dia (Dr): 30.87    Section Profile: Round Section    Info: Radial Assembly - Open Gap
Part Number: WRE-0270-RD-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x3x25.1 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.)
Groove Dia. (Dg)
25.10
mm
+ /- 0.08
(Equiv. 0.988 in.)
Approx. Loose Circlip ID (A)
24.87
mm
Radial Wall (S) Approx.
25.10
mm
Groove Width (W)
3.05
mm
External Retaining Rings - 27x3x25.1 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 30.87    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0270-RD-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x3x25.1 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
27.00
mm
Clip Thickness (T)
3.00
mm
+/- 0.06
(Equiv. 0.118 in.)
Groove Dia. (Dg)
25.10
mm
+ /- 0.08
(Equiv. 0.988 in.)
Approx. Loose Circlip ID (A)
24.87
mm
External Retaining Rings - 27x3x25.1 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 25.10 mm    Groove Width (W): 3.05 mm    Free Outside Dia (Dr): 30.87    Section Profile: Round Section    Info: Axial Assembly - Closed Gap
Part Number: WRE-0270-RD-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25x2x23 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
25.00
mm
Clip Thickness (T)
2.00
mm
Groove Dia. (Dg)
23.0
mm
+ 0 / - 0.50
(Equiv. 0.906 in.)
Approx. Loose Circlip ID (A)
22.7
mm
Radial Wall (S) Approx.
23.0
mm
+/- 0.10
Groove Width (W)
2.2
mm
Min.
External Retaining Rings - 25x2x23 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 26.7    Section Profile: Round Section
Part Number: WRE-0250-RD (Pack of 4000)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Mar 23, 2027
$7,223.14 AUD
$7,223.14 AUD
Priced, Stocked and Sold Per pack of 4000
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 25x2x23 mm Round Wire - Carbon Spring Steel Circlip
Shaft Diameter (Ds)
25.00
mm
Clip Thickness (T)
2.00
mm
Groove Dia. (Dg)
23.0
mm
+ 0 / - 0.50
(Equiv. 0.906 in.)
Approx. Loose Circlip ID (A)
22.7
mm
External Retaining Rings - 25x2x23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 23.0 mm +/- 0.10    Groove Width (W): 2.2 mm Min.   Free Outside Dia (Dr): 26.7    Section Profile: Round Section
Part Number: WRE-0250-RD (Pack of 4000)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Mar 23, 2027
$7,223.14 AUD
$7,223.14 AUD
Priced, Stocked and Sold Per pack of 4000
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 28.58x2.03x26.54 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
28.58
mm
Clip Thickness (T)
2.03
mm
Groove Dia. (Dg)
26.54
mm
Approx. Loose Circlip ID (A)
25.71
mm
Radial Wall (S) Approx.
26.54
mm
+ 0.13 / - 0.00
Groove Width (W)
2.11
mm
+ 0.13 / - 0.00
External Retaining Rings - 28.58x2.03x26.54 mm - Spring Steel
Material: Carbon Spring Steel    Free Outside Dia (Dr): 29.77    Section Profile: Round Section
Part Number: WRE-0286-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x2.03x26.54 mm Round Wire - Carbon Spring Steel
Shaft Diameter (Ds)
28.58
mm
Clip Thickness (T)
2.03
mm
Groove Dia. (Dg)
26.54
mm
Approx. Loose Circlip ID (A)
25.71
mm
External Retaining Rings - 28.58x2.03x26.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 26.54 mm + 0.13 / - 0.00    Groove Width (W): 2.11 mm + 0.13 / - 0.00   Free Outside Dia (Dr): 29.77    Section Profile: Round Section
Part Number: WRE-0286-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
