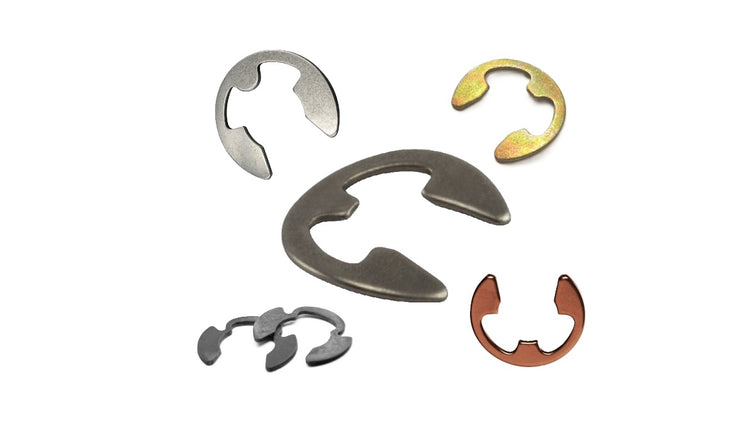

Collection: Retaining Rings - E-Clips
157 Products in this selection
Combined category including various types of E-Clips Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Miniature Bearings Australia (Minibearings)
Additional resources:
Assortment Kits
E-Clip Applicators
Additional resources:
Assortment Kits
E-Clip Applicators
A more concise listing may be found on the Smallparts store at Retaining Rings - E-Clips. Smallparts promote the most popular MBA products.
| Minimum Rec. Shaft Dia (S) | Groove Dia. (Dg) | Clip Thickness (T) | Clip OD Loose (D1) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|
|
Minimum Rec. Shaft Dia (S)
1.00
mm + 0.25 / - 0.00
(0.039 in.) |
Groove Dia. (Dg)
0.66
mm + 0.051 / - 0.000 (0.026 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
1.75
mm |
Groove Width (W)
0.31
mm |
|
|

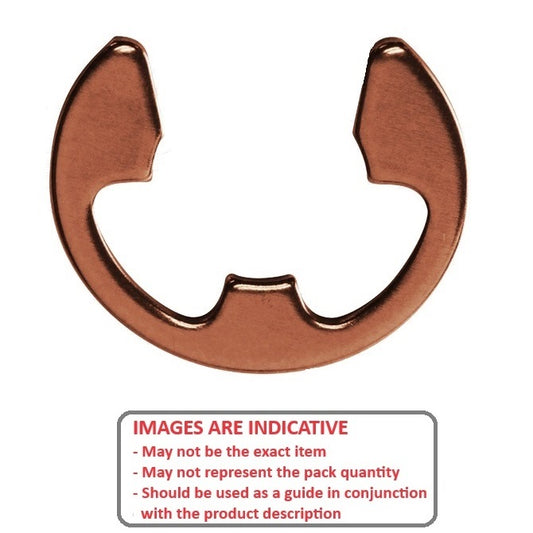

Material: Beryllium Copper
Maximum Rec. Shaft Dia (S): 1.25
Clip OD in groove (C1): 2.01 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|

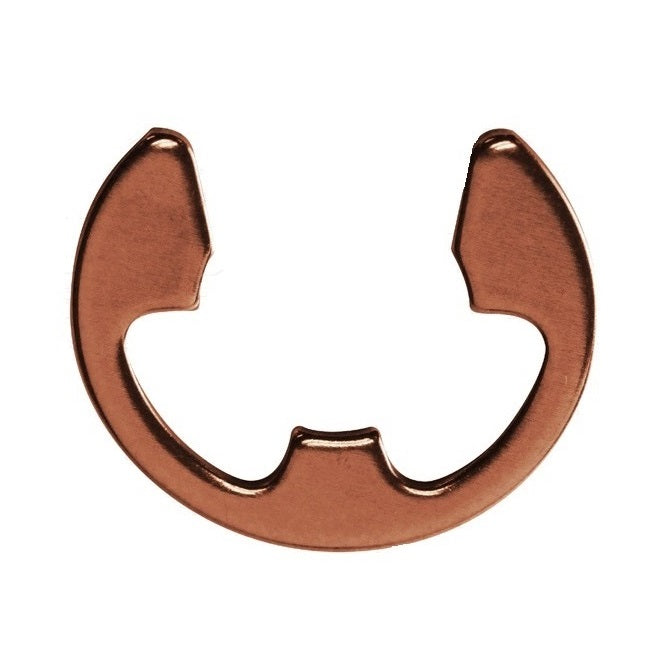

Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper
4 units (20 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
| Minimum Rec. Shaft Dia (S) | Groove Dia. (Dg) | Clip Thickness (T) | Clip OD Loose (D1) |
Indicative Image |
|
|
Minimum Rec. Shaft Dia (S)
1.00
mm + 0.25 / - 0.00 (0.039 in.) |
Groove Dia. (Dg)
0.66
mm + 0.051 / - 0.000 (0.026 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
1.75
mm |
|
|
|
Material: Beryllium Copper
Groove Width (W): 0.31 mm
Maximum Rec. Shaft Dia (S): 1.25
Clip OD in groove (C1): 2.01 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper
4 units (20 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.40
mm + 0.60 / - 0.00
(0.055 in.) |
Groove Dia. (Dg)
1.20
mm + 0.00 / - 0.06 (0.047 in.) |
Clip Thickness (T)
0.30
mm +/ - 0.02 (0.012 in.) |
Clip OD Loose (D1)
2.90
mm |
Groove Width (W)
0.34
mm |
|
|

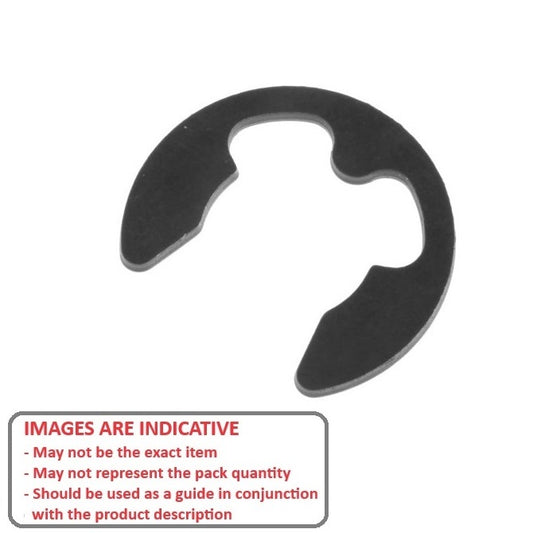

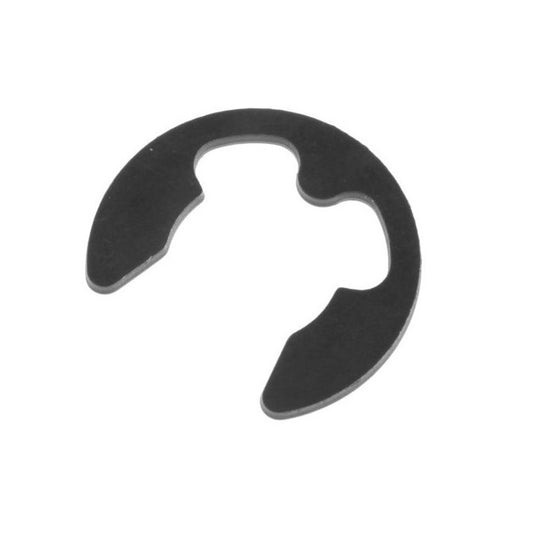

Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.00
Clip OD in groove (C1): 3.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0012-0014-C (100 Pcs) E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel
28 units (2800 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.40
mm + 0.60 / - 0.00 (0.055 in.) |
Groove Dia. (Dg)
1.20
mm + 0.00 / - 0.06 (0.047 in.) |
Clip Thickness (T)
0.30
mm +/ - 0.02 (0.012 in.) |
Clip OD Loose (D1)
2.90
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.34 mm
Maximum Rec. Shaft Dia (S): 2.00
Clip OD in groove (C1): 3.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0012-0014-C (100 Pcs) E-Clips Retaining Rings - 1.4x1.2x0.3 mm - Carbon Steel
28 units (2800 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.56
mm |
Groove Width (W)
0.31
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 3.88 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016-C (50 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel
3 units (150 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.56
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.31 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 3.88 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016-C (50 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel
3 units (150 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
|
Material: Beryllium Copper
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper
14 units (70 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$3.41 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
|
|
|
Material: Beryllium Copper
Groove Width (W): 0.30 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Beryllium Copper
14 units (70 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$3.41 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel
1 pack (100 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.30 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Carbon Steel
1 pack (100 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
|

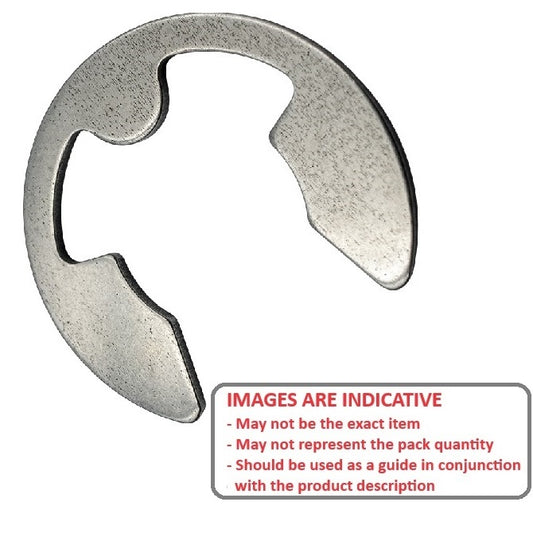

Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo
25 units (500 pcs) Available Immediately | Further orders can be expected around Fri, Aug 01, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
3.96
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.30 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 4.19 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016A-S15 (20 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm Basic - Stainless Steel Grade PH15-7 Mo
25 units (500 pcs) Available Immediately | Further orders can be expected around Fri, Aug 01, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.51
mm (0.02 in.) |
Clip OD Loose (D1)
4.76
mm |
Groove Width (W)
0.58
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016C-S15 (500 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 28, 2025 Regular price
$208.41 AUD
Regular price
Unit price
per
Per 500
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.51
mm (0.02 in.) |
Clip OD Loose (D1)
4.76
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.58 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016C-S15 (500 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 28, 2025 Regular price
$208.41 AUD
Regular price
Unit price
per
Per 500
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
(0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.51
mm (0.02 in.) |
Clip OD Loose (D1)
4.76
mm |
Groove Width (W)
0.58
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016C-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 (0.063 in.) |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 (0.052 in.) |
Clip Thickness (T)
0.51
mm (0.02 in.) |
Clip OD Loose (D1)
4.76
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.58 mm
Maximum Rec. Shaft Dia (S): 2.35
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0013-0016C-C (100 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.51 mm Basic - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00
(0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
Groove Width (W)
0.44
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-C (100 Pcs) E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Carbon Steel
79 units (7900 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.32 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00 (0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.44 mm
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-C (100 Pcs) E-Clips Retaining Rings - 2x1.5x0.4 mm Basic - Carbon Steel
79 units (7900 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.32 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00
(0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo
343 Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.00
mm + 0.50 / - 0.00 (0.079 in.) |
Groove Dia. (Dg)
1.50
mm + 0.00 / - 0.06 (0.059 in.) |
Clip Thickness (T)
0.40
mm +/ - 0.02 (0.016 in.) |
Clip OD Loose (D1)
3.85
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.44 mm
Maximum Rec. Shaft Dia (S): 2.50
Clip OD in groove (C1): 4.25 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0015-0020-S15 E-Clips Retaining Rings - 2x1.5x0.4 mm - Stainless Steel Grade PH15-7 Mo
343 Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$2.14 AUD
Regular price
Unit price
per
Each
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel
1 pack (50 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$3.14 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel
1 pack (50 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$3.14 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | More stock due: 47 (940 pcs) around Thu, Jul 03, 2025 | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.025 (0.015 in.) |
Clip OD Loose (D1)
4.75
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.08 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024A-S15 (20 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | More stock due: 47 (940 pcs) around Thu, Jul 03, 2025 | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 6.22 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel
1 pack (50 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$3.14 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 6.22 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024-C (50 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel
1 pack (50 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$3.14 AUD
Regular price
Unit price
per
Per 50
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00
(0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.052 (0.015 in.) |
Clip OD Loose (D1)
5.23
mm |
Groove Width (W)
0.51
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.56 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024D-C (1500 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 28, 2025 Regular price
$127.59 AUD
Regular price
Unit price
per
Per 1500
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.39
mm + 0.76 / - 0.00 (0.094 in.) |
Groove Dia. (Dg)
1.88
mm + 0.051 / - 0.000 (0.074 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.052 (0.015 in.) |
Clip OD Loose (D1)
5.23
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.51 mm
Maximum Rec. Shaft Dia (S): 3.15
Clip OD in groove (C1): 5.56 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0018-0024D-C (1500 Pcs) E-Clips Retaining Rings - 2.39x1.88x0.38 mm Basic - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 28, 2025 Regular price
$127.59 AUD
Regular price
Unit price
per
Per 1500
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00
(0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
Groove Width (W)
0.54
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo
6 units (60 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$12.95 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00 (0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.54 mm
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-S15 (10 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Stainless Steel Grade PH15-7 Mo
6 units (60 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$12.95 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00
(0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
Groove Width (W)
0.54
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-C (100 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel
36 units (3600 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.50
mm + 0.50 / - 0.00 (0.098 in.) |
Groove Dia. (Dg)
1.90
mm + 0.00 / - 0.06 (0.075 in.) |
Clip Thickness (T)
0.50
mm +/ - 0.02 (0.02 in.) |
Clip OD Loose (D1)
4.40
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.54 mm
Maximum Rec. Shaft Dia (S): 3.00
Clip OD in groove (C1): 4.80 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0019-0025-C (100 Pcs) E-Clips Retaining Rings - 2.5x1.9x0.5 mm - Carbon Steel
36 units (3600 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00
(0.11 in.) |
Groove Dia. (Dg)
2.18
mm + 0.051 / - 0.000 (0.086 in.) |
Clip Thickness (T)
0.56
mm +/ - 0.051 (0.022 in.) |
Clip OD Loose (D1)
7.16
mm |
Groove Width (W)
0.64
mm |
|
|
Material: Carbon Steel Zinc Plated
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 7.54 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|

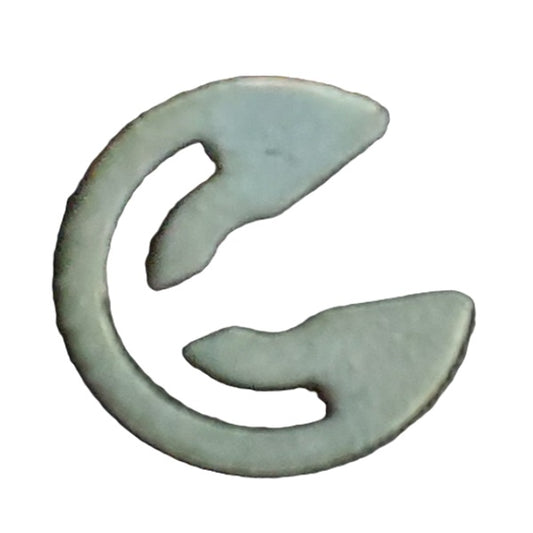

Part Number: ECL-0022-0028-CZ (20 Pcs) E-Clips Retaining Rings - 2.79x2.18x0.56 mm Basic - Carbon Steel Zinc Plated
8 units (160 pcs) Available Immediately | Further orders can be expected around Sat, Aug 09, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00 (0.11 in.) |
Groove Dia. (Dg)
2.18
mm + 0.051 / - 0.000 (0.086 in.) |
Clip Thickness (T)
0.56
mm +/ - 0.051 (0.022 in.) |
Clip OD Loose (D1)
7.16
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.64 mm
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 7.54 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0022-0028-CZ (20 Pcs) E-Clips Retaining Rings - 2.79x2.18x0.56 mm Basic - Carbon Steel Zinc Plated
8 units (160 pcs) Available Immediately | Further orders can be expected around Sat, Aug 09, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00
(0.11 in.) |
Groove Dia. (Dg)
1.98
mm + 0.051 / - 0.000 (0.078 in.) |
Clip Thickness (T)
0.51
mm +/ - 0.038 (0.02 in.) |
Clip OD Loose (D1)
10.82
mm |
Groove Width (W)
0.58
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 10.92 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|

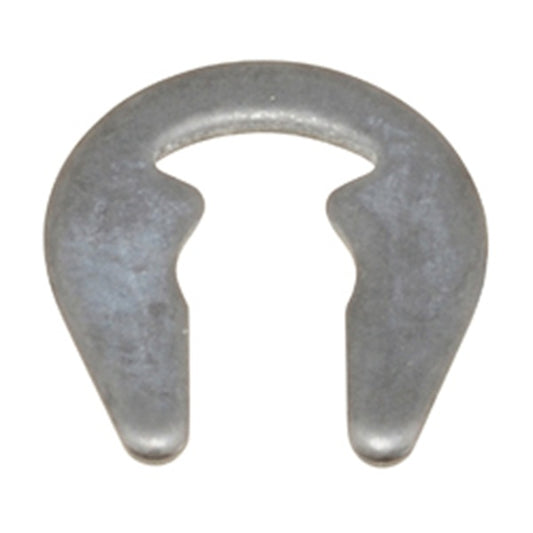

Part Number: ECL-0020-0028-C (100 Pcs) E-Clips Retaining Rings - 2.79x1.98x0.51 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 09, 2025 Regular price
$20.32 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00 (0.11 in.) |
Groove Dia. (Dg)
1.98
mm + 0.051 / - 0.000 (0.078 in.) |
Clip Thickness (T)
0.51
mm +/ - 0.038 (0.02 in.) |
Clip OD Loose (D1)
10.82
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.58 mm
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 10.92 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0020-0028-C (100 Pcs) E-Clips Retaining Rings - 2.79x1.98x0.51 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 09, 2025 Regular price
$20.32 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00
(0.11 in.) |
Groove Dia. (Dg)
2.01
mm + 0.051 / - 0.000 (0.079 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
9.53
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 9.91 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0020-0028A-C (100 Pcs) E-Clips Retaining Rings - 2.79x2.01x0.38 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
2.79
mm + 1.02 / - 0.00 (0.11 in.) |
Groove Dia. (Dg)
2.01
mm + 0.051 / - 0.000 (0.079 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
9.53
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.61 mm
Maximum Rec. Shaft Dia (S): 3.81
Clip OD in groove (C1): 9.91 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0020-0028A-C (100 Pcs) E-Clips Retaining Rings - 2.79x2.01x0.38 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00
(0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
Groove Width (W)
0.64
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$9.86 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00 (0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.64 mm
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-S15 (10 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$9.86 AUD
Regular price
Unit price
per
Per 10
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00
(0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
Groove Width (W)
0.64
mm |
|
|
Material: Carbon Steel
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-C (100 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel
23 units (2300 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.00
mm + 1.00 / - 0.00 (0.118 in.) |
Groove Dia. (Dg)
2.30
mm + 0.00 / - 0.06 (0.091 in.) |
Clip Thickness (T)
0.60
mm +/ - 0.02 (0.024 in.) |
Clip OD Loose (D1)
5.90
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.64 mm
Maximum Rec. Shaft Dia (S): 4.00
Clip OD in groove (C1): 7.30 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0023-0030-C (100 Pcs) E-Clips Retaining Rings - 3x2.3x0.6 mm - Carbon Steel
23 units (2300 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.36
mm |
|
|
Material: Carbon Steel

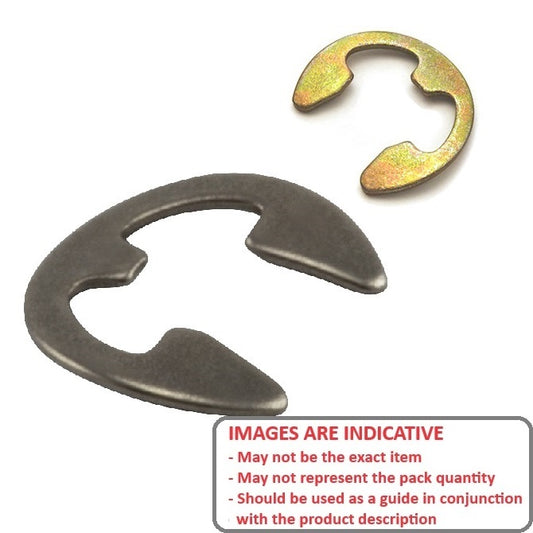

Category: Retaining Rings - E-Clips - Bowed |
|||||
|

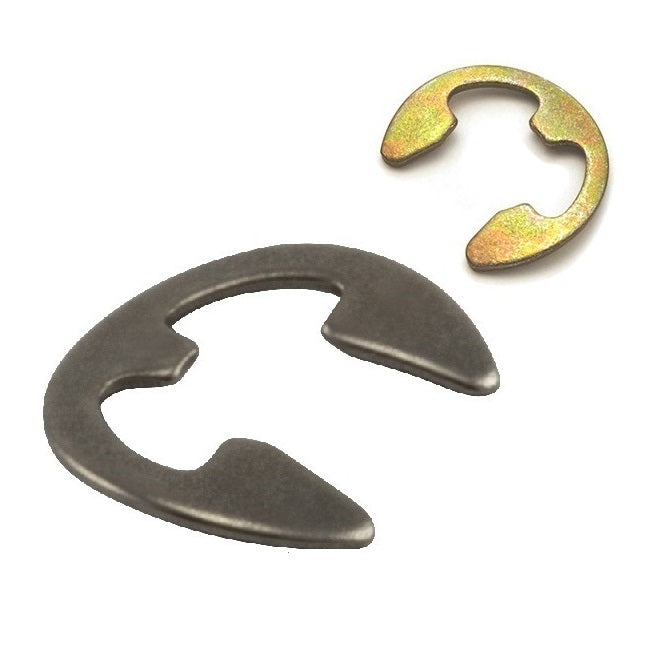

Part Number: ECB-0024-0032-C (100 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 09, 2025 Regular price
$33.05 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.36 mm
Category: Retaining Rings - E-Clips - Bowed |
|||||
|
Part Number: ECB-0024-0032-C (100 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Aug 09, 2025 Regular price
$33.05 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.56
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - E-Clips - Bowed |
|||||
|
Part Number: ECB-0024-0032-S15 (100 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$33.77 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.25
mm +/ - 0.025 (0.01 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Carbon Steel
Groove Width (W): 0.56 mm
Category: Retaining Rings - E-Clips - Bowed |
|||||
|
Part Number: ECB-0024-0032-S15 (100 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.25 mm Bowed - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jul 29, 2025 Regular price
$33.77 AUD
Regular price
Unit price
per
Per 100
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm + 1.02 / - 0.00
(0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
Groove Width (W)
0.46
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Maximum Rec. Shaft Dia (S): 4.20
Clip OD in groove (C1): 6.10 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo
89 units (1780 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
Minimum Rec. Shaft Dia (S)
3.18
mm + 1.02 / - 0.00 (0.125 in.) |
Groove Dia. (Dg)
2.41
mm + 0.051 / - 0.000 (0.095 in.) |
Clip Thickness (T)
0.38
mm +/ - 0.050 (0.015 in.) |
Clip OD Loose (D1)
5.84
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.46 mm
Maximum Rec. Shaft Dia (S): 4.20
Clip OD in groove (C1): 6.10 mm
Category: Retaining Rings - E-Clips - Basic |
|||||
|
Part Number: ECL-0024-0032A-S15 (20 Pcs) E-Clips Retaining Rings - 3.18x2.41x0.38 mm Basic - Stainless Steel Grade PH15-7 Mo
89 units (1780 pcs) Available Immediately | Further orders can be expected around Tue, Jul 29, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Per 20
|
|||||
|
|||||
