Collection: Pulleys - Metric Timing - 5.000mm Pitch - HTD

Pulleys (With Images)

Metric Timing

5.000mm Pitch

T5

272 Products in this selection

This is a combined category of HTD 5.000mm Pitch Metric Timing Pulleys.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Timing Pulleys Catalogue PDF
5mm HTD Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 5.000mm Pitch - HTD. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type	Indicative Image

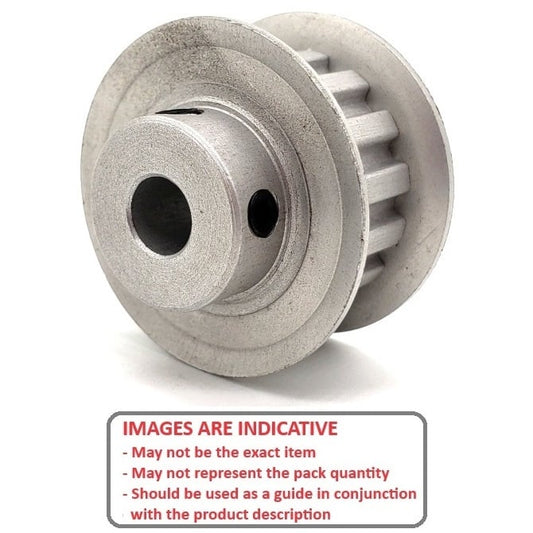

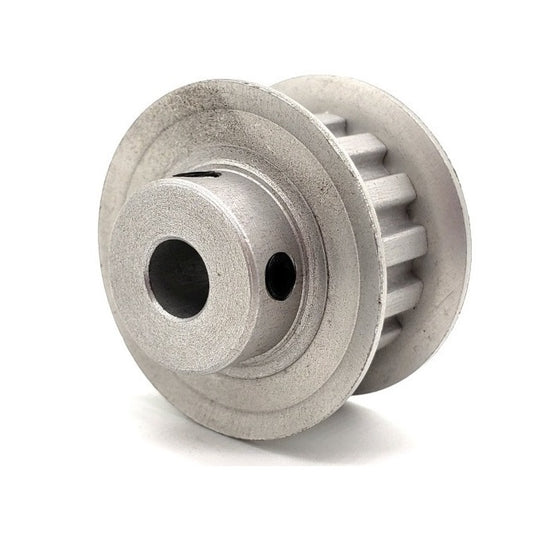

Teeth 16	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 27.8 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-016-090FF-AL-G-064 Metric Timing Pulleys - 16 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 16	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 27.8 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-016-090FF-AL-G-064 Metric Timing Pulleys - 16 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each View the product page first if you are unsure.
P-050H-016-090FF-AL-G-064 --- Metric Timing Pulleys - 16 tooth - 9x6.35 mm - Aluminium P-050H-016-090FF-AL-G-064 --- Metric Timing Pulleys - 16 tooth - 9x6.35 mm - Aluminium Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 175.0 mm	Bore (d) 25.50 mm	Bore Type 24.32
Material: Carbon Steel Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-016-175C Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $192.41 AUD Regular price Sale price $192.41 AUD Unit price per Each
Teeth 16	Max Belt Width 175.0 mm	Bore (d) 25.50 mm	Bore Type 24.32
Material: Carbon Steel Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-016-175C Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $192.41 AUD Regular price Sale price $192.41 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050H-016-175C --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel P-050H-016-175C --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Carbon Steel Regular price $192.41 AUD Regular price Sale price $192.41 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 175.0 mm	Bore (d) 25.50 mm	Bore Type 24.32
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-016-175A Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $143.86 AUD Regular price Sale price $143.86 AUD Unit price per Each
Teeth 16	Max Belt Width 175.0 mm	Bore (d) 25.50 mm	Bore Type 24.32
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-016-175A Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $143.86 AUD Regular price Sale price $143.86 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050H-016-175A --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium P-050H-016-175A --- Metric Timing Stock Pulleys - 16 tooth - 175x25.5 mm - Aluminium Regular price $143.86 AUD Regular price Sale price $143.86 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 15.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 27.8 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-016-150FF-AL-G-060 Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $38.95 AUD Regular price Sale price $38.95 AUD Unit price per Each
Teeth 16	Max Belt Width 15.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 27.8 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-016-150FF-AL-G-060 Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $38.95 AUD Regular price Sale price $38.95 AUD Unit price per Each View the product page first if you are unsure.
P-050H-016-150FF-AL-G-060 --- Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium P-050H-016-150FF-AL-G-060 --- Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium Regular price $38.95 AUD Regular price Sale price $38.95 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 15.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 25.45 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-016-150P-AL-G-060 Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each
Teeth 16	Max Belt Width 15.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 25.45 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-016-150P-AL-G-060 Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each View the product page first if you are unsure.
P-050H-016-150P-AL-G-060 --- Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium P-050H-016-150P-AL-G-060 --- Metric Timing Pulleys - 16 tooth - 15x6 mm - Aluminium Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090P-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Each
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090P-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-090P-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium P-050H-017-090P-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw 8-32 UNC x 4.8mm Long
Material: Aluminium Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090FF-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $34.95 AUD Regular price Sale price $34.95 AUD Unit price per Each
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw 8-32 UNC x 4.8mm Long Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090FF-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $34.95 AUD Regular price Sale price $34.95 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-090FF-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium P-050H-017-090FF-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Regular price $34.95 AUD Regular price Sale price $34.95 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090P-AL-G-080 Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Each
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090P-AL-G-080 Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-090P-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium P-050H-017-090P-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium Regular price $33.77 AUD Regular price Sale price $33.77 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150FF-AL-G-064 Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $38.41 AUD Regular price Sale price $38.41 AUD Unit price per Each
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150FF-AL-G-064 Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $38.41 AUD Regular price Sale price $38.41 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-150FF-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium P-050H-017-150FF-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium Regular price $38.41 AUD Regular price Sale price $38.41 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 175.0 mm	Bore (d) 27.10 mm	Bore Type 25.91
Material: Carbon Steel Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-017-175C Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $201.77 AUD Regular price Sale price $201.77 AUD Unit price per Each
Teeth 17	Max Belt Width 175.0 mm	Bore (d) 27.10 mm	Bore Type 25.91
Material: Carbon Steel Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Carbon Steel
Part Number: P-050H-017-175C Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $201.77 AUD Regular price Sale price $201.77 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050H-017-175C --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel P-050H-017-175C --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Carbon Steel Regular price $201.77 AUD Regular price Sale price $201.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 28.64 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090P-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 28.64 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090P-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-090P-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium P-050H-018-090P-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $35.95 AUD Regular price Sale price $35.95 AUD Unit price per Each
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $35.95 AUD Regular price Sale price $35.95 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-090FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium P-050H-018-090FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Regular price $35.95 AUD Regular price Sale price $35.95 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 28.64 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090P-AL-G-080 Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 28.64 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090P-AL-G-080 Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-090P-AL-G-080 --- Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium P-050H-018-090P-AL-G-080 --- Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium Regular price $36.59 AUD Regular price Sale price $36.59 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090FF-AL-G-080 Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium 2 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $26.86 AUD Regular price ~~$32.24 AUD~~ Sale price $26.86 AUD Unit price per Each
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-018-090FF-AL-G-080 Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium 2 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $26.86 AUD Regular price ~~$32.24 AUD~~ Sale price $26.86 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-090FF-AL-G-080 --- Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium Sale P-050H-018-090FF-AL-G-080 --- Metric Timing Pulleys - 18 tooth - 9x8 mm - Aluminium Regular price $26.86 AUD Regular price ~~$32.24 AUD~~ Sale price $26.86 AUD Unit price per 2 Available Now Sale
Teeth 18	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-018-150FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each
Teeth 18	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-018-150FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-150FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium P-050H-018-150FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 28.64 mm Overall Length: 27.8 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-018-150P-AL-G-064 Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.86 AUD Regular price Sale price $37.86 AUD Unit price per Each
Teeth 18	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 28.64 mm Overall Length: 27.8 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-018-150P-AL-G-064 Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.86 AUD Regular price Sale price $37.86 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-150P-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium P-050H-018-150P-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 15x6.35 mm - Aluminium Regular price $37.86 AUD Regular price Sale price $37.86 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090FF-AL-G-080 Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-017-090FF-AL-G-080 Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-090FF-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium P-050H-017-090FF-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 9x8 mm - Aluminium Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 15.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-018-150FF-AL-G-080 Metric Timing Pulleys - 18 tooth - 15x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $41.14 AUD Regular price Sale price $41.14 AUD Unit price per Each
Teeth 18	Max Belt Width 15.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-018-150FF-AL-G-080 Metric Timing Pulleys - 18 tooth - 15x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $41.14 AUD Regular price Sale price $41.14 AUD Unit price per Each View the product page first if you are unsure.
P-050H-018-150FF-AL-G-080 --- Metric Timing Pulleys - 18 tooth - 15x8 mm - Aluminium P-050H-018-150FF-AL-G-080 --- Metric Timing Pulleys - 18 tooth - 15x8 mm - Aluminium Regular price $41.14 AUD Regular price Sale price $41.14 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 27.8 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150P-AL-G-064 Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 27.8 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150P-AL-G-064 Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-150P-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium P-050H-017-150P-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 15x6.35 mm - Aluminium Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150P-AL-G-080 Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 27.04 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150P-AL-G-080 Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-150P-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium P-050H-017-150P-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150FF-AL-G-080 Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $29.23 AUD Regular price Sale price $29.23 AUD Unit price per Each
Teeth 17	Max Belt Width 15.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 27.04 mm Flange Diameter (FD): 30.2 mm Overall Length: 26.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 15mm Wide
Part Number: P-050H-017-150FF-AL-G-080 Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $29.23 AUD Regular price Sale price $29.23 AUD Unit price per Each View the product page first if you are unsure.
P-050H-017-150FF-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium P-050H-017-150FF-AL-G-080 --- Metric Timing Pulleys - 17 tooth - 15x8 mm - Aluminium Regular price $29.23 AUD Regular price Sale price $29.23 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 175.0 mm	Bore (d) 27.10 mm	Bore Type 25.91
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-017-175A Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $147.77 AUD Regular price Sale price $147.77 AUD Unit price per Each
Teeth 17	Max Belt Width 175.0 mm	Bore (d) 27.10 mm	Bore Type 25.91
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-017-175A Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $147.77 AUD Regular price Sale price $147.77 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050H-017-175A --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium P-050H-017-175A --- Metric Timing Stock Pulleys - 17 tooth - 175x27.1 mm - Aluminium Regular price $147.77 AUD Regular price Sale price $147.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 200.0 mm	Bore (d) 28.60 mm	Bore Type 27.50
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-018-200A Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Each
Teeth 18	Max Belt Width 200.0 mm	Bore (d) 28.60 mm	Bore Type 27.50
Material: Aluminium Pitch Dia. (PD): 12.70 mm Flange Diameter (FD): 19.0 mm Category: Pulleys - Metric Timing Stock - 5.000mm Pitch - HTD - Aluminium
Part Number: P-050H-018-200A Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Each View the product page first if you are unsure.
Pulleys - Metric Timin... P-050H-018-200A --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium P-050H-018-200A --- Metric Timing Stock Pulleys - 18 tooth - 200x28.6 mm - Aluminium Regular price $159.50 AUD Regular price Sale price $159.50 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 30.23 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-019-090P-AL-G-064 Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.95 AUD Regular price Sale price $37.95 AUD Unit price per Each
Teeth 19	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 30.23 mm Overall Length: 20.2 mm Category: Pulleys - Metric Timing - 5.000mm Pitch - HTD - 9mm Wide
Part Number: P-050H-019-090P-AL-G-064 Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $37.95 AUD Regular price Sale price $37.95 AUD Unit price per Each View the product page first if you are unsure.
P-050H-019-090P-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium P-050H-019-090P-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium Regular price $37.95 AUD Regular price Sale price $37.95 AUD Unit price per Out of stock! Backorder Now
