Collection: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic

Pulleys (With Images)

Metric Timing

3.000mm Pitch

HTD

9mm Wide

Metallic

205 Products in this selection

Timing Pulleys to suit HTD 3.000mm Pitch Timing Belts. Suits belts 9.0 to 9.6mm wide.
Aluminium alloy
Finished through bore ready to assemble
Set screw locking

Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 3.000mm Pitch - HTD - 9mm Wide - Metallic. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type	Indicative Image
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw

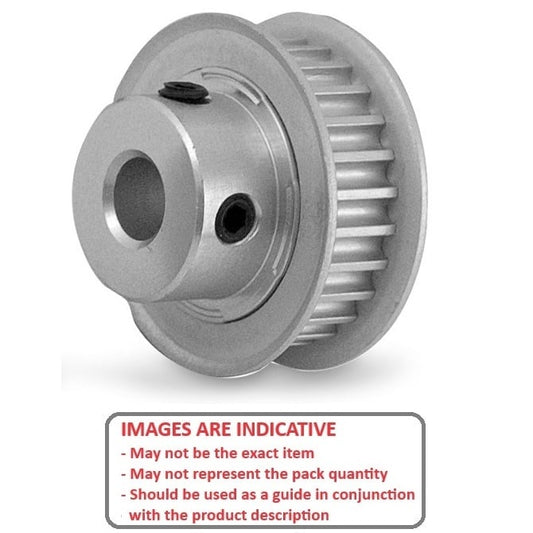

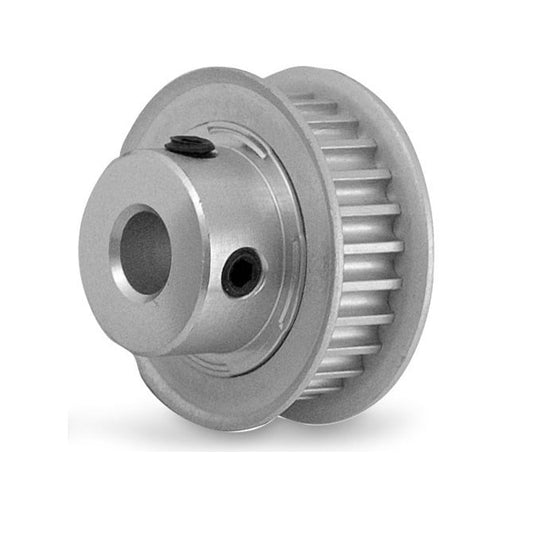

Material: Aluminium Type: 2 Pitch Dia. (PD): 34.36 mm Flange Diameter (FD): 37.4 mm Overall Length: 21.4 mm Hub Diameter (HD): 25.4 mm
Part Number: P-030H-036-090FF-AL-G-064 Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.68 AUD Regular price Sale price $53.68 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 34.36 mm Flange Diameter (FD): 37.4 mm Overall Length: 21.4 mm Hub Diameter (HD): 25.4 mm
Part Number: P-030H-036-090FF-AL-G-064 Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.68 AUD Regular price Sale price $53.68 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-AL-G-064 --- Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium P-030H-036-090FF-AL-G-064 --- Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Regular price $53.68 AUD Regular price Sale price $53.68 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 34.36 mm Overall Length: 21.4 mm Hub Diameter (HD): 25.4 mm
Part Number: P-030H-036-090P-AL-G-064 Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 34.36 mm Overall Length: 21.4 mm Hub Diameter (HD): 25.4 mm
Part Number: P-030H-036-090P-AL-G-064 Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090P-AL-G-064 --- Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium P-030H-036-090P-AL-G-064 --- Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-080 Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-080 Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-ALN-G-080 --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium P-030H-036-090FF-ALN-G-080 --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-080 Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-080 Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-AL-G-080 --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium P-030H-036-090FF-AL-G-080 --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-080K Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-080K Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-AL-G-080K --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium P-030H-036-090FF-AL-G-080K --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-080K Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 8.000 mm _{(0.315 in.)}	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-080K Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-ALN-G-080K --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium P-030H-036-090FF-ALN-G-080K --- Metric Timing Pulleys - 36 tooth - 9x8 mm - Aluminium Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-100 Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-100 Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-AL-G-100 --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium P-030H-036-090FF-AL-G-100 --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-100 Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-100 Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-ALN-G-100 --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium P-030H-036-090FF-ALN-G-100 --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-100K Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-100K Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-ALN-G-100K --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium P-030H-036-090FF-ALN-G-100K --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-100K Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 10.000 mm _{(0.394 in.)}	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hub Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm Overall Length: 23.00 mm Hub Diameter (HD): 26.000 mm
Part Number: P-030H-036-090FF-AL-G-100K Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-AL-G-100K --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium P-030H-036-090FF-AL-G-100K --- Metric Timing Pulleys - 36 tooth - 9x10 mm - Aluminium Regular price $31.05 AUD Regular price Sale price $31.05 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 12.000 mm _{(0.472 in.)}	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-120K Metric Timing Pulleys - 36 tooth - 9x12 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 12.000 mm _{(0.472 in.)}	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-120K Metric Timing Pulleys - 36 tooth - 9x12 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-ALN-G-120K --- Metric Timing Pulleys - 36 tooth - 9x12 mm - Aluminium P-030H-036-090FF-ALN-G-120K --- Metric Timing Pulleys - 36 tooth - 9x12 mm - Aluminium Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 14.000 mm _{(0.551 in.)}	Bore Type Keyed	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-140K Metric Timing Pulleys - 36 tooth - 9x14 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 14.000 mm _{(0.551 in.)}	Bore Type Keyed
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 34.38 mm Flange Diameter (FD): 40.00 mm
Part Number: P-030H-036-090FF-ALN-G-140K Metric Timing Pulleys - 36 tooth - 9x14 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-036-090FF-ALN-G-140K --- Metric Timing Pulleys - 36 tooth - 9x14 mm - Aluminium P-030H-036-090FF-ALN-G-140K --- Metric Timing Pulleys - 36 tooth - 9x14 mm - Aluminium Regular price $31.32 AUD Regular price Sale price $31.32 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 36.27 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.3 mm
Part Number: P-030H-038-090P-AL-G-060 Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Each
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 36.27 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.3 mm
Part Number: P-030H-038-090P-AL-G-060 Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-038-090P-AL-G-060 --- Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium P-030H-038-090P-AL-G-060 --- Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 36.27 mm Flange Diameter (FD): 39.4 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.3 mm
Part Number: P-030H-038-090FF-AL-G-060 Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $50.41 AUD Regular price Sale price $50.41 AUD Unit price per Each
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 36.27 mm Flange Diameter (FD): 39.4 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.3 mm
Part Number: P-030H-038-090FF-AL-G-060 Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $50.41 AUD Regular price Sale price $50.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-038-090FF-AL-G-060 --- Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium P-030H-038-090FF-AL-G-060 --- Metric Timing Pulleys - 38 tooth - 9x6 mm - Aluminium Regular price $50.41 AUD Regular price Sale price $50.41 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 36.27 mm Flange Diameter (FD): 39.3 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.4 mm
Part Number: P-030H-038-090FF-AL-G-064 Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $54.14 AUD Regular price Sale price $54.14 AUD Unit price per Each
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 36.27 mm Flange Diameter (FD): 39.3 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.4 mm
Part Number: P-030H-038-090FF-AL-G-064 Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $54.14 AUD Regular price Sale price $54.14 AUD Unit price per Each View the product page first if you are unsure.
P-030H-038-090FF-AL-G-064 --- Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium P-030H-038-090FF-AL-G-064 --- Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium Regular price $54.14 AUD Regular price Sale price $54.14 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 36.27 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.4 mm
Part Number: P-030H-038-090P-AL-G-064 Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $47.86 AUD Regular price Sale price $47.86 AUD Unit price per Each
Teeth 38	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 36.27 mm Overall Length: 21.4 mm Hub Diameter (HD): 27.4 mm
Part Number: P-030H-038-090P-AL-G-064 Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $47.86 AUD Regular price Sale price $47.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-038-090P-AL-G-064 --- Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium P-030H-038-090P-AL-G-064 --- Metric Timing Pulleys - 38 tooth - 9x6.35 mm - Aluminium Regular price $47.86 AUD Regular price Sale price $47.86 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 38.18 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090P-AL-G-060 Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Each
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 38.18 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090P-AL-G-060 Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Each View the product page first if you are unsure.
P-030H-040-090P-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium P-030H-040-090P-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 41.3 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090FF-AL-G-060 Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $51.14 AUD Regular price Sale price $51.14 AUD Unit price per Each
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 41.3 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090FF-AL-G-060 Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $51.14 AUD Regular price Sale price $51.14 AUD Unit price per Each View the product page first if you are unsure.
P-030H-040-090FF-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium P-030H-040-090FF-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 9x6 mm - Aluminium Regular price $51.14 AUD Regular price Sale price $51.14 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 41.3 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090FF-AL-G-064 Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.32 AUD Regular price Sale price $53.32 AUD Unit price per Each
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 41.3 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090FF-AL-G-064 Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.32 AUD Regular price Sale price $53.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-040-090FF-AL-G-064 --- Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium P-030H-040-090FF-AL-G-064 --- Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium Regular price $53.32 AUD Regular price Sale price $53.32 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 38.18 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090P-AL-G-064 Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Each
Teeth 40	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 38.18 mm Overall Length: 21.4 mm Hub Diameter (HD): 29.2 mm
Part Number: P-030H-040-090P-AL-G-064 Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Each View the product page first if you are unsure.
P-030H-040-090P-AL-G-064 --- Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium P-030H-040-090P-AL-G-064 --- Metric Timing Pulleys - 40 tooth - 9x6.35 mm - Aluminium Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 42.00 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.0 mm
Part Number: P-030H-044-090P-AL-G-060 Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.59 AUD Regular price Sale price $53.59 AUD Unit price per Each
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 42.00 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.0 mm
Part Number: P-030H-044-090P-AL-G-060 Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.59 AUD Regular price Sale price $53.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-044-090P-AL-G-060 --- Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium P-030H-044-090P-AL-G-060 --- Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium Regular price $53.59 AUD Regular price Sale price $53.59 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 42.00 mm Flange Diameter (FD): 45.1 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.0 mm
Part Number: P-030H-044-090FF-AL-G-060 Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Each
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 42.00 mm Flange Diameter (FD): 45.1 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.0 mm
Part Number: P-030H-044-090FF-AL-G-060 Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-044-090FF-AL-G-060 --- Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium P-030H-044-090FF-AL-G-060 --- Metric Timing Pulleys - 44 tooth - 9x6 mm - Aluminium Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 42.00 mm Flange Diameter (FD): 45.9 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.2 mm
Part Number: P-030H-044-090FF-AL-G-064 Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Each
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 42.00 mm Flange Diameter (FD): 45.9 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.2 mm
Part Number: P-030H-044-090FF-AL-G-064 Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-044-090FF-AL-G-064 --- Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium P-030H-044-090FF-AL-G-064 --- Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium Regular price $59.32 AUD Regular price Sale price $59.32 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 42.00 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.2 mm
Part Number: P-030H-044-090P-AL-G-064 Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.86 AUD Regular price Sale price $53.86 AUD Unit price per Each
Teeth 44	Max Belt Width 9.00 mm _{(0.354 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 42.00 mm Overall Length: 21.4 mm Hub Diameter (HD): 33.2 mm
Part Number: P-030H-044-090P-AL-G-064 Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $53.86 AUD Regular price Sale price $53.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-044-090P-AL-G-064 --- Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium P-030H-044-090P-AL-G-064 --- Metric Timing Pulleys - 44 tooth - 9x6.35 mm - Aluminium Regular price $53.86 AUD Regular price Sale price $53.86 AUD Unit price per Out of stock! Backorder Now
