Collection: Pulleys - Metric Timing - 2.500mm Pitch T2.5 6mm Wide

Pulleys (With Images)

Metric Timing

19 Products in this selection

Timing Pulleys to suit T Series 2.500mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.
Aluminium Alloy
Finished through bore ready to assemble
Set screw locking

Additional resources:
Timing Pulleys Catalogue PDF
T 2.5mm Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 2.500mm Pitch T2.5 6mm Wide. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image

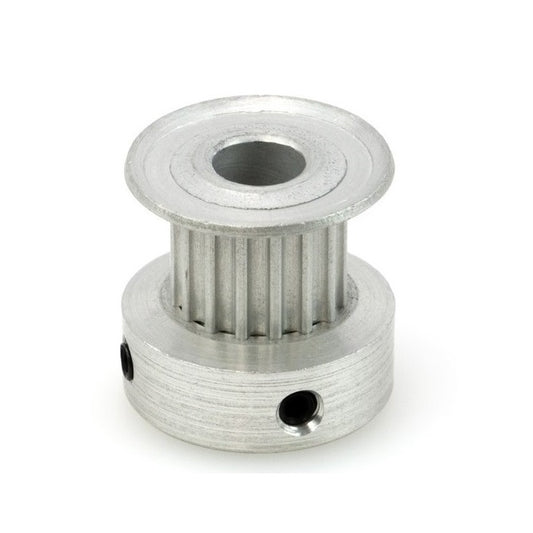

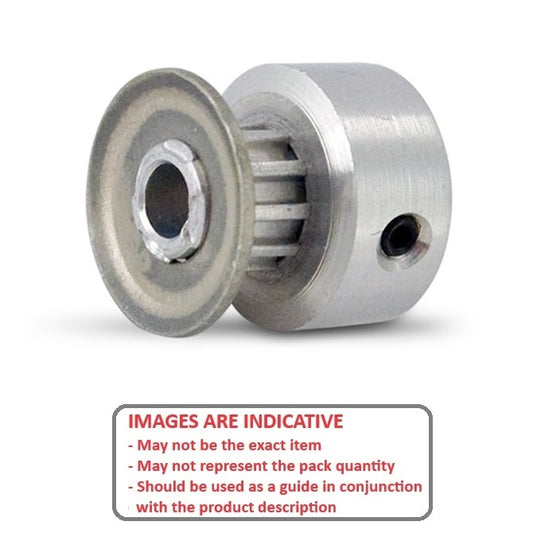

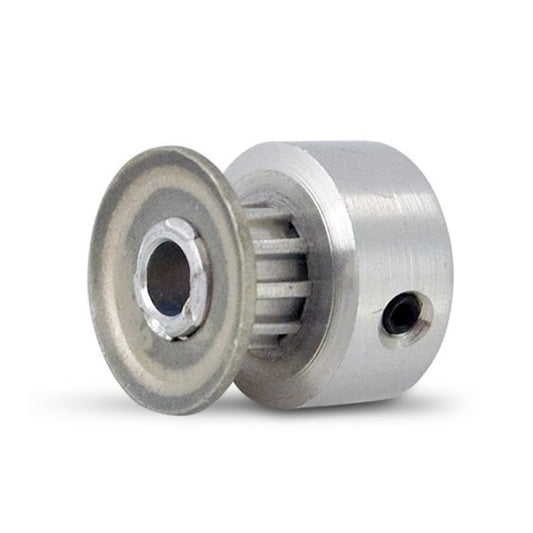

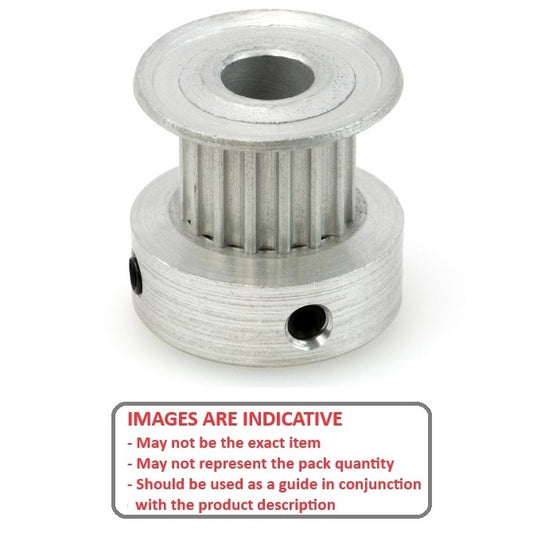

Teeth 12	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 13.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 13.0 Locking Type: Set Screw
Part Number: P-025T-012-060FH-AL-G-030 Metric Timing Pulleys - 12 tooth - 6x3 mm - Aluminium 3 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 12	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 13.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 13.0 Locking Type: Set Screw
Part Number: P-025T-012-060FH-AL-G-030 Metric Timing Pulleys - 12 tooth - 6x3 mm - Aluminium 3 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per Each View the product page first if you are unsure.
P-025T-012-060FH-AL-G-030 --- Metric Timing Pulleys - 12 tooth - 6x3 mm - Aluminium Sale P-025T-012-060FH-AL-G-030 --- Metric Timing Pulleys - 12 tooth - 6x3 mm - Aluminium Regular price $28.05 AUD Regular price ~~$33.65 AUD~~ Sale price $28.05 AUD Unit price per 3 Available Now Sale
Teeth 14	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.14 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-014-060FH-AL-G-030 Metric Timing Pulleys - 14 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Each
Teeth 14	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.14 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-014-060FH-AL-G-030 Metric Timing Pulleys - 14 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Each View the product page first if you are unsure.
P-025T-014-060FH-AL-G-030 --- Metric Timing Pulleys - 14 tooth - 6x3 mm - Aluminium P-025T-014-060FH-AL-G-030 --- Metric Timing Pulleys - 14 tooth - 6x3 mm - Aluminium Regular price $39.14 AUD Regular price Sale price $39.14 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.93 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-015-060FH-AL-G-030 Metric Timing Pulleys - 15 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $39.50 AUD Regular price Sale price $39.50 AUD Unit price per Each
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.93 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-015-060FH-AL-G-030 Metric Timing Pulleys - 15 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $39.50 AUD Regular price Sale price $39.50 AUD Unit price per Each View the product page first if you are unsure.
P-025T-015-060FH-AL-G-030 --- Metric Timing Pulleys - 15 tooth - 6x3 mm - Aluminium P-025T-015-060FH-AL-G-030 --- Metric Timing Pulleys - 15 tooth - 6x3 mm - Aluminium Regular price $39.50 AUD Regular price Sale price $39.50 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-016-060FH-AL-G-030 Metric Timing Pulleys - 16 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $39.77 AUD Regular price Sale price $39.77 AUD Unit price per Each
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Plain
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 15.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 15.0 Locking Type: Set Screw
Part Number: P-025T-016-060FH-AL-G-030 Metric Timing Pulleys - 16 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $39.77 AUD Regular price Sale price $39.77 AUD Unit price per Each View the product page first if you are unsure.
P-025T-016-060FH-AL-G-030 --- Metric Timing Pulleys - 16 tooth - 6x3 mm - Aluminium P-025T-016-060FH-AL-G-030 --- Metric Timing Pulleys - 16 tooth - 6x3 mm - Aluminium Regular price $39.77 AUD Regular price Sale price $39.77 AUD Unit price per Out of stock! Backorder Now

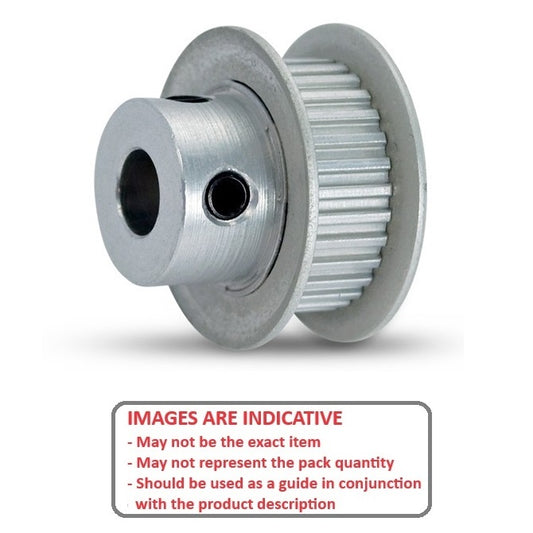

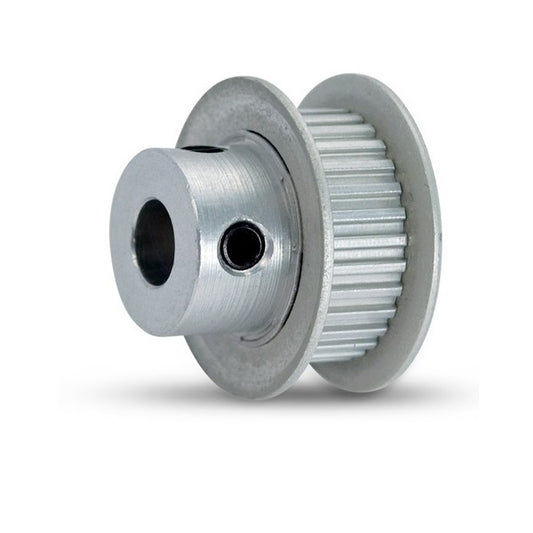

Teeth 18	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 9.0 Locking Type: Set Screw
Part Number: P-025T-018-060FF-AL-G-040 Metric Timing Pulleys - 18 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $43.86 AUD Regular price Sale price $43.86 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 9.0 Locking Type: Set Screw
Part Number: P-025T-018-060FF-AL-G-040 Metric Timing Pulleys - 18 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $43.86 AUD Regular price Sale price $43.86 AUD Unit price per Each View the product page first if you are unsure.
P-025T-018-060FF-AL-G-040 --- Metric Timing Pulleys - 18 tooth - 6x4 mm - Aluminium P-025T-018-060FF-AL-G-040 --- Metric Timing Pulleys - 18 tooth - 6x4 mm - Aluminium Regular price $43.86 AUD Regular price Sale price $43.86 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.11 mm Flange Diameter (FD): 18.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 10.0 Locking Type: Set Screw
Part Number: P-025T-019-060FF-AL-G-040 Metric Timing Pulleys - 19 tooth - 6x4 mm - Aluminium 1 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.11 mm Flange Diameter (FD): 18.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 10.0 Locking Type: Set Screw
Part Number: P-025T-019-060FF-AL-G-040 Metric Timing Pulleys - 19 tooth - 6x4 mm - Aluminium 1 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per Each View the product page first if you are unsure.
P-025T-019-060FF-AL-G-040 --- Metric Timing Pulleys - 19 tooth - 6x4 mm - Aluminium Sale P-025T-019-060FF-AL-G-040 --- Metric Timing Pulleys - 19 tooth - 6x4 mm - Aluminium Regular price $32.05 AUD Regular price ~~$38.45 AUD~~ Sale price $32.05 AUD Unit price per 1 Available Now Sale
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 11.0 Locking Type: Set Screw
Part Number: P-025T-020-060FF-AL-G-040 Metric Timing Pulleys - 20 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 11.0 Locking Type: Set Screw
Part Number: P-025T-020-060FF-AL-G-040 Metric Timing Pulleys - 20 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Each View the product page first if you are unsure.
P-025T-020-060FF-AL-G-040 --- Metric Timing Pulleys - 20 tooth - 6x4 mm - Aluminium P-025T-020-060FF-AL-G-040 --- Metric Timing Pulleys - 20 tooth - 6x4 mm - Aluminium Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.50 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 11.0 Locking Type: Set Screw
Part Number: P-025T-022-060FF-AL-G-040 Metric Timing Pulleys - 22 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.50 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 11.0 Locking Type: Set Screw
Part Number: P-025T-022-060FF-AL-G-040 Metric Timing Pulleys - 22 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Each View the product page first if you are unsure.
P-025T-022-060FF-AL-G-040 --- Metric Timing Pulleys - 22 tooth - 6x4 mm - Aluminium P-025T-022-060FF-AL-G-040 --- Metric Timing Pulleys - 22 tooth - 6x4 mm - Aluminium Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 12.0 Locking Type: Set Screw
Part Number: P-025T-024-060FF-AL-G-040 Metric Timing Pulleys - 24 tooth - 6x4 mm - Aluminium 2 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $36.68 AUD Regular price ~~$44.02 AUD~~ Sale price $36.68 AUD Unit price per Each
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 12.0 Locking Type: Set Screw
Part Number: P-025T-024-060FF-AL-G-040 Metric Timing Pulleys - 24 tooth - 6x4 mm - Aluminium 2 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $36.68 AUD Regular price ~~$44.02 AUD~~ Sale price $36.68 AUD Unit price per Each View the product page first if you are unsure.
P-025T-024-060FF-AL-G-040 --- Metric Timing Pulleys - 24 tooth - 6x4 mm - Aluminium Sale P-025T-024-060FF-AL-G-040 --- Metric Timing Pulleys - 24 tooth - 6x4 mm - Aluminium Regular price $36.68 AUD Regular price ~~$44.02 AUD~~ Sale price $36.68 AUD Unit price per 2 Available Now Sale
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.89 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 13.0 Locking Type: Set Screw
Part Number: P-025T-025-060FF-AL-G-040 Metric Timing Pulleys - 25 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Each
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.89 mm Flange Diameter (FD): 23.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 13.0 Locking Type: Set Screw
Part Number: P-025T-025-060FF-AL-G-040 Metric Timing Pulleys - 25 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Each View the product page first if you are unsure.
P-025T-025-060FF-AL-G-040 --- Metric Timing Pulleys - 25 tooth - 6x4 mm - Aluminium P-025T-025-060FF-AL-G-040 --- Metric Timing Pulleys - 25 tooth - 6x4 mm - Aluminium Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 20.68 mm Flange Diameter (FD): 25.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 14.0 Locking Type: Set Screw
Part Number: P-025T-026-060FF-AL-G-040 Metric Timing Pulleys - 26 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.14 AUD Regular price Sale price $46.14 AUD Unit price per Each
Teeth 26	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 20.68 mm Flange Diameter (FD): 25.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 14.0 Locking Type: Set Screw
Part Number: P-025T-026-060FF-AL-G-040 Metric Timing Pulleys - 26 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.14 AUD Regular price Sale price $46.14 AUD Unit price per Each View the product page first if you are unsure.
P-025T-026-060FF-AL-G-040 --- Metric Timing Pulleys - 26 tooth - 6x4 mm - Aluminium P-025T-026-060FF-AL-G-040 --- Metric Timing Pulleys - 26 tooth - 6x4 mm - Aluminium Regular price $46.14 AUD Regular price Sale price $46.14 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 14.0 Locking Type: Set Screw
Part Number: P-025T-028-060FF-AL-G-040 Metric Timing Pulleys - 28 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.32 AUD Regular price Sale price $46.32 AUD Unit price per Each
Teeth 28	Max Belt Width 6.00 mm	Bore (d) 4.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 14.0 Locking Type: Set Screw
Part Number: P-025T-028-060FF-AL-G-040 Metric Timing Pulleys - 28 tooth - 6x4 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.32 AUD Regular price Sale price $46.32 AUD Unit price per Each View the product page first if you are unsure.
P-025T-028-060FF-AL-G-040 --- Metric Timing Pulleys - 28 tooth - 6x4 mm - Aluminium P-025T-028-060FF-AL-G-040 --- Metric Timing Pulleys - 28 tooth - 6x4 mm - Aluminium Regular price $46.32 AUD Regular price Sale price $46.32 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-025T-030-060FF-AL-G-060 Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.68 AUD Regular price Sale price $46.68 AUD Unit price per Each
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-025T-030-060FF-AL-G-060 Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.68 AUD Regular price Sale price $46.68 AUD Unit price per Each View the product page first if you are unsure.
P-025T-030-060FF-AL-G-060 --- Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium P-025T-030-060FF-AL-G-060 --- Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Regular price $46.68 AUD Regular price Sale price $46.68 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 29.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-025T-032-060FF-AL-G-060 Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Each
Teeth 32	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 29.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 16.0 Locking Type: Set Screw
Part Number: P-025T-032-060FF-AL-G-060 Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Each View the product page first if you are unsure.
P-025T-032-060FF-AL-G-060 --- Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium P-025T-032-060FF-AL-G-060 --- Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 36.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 20.0 Locking Type: M3 Set Screws x 2
Part Number: P-025T-036-060FF-AL-G-060 Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium 50 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each
Teeth 36	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 36.0 mm Overall Length: 16.0 mm Hub Diameter (HD): 20.0 Locking Type: M3 Set Screws x 2
Part Number: P-025T-036-060FF-AL-G-060 Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium 50 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per Each View the product page first if you are unsure.
P-025T-036-060FF-AL-G-060 --- Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium P-025T-036-060FF-AL-G-060 --- Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium Regular price $37.23 AUD Regular price Sale price $37.23 AUD Unit price per 50 Available Now
Teeth 40	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 37.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 22.0 Locking Type: Set Screw
Part Number: P-025T-040-060FF-AL-G-060 Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Each
Teeth 40	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 37.5 mm Overall Length: 16.0 mm Hub Diameter (HD): 22.0 Locking Type: Set Screw
Part Number: P-025T-040-060FF-AL-G-060 Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Each View the product page first if you are unsure.
P-025T-040-060FF-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium P-025T-040-060FF-AL-G-060 --- Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium Regular price $48.77 AUD Regular price Sale price $48.77 AUD Unit price per Out of stock! Backorder Now

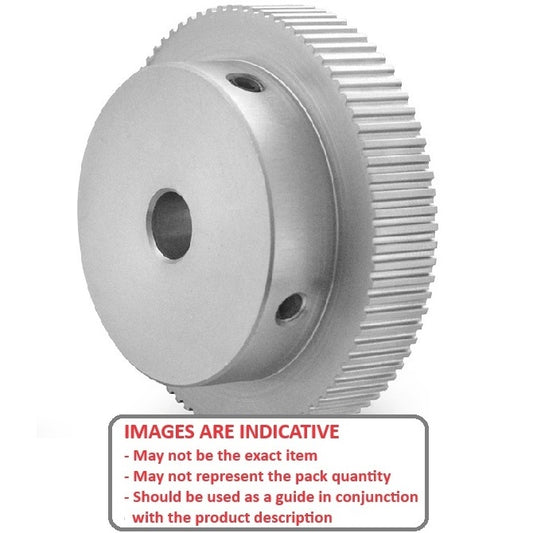

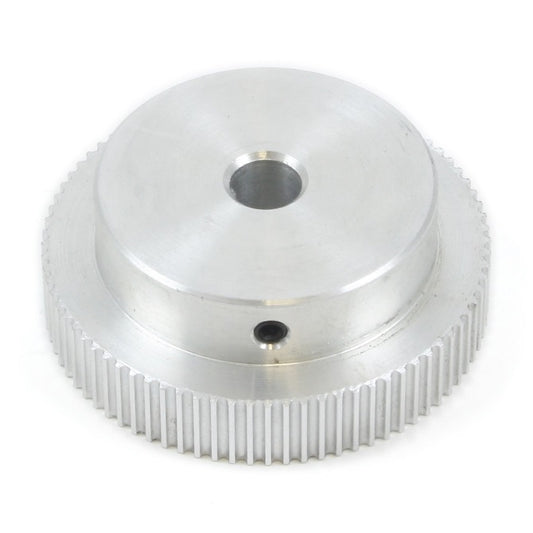

Teeth 44	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 35.00 mm Overall Length: 16.0 mm Hub Diameter (HD): 24.0 Locking Type: None
Part Number: P-025T-044-060P-AL-N-060 Metric Timing Pulleys - 44 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $50.05 AUD Regular price Sale price $50.05 AUD Unit price per Each
Teeth 44	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 35.00 mm Overall Length: 16.0 mm Hub Diameter (HD): 24.0 Locking Type: None
Part Number: P-025T-044-060P-AL-N-060 Metric Timing Pulleys - 44 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $50.05 AUD Regular price Sale price $50.05 AUD Unit price per Each View the product page first if you are unsure.
P-025T-044-060P-AL-N-060 --- Metric Timing Pulleys - 44 tooth - 6x6 mm - Aluminium P-025T-044-060P-AL-N-060 --- Metric Timing Pulleys - 44 tooth - 6x6 mm - Aluminium Regular price $50.05 AUD Regular price Sale price $50.05 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 38.18 mm Overall Length: 16.0 mm Hub Diameter (HD): 26.0 Locking Type: None
Part Number: P-025T-048-060P-AL-N-060 Metric Timing Pulleys - 48 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $51.23 AUD Regular price Sale price $51.23 AUD Unit price per Each
Teeth 48	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 38.18 mm Overall Length: 16.0 mm Hub Diameter (HD): 26.0 Locking Type: None
Part Number: P-025T-048-060P-AL-N-060 Metric Timing Pulleys - 48 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $51.23 AUD Regular price Sale price $51.23 AUD Unit price per Each View the product page first if you are unsure.
P-025T-048-060P-AL-N-060 --- Metric Timing Pulleys - 48 tooth - 6x6 mm - Aluminium P-025T-048-060P-AL-N-060 --- Metric Timing Pulleys - 48 tooth - 6x6 mm - Aluminium Regular price $51.23 AUD Regular price Sale price $51.23 AUD Unit price per Out of stock! Backorder Now
Teeth 60	Max Belt Width 6.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 47.73 mm Overall Length: 16.0 mm Hub Diameter (HD): 34.0 Locking Type: None
Part Number: P-025T-060-060P-AL-N-080 Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium 1 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $42.32 AUD Regular price ~~$50.78 AUD~~ Sale price $42.32 AUD Unit price per Each
Teeth 60	Max Belt Width 6.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Type: 3 Pitch Dia. (PD): 47.73 mm Overall Length: 16.0 mm Hub Diameter (HD): 34.0 Locking Type: None
Part Number: P-025T-060-060P-AL-N-080 Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium 1 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $42.32 AUD Regular price ~~$50.78 AUD~~ Sale price $42.32 AUD Unit price per Each View the product page first if you are unsure.
P-025T-060-060P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium Sale P-025T-060-060P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 6x8 mm - Aluminium Regular price $42.32 AUD Regular price ~~$50.78 AUD~~ Sale price $42.32 AUD Unit price per 1 Available Now Sale
