Collection: Pulleys - Metric Timing - 2.000mm Pitch - GT - 9mm Wide Through Bore

Pulleys (With Images)

Metric Timing

2.000mm Pitch

GT

3mm Wide
6mm Wide
9mm Wide Through Bore

42 Products in this selection

Timing Pulleys to suit 2mm Pitch GT Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.
Aluminium Alloy
Set Screw Locking

Additional resources:
Timing Pulleys Catalogue PDF
2mm GT Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 2.000mm Pitch - GT - 9mm Wide Through Bore. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type	Indicative Image

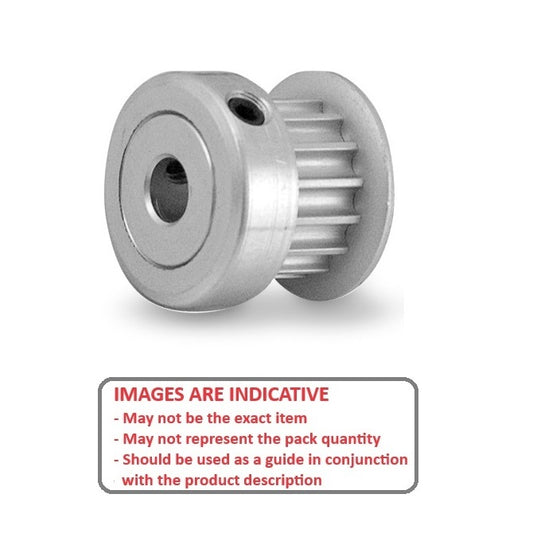

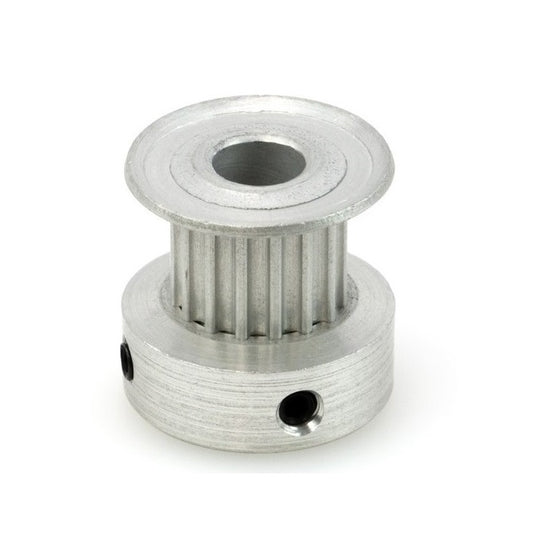

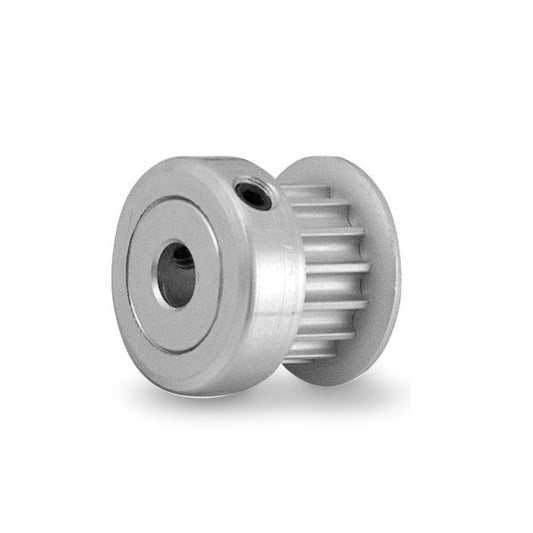

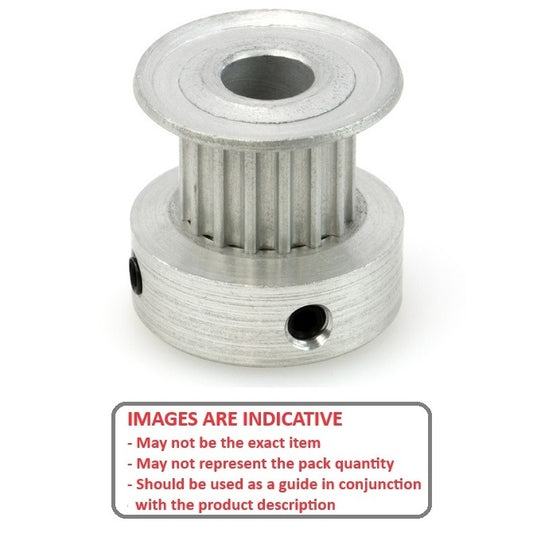

Teeth 12	Max Belt Width 9.00 mm	Bore (d) 3.175 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 7.64 mm Flange Diameter (FD): 12.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.2
Part Number: P-020G-012-090FH-AL-G-032 Metric Timing Pulleys - 12 tooth - 9x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.23 AUD Regular price Sale price $42.23 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 12	Max Belt Width 9.00 mm	Bore (d) 3.175 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 7.64 mm Flange Diameter (FD): 12.2 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.2
Part Number: P-020G-012-090FH-AL-G-032 Metric Timing Pulleys - 12 tooth - 9x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.23 AUD Regular price Sale price $42.23 AUD Unit price per Each View the product page first if you are unsure.
P-020G-012-090FH-AL-G-032 --- Metric Timing Pulleys - 12 tooth - 9x3.175 mm - Aluminium P-020G-012-090FH-AL-G-032 --- Metric Timing Pulleys - 12 tooth - 9x3.175 mm - Aluminium Regular price $42.23 AUD Regular price Sale price $42.23 AUD Unit price per Out of stock! Backorder Now
Teeth 13	Max Belt Width 9.00 mm	Bore (d) 3.175 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 8.27 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.8
Part Number: P-020G-013-090FH-AL-G-032 Metric Timing Pulleys - 13 tooth - 9x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each
Teeth 13	Max Belt Width 9.00 mm	Bore (d) 3.175 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 8.27 mm Flange Diameter (FD): 12.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.8
Part Number: P-020G-013-090FH-AL-G-032 Metric Timing Pulleys - 13 tooth - 9x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-013-090FH-AL-G-032 --- Metric Timing Pulleys - 13 tooth - 9x3.175 mm - Aluminium P-020G-013-090FH-AL-G-032 --- Metric Timing Pulleys - 13 tooth - 9x3.175 mm - Aluminium Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 9.00 mm	Bore (d) 3.175 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 8.91 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.5
Part Number: P-020G-014-090FH-AL-G-032 Metric Timing Pulleys - 14 tooth - 9x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.77 AUD Regular price Sale price $42.77 AUD Unit price per Each
Teeth 14	Max Belt Width 9.00 mm	Bore (d) 3.175 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 8.91 mm Flange Diameter (FD): 13.5 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.5
Part Number: P-020G-014-090FH-AL-G-032 Metric Timing Pulleys - 14 tooth - 9x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.77 AUD Regular price Sale price $42.77 AUD Unit price per Each View the product page first if you are unsure.
P-020G-014-090FH-AL-G-032 --- Metric Timing Pulleys - 14 tooth - 9x3.175 mm - Aluminium P-020G-014-090FH-AL-G-032 --- Metric Timing Pulleys - 14 tooth - 9x3.175 mm - Aluminium Regular price $42.77 AUD Regular price Sale price $42.77 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 15.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.0
Part Number: P-020G-015-090FH-AL-G-048 Metric Timing Pulleys - 15 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.86 AUD Regular price Sale price $42.86 AUD Unit price per Each
Teeth 15	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 15.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.0
Part Number: P-020G-015-090FH-AL-G-048 Metric Timing Pulleys - 15 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $42.86 AUD Regular price Sale price $42.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-015-090FH-AL-G-048 --- Metric Timing Pulleys - 15 tooth - 9x4.763 mm - Aluminium P-020G-015-090FH-AL-G-048 --- Metric Timing Pulleys - 15 tooth - 9x4.763 mm - Aluminium Regular price $42.86 AUD Regular price Sale price $42.86 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.18 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.7
Part Number: P-020G-016-090FH-AL-G-048 Metric Timing Pulleys - 16 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Each
Teeth 16	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 10.18 mm Flange Diameter (FD): 14.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.7
Part Number: P-020G-016-090FH-AL-G-048 Metric Timing Pulleys - 16 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Each View the product page first if you are unsure.
P-020G-016-090FH-AL-G-048 --- Metric Timing Pulleys - 16 tooth - 9x4.763 mm - Aluminium P-020G-016-090FH-AL-G-048 --- Metric Timing Pulleys - 16 tooth - 9x4.763 mm - Aluminium Regular price $47.59 AUD Regular price Sale price $47.59 AUD Unit price per Out of stock! Backorder Now

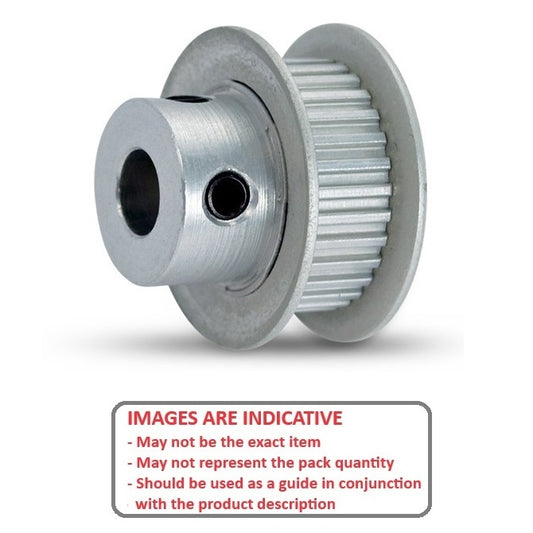

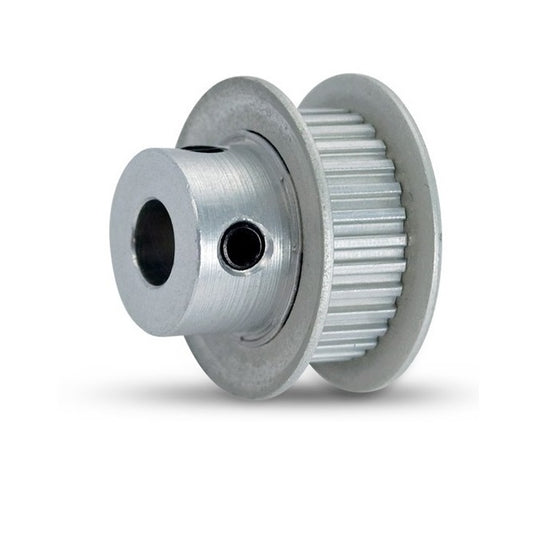

Teeth 17	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 10.82 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.5 mm Hub Diameter (HD): 7.9
Part Number: P-020G-017-090FF-AL-G-048 Metric Timing Pulleys - 17 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Each
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 10.82 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.5 mm Hub Diameter (HD): 7.9
Part Number: P-020G-017-090FF-AL-G-048 Metric Timing Pulleys - 17 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Each View the product page first if you are unsure.
P-020G-017-090FF-AL-G-048 --- Metric Timing Pulleys - 17 tooth - 9x4.763 mm - Aluminium P-020G-017-090FF-AL-G-048 --- Metric Timing Pulleys - 17 tooth - 9x4.763 mm - Aluminium Regular price $43.50 AUD Regular price Sale price $43.50 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.82 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1
Part Number: P-020G-017-090FH-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Each
Teeth 17	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 10.82 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1
Part Number: P-020G-017-090FH-AL-G-064 Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-017-090FH-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium P-020G-017-090FH-AL-G-064 --- Metric Timing Pulleys - 17 tooth - 9x6.35 mm - Aluminium Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.5 mm Hub Diameter (HD): 7.9
Part Number: P-020G-018-090FF-AL-G-048 Metric Timing Pulleys - 18 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $44.68 AUD Regular price Sale price $44.68 AUD Unit price per Each
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.5 mm Hub Diameter (HD): 7.9
Part Number: P-020G-018-090FF-AL-G-048 Metric Timing Pulleys - 18 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $44.68 AUD Regular price Sale price $44.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-018-090FF-AL-G-048 --- Metric Timing Pulleys - 18 tooth - 9x4.763 mm - Aluminium P-020G-018-090FF-AL-G-048 --- Metric Timing Pulleys - 18 tooth - 9x4.763 mm - Aluminium Regular price $44.68 AUD Regular price Sale price $44.68 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1
Part Number: P-020G-018-090FH-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $44.77 AUD Regular price Sale price $44.77 AUD Unit price per Each
Teeth 18	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1
Part Number: P-020G-018-090FH-AL-G-064 Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $44.77 AUD Regular price Sale price $44.77 AUD Unit price per Each View the product page first if you are unsure.
P-020G-018-090FH-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium P-020G-018-090FH-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 9x6.35 mm - Aluminium Regular price $44.77 AUD Regular price Sale price $44.77 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.09 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.5 mm Hub Diameter (HD): 8.6
Part Number: P-020G-019-090FF-AL-G-048 Metric Timing Pulleys - 19 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Each
Teeth 19	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 12.09 mm Flange Diameter (FD): 16.1 mm Overall Length: 19.5 mm Hub Diameter (HD): 8.6
Part Number: P-020G-019-090FF-AL-G-048 Metric Timing Pulleys - 19 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Each View the product page first if you are unsure.
P-020G-019-090FF-AL-G-048 --- Metric Timing Pulleys - 19 tooth - 9x4.763 mm - Aluminium P-020G-019-090FF-AL-G-048 --- Metric Timing Pulleys - 19 tooth - 9x4.763 mm - Aluminium Regular price $45.32 AUD Regular price Sale price $45.32 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.09 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1
Part Number: P-020G-019-090FH-AL-G-064 Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium 3 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each
Teeth 19	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 12.09 mm Flange Diameter (FD): 16.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 16.1
Part Number: P-020G-019-090FH-AL-G-064 Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium 3 Available Immediately \| Further orders can be expected around Fri, Jun 27, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each View the product page first if you are unsure.
P-020G-019-090FH-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium P-020G-019-090FH-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 9x6.35 mm - Aluminium Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per 3 Available Now
Teeth 20	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 19.5 mm Hub Diameter (HD): 9.3
Part Number: P-020G-020-090FF-AL-G-048 Metric Timing Pulleys - 20 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $50.50 AUD Regular price Sale price $50.50 AUD Unit price per Each
Teeth 20	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 19.5 mm Hub Diameter (HD): 9.3
Part Number: P-020G-020-090FF-AL-G-048 Metric Timing Pulleys - 20 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $50.50 AUD Regular price Sale price $50.50 AUD Unit price per Each View the product page first if you are unsure.
P-020G-020-090FF-AL-G-048 --- Metric Timing Pulleys - 20 tooth - 9x4.763 mm - Aluminium P-020G-020-090FF-AL-G-048 --- Metric Timing Pulleys - 20 tooth - 9x4.763 mm - Aluminium Regular price $50.50 AUD Regular price Sale price $50.50 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.4
Part Number: P-020G-020-090FH-AL-G-064 Metric Timing Pulleys - 20 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $50.86 AUD Regular price Sale price $50.86 AUD Unit price per Each
Teeth 20	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 17.4
Part Number: P-020G-020-090FH-AL-G-064 Metric Timing Pulleys - 20 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $50.86 AUD Regular price Sale price $50.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-020-090FH-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm - Aluminium P-020G-020-090FH-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 9x6.35 mm - Aluminium Regular price $50.86 AUD Regular price Sale price $50.86 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 18.3 mm Overall Length: 19.5 mm Hub Diameter (HD): 10.0
Part Number: P-020G-021-090FF-AL-G-048 Metric Timing Pulleys - 21 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $47.41 AUD Regular price Sale price $47.41 AUD Unit price per Each
Teeth 21	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 18.3 mm Overall Length: 19.5 mm Hub Diameter (HD): 10.0
Part Number: P-020G-021-090FF-AL-G-048 Metric Timing Pulleys - 21 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $47.41 AUD Regular price Sale price $47.41 AUD Unit price per Each View the product page first if you are unsure.
P-020G-021-090FF-AL-G-048 --- Metric Timing Pulleys - 21 tooth - 9x4.763 mm - Aluminium P-020G-021-090FF-AL-G-048 --- Metric Timing Pulleys - 21 tooth - 9x4.763 mm - Aluminium Regular price $47.41 AUD Regular price Sale price $47.41 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 18.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.3
Part Number: P-020G-021-090FH-AL-G-064 Metric Timing Pulleys - 21 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $47.68 AUD Regular price Sale price $47.68 AUD Unit price per Each
Teeth 21	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 18.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.3
Part Number: P-020G-021-090FH-AL-G-064 Metric Timing Pulleys - 21 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $47.68 AUD Regular price Sale price $47.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-021-090FH-AL-G-064 --- Metric Timing Pulleys - 21 tooth - 9x6.35 mm - Aluminium P-020G-021-090FH-AL-G-064 --- Metric Timing Pulleys - 21 tooth - 9x6.35 mm - Aluminium Regular price $47.68 AUD Regular price Sale price $47.68 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 19.5 mm Hub Diameter (HD): 10.0
Part Number: P-020G-022-090FF-AL-G-048 Metric Timing Pulleys - 22 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Each
Teeth 22	Max Belt Width 9.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 19.5 mm Hub Diameter (HD): 10.0
Part Number: P-020G-022-090FF-AL-G-048 Metric Timing Pulleys - 22 tooth - 9x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Each View the product page first if you are unsure.
P-020G-022-090FF-AL-G-048 --- Metric Timing Pulleys - 22 tooth - 9x4.763 mm - Aluminium P-020G-022-090FF-AL-G-048 --- Metric Timing Pulleys - 22 tooth - 9x4.763 mm - Aluminium Regular price $51.59 AUD Regular price Sale price $51.59 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.8
Part Number: P-020G-022-090FH-AL-G-064 Metric Timing Pulleys - 22 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $51.77 AUD Regular price Sale price $51.77 AUD Unit price per Each
Teeth 22	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 1 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 18.8
Part Number: P-020G-022-090FH-AL-G-064 Metric Timing Pulleys - 22 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $51.77 AUD Regular price Sale price $51.77 AUD Unit price per Each View the product page first if you are unsure.
P-020G-022-090FH-AL-G-064 --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm - Aluminium P-020G-022-090FH-AL-G-064 --- Metric Timing Pulleys - 22 tooth - 9x6.35 mm - Aluminium Regular price $51.77 AUD Regular price Sale price $51.77 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2
Part Number: P-020G-024-090FF-AL-G-064 Metric Timing Pulleys - 24 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $54.32 AUD Regular price Sale price $54.32 AUD Unit price per Each
Teeth 24	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2
Part Number: P-020G-024-090FF-AL-G-064 Metric Timing Pulleys - 24 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $54.32 AUD Regular price Sale price $54.32 AUD Unit price per Each View the product page first if you are unsure.
P-020G-024-090FF-AL-G-064 --- Metric Timing Pulleys - 24 tooth - 9x6.35 mm - Aluminium P-020G-024-090FF-AL-G-064 --- Metric Timing Pulleys - 24 tooth - 9x6.35 mm - Aluminium Regular price $54.32 AUD Regular price Sale price $54.32 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9
Part Number: P-020G-025-090FF-AL-G-064 Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $54.41 AUD Regular price Sale price $54.41 AUD Unit price per Each
Teeth 25	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9
Part Number: P-020G-025-090FF-AL-G-064 Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $54.41 AUD Regular price Sale price $54.41 AUD Unit price per Each View the product page first if you are unsure.
P-020G-025-090FF-AL-G-064 --- Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium P-020G-025-090FF-AL-G-064 --- Metric Timing Pulleys - 25 tooth - 9x6.35 mm - Aluminium Regular price $54.41 AUD Regular price Sale price $54.41 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 16.54 mm Flange Diameter (FD): 21.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.5
Part Number: P-020G-026-090FF-AL-G-064 Metric Timing Pulleys - 26 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Each
Teeth 26	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 16.54 mm Flange Diameter (FD): 21.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.5
Part Number: P-020G-026-090FF-AL-G-064 Metric Timing Pulleys - 26 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Each View the product page first if you are unsure.
P-020G-026-090FF-AL-G-064 --- Metric Timing Pulleys - 26 tooth - 9x6.35 mm - Aluminium P-020G-026-090FF-AL-G-064 --- Metric Timing Pulleys - 26 tooth - 9x6.35 mm - Aluminium Regular price $54.59 AUD Regular price Sale price $54.59 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.82 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Hub Diameter (HD): 12.6
Part Number: P-020G-028-090FF-AL-G-064 Metric Timing Pulleys - 28 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $57.14 AUD Regular price Sale price $57.14 AUD Unit price per Each
Teeth 28	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 17.82 mm Flange Diameter (FD): 22.7 mm Overall Length: 20.6 mm Hub Diameter (HD): 12.6
Part Number: P-020G-028-090FF-AL-G-064 Metric Timing Pulleys - 28 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $57.14 AUD Regular price Sale price $57.14 AUD Unit price per Each View the product page first if you are unsure.
P-020G-028-090FF-AL-G-064 --- Metric Timing Pulleys - 28 tooth - 9x6.35 mm - Aluminium P-020G-028-090FF-AL-G-064 --- Metric Timing Pulleys - 28 tooth - 9x6.35 mm - Aluminium Regular price $57.14 AUD Regular price Sale price $57.14 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 24.3 mm Overall Length: 20.6 mm Hub Diameter (HD): 13.9
Part Number: P-020G-030-090FF-AL-G-064 Metric Timing Pulleys - 30 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $60.59 AUD Regular price Sale price $60.59 AUD Unit price per Each
Teeth 30	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 24.3 mm Overall Length: 20.6 mm Hub Diameter (HD): 13.9
Part Number: P-020G-030-090FF-AL-G-064 Metric Timing Pulleys - 30 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $60.59 AUD Regular price Sale price $60.59 AUD Unit price per Each View the product page first if you are unsure.
P-020G-030-090FF-AL-G-064 --- Metric Timing Pulleys - 30 tooth - 9x6.35 mm - Aluminium P-020G-030-090FF-AL-G-064 --- Metric Timing Pulleys - 30 tooth - 9x6.35 mm - Aluminium Regular price $60.59 AUD Regular price Sale price $60.59 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 20.36 mm Flange Diameter (FD): 25.4 mm Overall Length: 20.6 mm Hub Diameter (HD): 15.2
Part Number: P-020G-032-090FF-AL-G-064 Metric Timing Pulleys - 32 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $60.95 AUD Regular price Sale price $60.95 AUD Unit price per Each
Teeth 32	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 20.36 mm Flange Diameter (FD): 25.4 mm Overall Length: 20.6 mm Hub Diameter (HD): 15.2
Part Number: P-020G-032-090FF-AL-G-064 Metric Timing Pulleys - 32 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $60.95 AUD Regular price Sale price $60.95 AUD Unit price per Each View the product page first if you are unsure.
P-020G-032-090FF-AL-G-064 --- Metric Timing Pulleys - 32 tooth - 9x6.35 mm - Aluminium P-020G-032-090FF-AL-G-064 --- Metric Timing Pulleys - 32 tooth - 9x6.35 mm - Aluminium Regular price $60.95 AUD Regular price Sale price $60.95 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 28.7 mm Overall Length: 21.4 mm Hub Diameter (HD): 17.2
Part Number: P-020G-036-090FF-AL-G-064 Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $62.68 AUD Regular price Sale price $62.68 AUD Unit price per Each
Teeth 36	Max Belt Width 9.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 28.7 mm Overall Length: 21.4 mm Hub Diameter (HD): 17.2
Part Number: P-020G-036-090FF-AL-G-064 Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $62.68 AUD Regular price Sale price $62.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-036-090FF-AL-G-064 --- Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium P-020G-036-090FF-AL-G-064 --- Metric Timing Pulleys - 36 tooth - 9x6.35 mm - Aluminium Regular price $62.68 AUD Regular price Sale price $62.68 AUD Unit price per Out of stock! Backorder Now
