Collection: Belts - Timing 5.000mm Pitch - HTD - 15mm Wide - Single Sided

Belts (With Images)

Timing 5.000mm Pitch

HTD

15mm Wide

Double Sided
Single Sided

226 Products in this selection

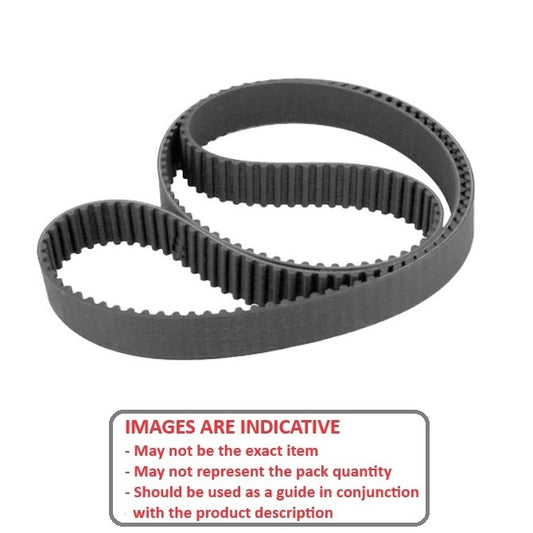

HTD Series Metric Timing Belts.
Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Tooth Height (H) - 2.08mm.
Belt Height (W) - 3.81mm.
Pitch (P) - 5.000mm

Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
5mm HTD Timing Pulleys

A more concise listing may be found on the Smallparts store at Belts - Timing 5.000mm Pitch - HTD - 15mm Wide - Single Sided. Smallparts promote the most popular MBA products.

Teeth	Length	Width	Reinforcement	Appearance	Indicative Image
Teeth 624	Length 3120 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0624-0150-NFB Timing 5.000mm Pitch Belts - 624 tooth - 3120x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $150.68 AUD Regular price Sale price $150.68 AUD Unit price per Each
Teeth	Length	Width	Indicative Image
Teeth 624	Length 3120 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0624-0150-NFB Timing 5.000mm Pitch Belts - 624 tooth - 3120x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $150.68 AUD Regular price Sale price $150.68 AUD Unit price per Each View the product page first if you are unsure.
B-050H-0624-0150-NFB --- Timing 5.000mm Pitch Belts - 624 tooth - 3120x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0624-0150-NFB --- Timing 5.000mm Pitch Belts - 624 tooth - 3120x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $150.68 AUD Regular price Sale price $150.68 AUD Unit price per Out of stock! Backorder Now
Teeth 634	Length 3170 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0634-0150-NFB Timing 5.000mm Pitch Belts - 634 tooth - 3170x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $152.86 AUD Regular price Sale price $152.86 AUD Unit price per Each
Teeth 634	Length 3170 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0634-0150-NFB Timing 5.000mm Pitch Belts - 634 tooth - 3170x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $152.86 AUD Regular price Sale price $152.86 AUD Unit price per Each View the product page first if you are unsure.
B-050H-0634-0150-NFB --- Timing 5.000mm Pitch Belts - 634 tooth - 3170x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0634-0150-NFB --- Timing 5.000mm Pitch Belts - 634 tooth - 3170x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $152.86 AUD Regular price Sale price $152.86 AUD Unit price per Out of stock! Backorder Now
Teeth 651	Length 3255 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-050H-0651-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 651 tooth - 3255x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $121.41 AUD Regular price Sale price $121.41 AUD Unit price per Per 2
Teeth 651	Length 3255 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-050H-0651-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 651 tooth - 3255x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $121.41 AUD Regular price Sale price $121.41 AUD Unit price per Per 2 View the product page first if you are unsure.
B-050H-0651-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 651 tooth - 3255x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0651-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 651 tooth - 3255x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $121.41 AUD Regular price Sale price $121.41 AUD Unit price per Out of stock! Backorder Now
Teeth 672	Length 3360 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-050H-0672-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 672 tooth - 3360x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $125.14 AUD Regular price Sale price $125.14 AUD Unit price per Per 2
Teeth 672	Length 3360 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-050H-0672-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 672 tooth - 3360x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $125.14 AUD Regular price Sale price $125.14 AUD Unit price per Per 2 View the product page first if you are unsure.
B-050H-0672-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 672 tooth - 3360x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0672-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 672 tooth - 3360x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $125.14 AUD Regular price Sale price $125.14 AUD Unit price per Out of stock! Backorder Now
Teeth 686	Length 3430 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0686-0150-NFB Timing 5.000mm Pitch Belts - 686 tooth - 3430x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $167.23 AUD Regular price Sale price $167.23 AUD Unit price per Each
Teeth 686	Length 3430 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0686-0150-NFB Timing 5.000mm Pitch Belts - 686 tooth - 3430x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $167.23 AUD Regular price Sale price $167.23 AUD Unit price per Each View the product page first if you are unsure.
B-050H-0686-0150-NFB --- Timing 5.000mm Pitch Belts - 686 tooth - 3430x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0686-0150-NFB --- Timing 5.000mm Pitch Belts - 686 tooth - 3430x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $167.23 AUD Regular price Sale price $167.23 AUD Unit price per Out of stock! Backorder Now
Teeth 694	Length 3470 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-050H-0694-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 694 tooth - 3470x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $129.05 AUD Regular price Sale price $129.05 AUD Unit price per Per 2
Teeth 694	Length 3470 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-050H-0694-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 694 tooth - 3470x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $129.05 AUD Regular price Sale price $129.05 AUD Unit price per Per 2 View the product page first if you are unsure.
B-050H-0694-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 694 tooth - 3470x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0694-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 694 tooth - 3470x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $129.05 AUD Regular price Sale price $129.05 AUD Unit price per Out of stock! Backorder Now
Teeth 732	Length 3660 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-050H-0732-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 732 tooth - 3660x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $135.77 AUD Regular price Sale price $135.77 AUD Unit price per Per 2
Teeth 732	Length 3660 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-050H-0732-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 732 tooth - 3660x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $135.77 AUD Regular price Sale price $135.77 AUD Unit price per Per 2 View the product page first if you are unsure.
B-050H-0732-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 732 tooth - 3660x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0732-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 732 tooth - 3660x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $135.77 AUD Regular price Sale price $135.77 AUD Unit price per Out of stock! Backorder Now
Teeth 754	Length 3770 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-050H-0754-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 754 tooth - 3770x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $139.77 AUD Regular price Sale price $139.77 AUD Unit price per Per 2
Teeth 754	Length 3770 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-050H-0754-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 754 tooth - 3770x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $139.77 AUD Regular price Sale price $139.77 AUD Unit price per Per 2 View the product page first if you are unsure.
B-050H-0754-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 754 tooth - 3770x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0754-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 754 tooth - 3770x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $139.77 AUD Regular price Sale price $139.77 AUD Unit price per Out of stock! Backorder Now
Teeth 760	Length 3800 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0760-0150-NFB Timing 5.000mm Pitch Belts - 760 tooth - 3800x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $181.68 AUD Regular price Sale price $181.68 AUD Unit price per Each
Teeth 760	Length 3800 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 4740 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C
Part Number: B-050H-0760-0150-NFB Timing 5.000mm Pitch Belts - 760 tooth - 3800x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $181.68 AUD Regular price Sale price $181.68 AUD Unit price per Each View the product page first if you are unsure.
B-050H-0760-0150-NFB --- Timing 5.000mm Pitch Belts - 760 tooth - 3800x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0760-0150-NFB --- Timing 5.000mm Pitch Belts - 760 tooth - 3800x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $181.68 AUD Regular price Sale price $181.68 AUD Unit price per Out of stock! Backorder Now
Teeth 852	Length 4260 mm	Width 15.0 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords
Part Number: B-050H-0852-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 852 tooth - 4260x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $157.14 AUD Regular price Sale price $157.14 AUD Unit price per Per 2
Teeth 852	Length 4260 mm	Width 15.0 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black
Part Number: B-050H-0852-0150-NFB (2 Pcs) Timing 5.000mm Pitch Belts - 852 tooth - 4260x15 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 14, 2025 Regular price $157.14 AUD Regular price Sale price $157.14 AUD Unit price per Per 2 View the product page first if you are unsure.
B-050H-0852-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 852 tooth - 4260x15 mm - Nylon Covered Neoprene with Fibreglass Cords B-050H-0852-0150-NFB (2 Pcs) --- Timing 5.000mm Pitch Belts - 852 tooth - 4260x15 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $157.14 AUD Regular price Sale price $157.14 AUD Unit price per Out of stock! Backorder Now
