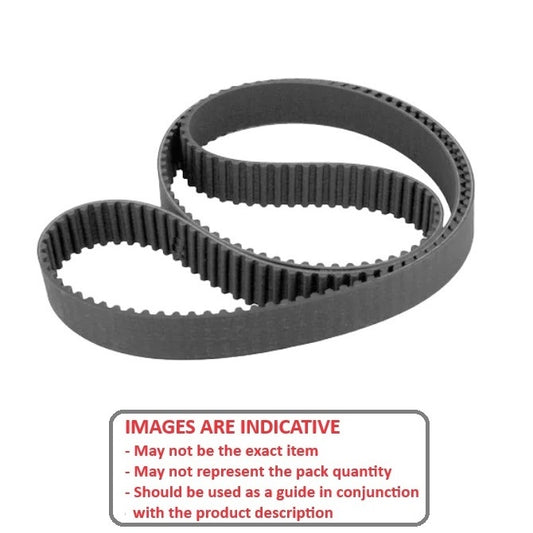

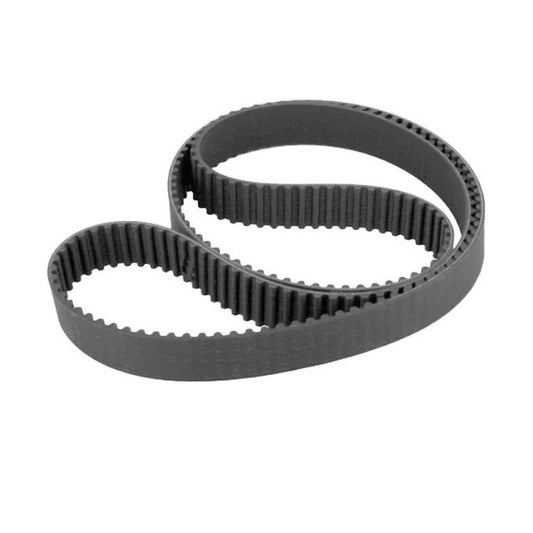

Belts - Timing 5.000mm Pitch - GT - 25mm Wide - Single Sided

50 Products in this selection
  • GT2 and GT3 Series Metric Timing Belts.
  • The TruMotion(R) belt construction utilizes a cream-colored polymer compound reinforced with fiberglass tensile cord and a clean polymer-free nylon tooth facing.
  • The belt can withstand high and low temperature ranges of -40oF to +220oF, has a virtually dust-free operation and is non-marking.
  • The belt also has a high flex life and resistance to elongation.
  • GT3 replaces GT2 as GT2 stock is depleted
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
A more concise listing may be found on the Smallparts store at Belts - Timing 5.000mm Pitch - GT - 25mm Wide - Single Sided. Smallparts promote the most popular MBA products.
Teeth Length Width Reinforcement Appearance Indicative
Teeth
420
Length
2100
mm
Width
25.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 5.000mm Pitch Belts - 420 tooth - 2100x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050G-0420-0250-NFB Timing 5.000mm Pitch Belts - 420 tooth - 2100x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$291.41 AUD
$291.41 AUD
Each
Teeth Length Width Indicative
Teeth
420
Length
2100
mm
Width
25.0
mm
Timing 5.000mm Pitch Belts - 420 tooth - 2100x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050G-0420-0250-NFB Timing 5.000mm Pitch Belts - 420 tooth - 2100x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$291.41 AUD
$291.41 AUD
Each
View the product page first if you are unsure.
Teeth
488
Length
2440
mm
Width
25.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
Timing 5.000mm Pitch Belts - 488 tooth - 2440x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050G-0488-0250-NFB Timing 5.000mm Pitch Belts - 488 tooth - 2440x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$337.14 AUD
$337.14 AUD
Each
Teeth
488
Length
2440
mm
Width
25.0
mm
Timing 5.000mm Pitch Belts - 488 tooth - 2440x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-050G-0488-0250-NFB Timing 5.000mm Pitch Belts - 488 tooth - 2440x25 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$337.14 AUD
$337.14 AUD
Each
View the product page first if you are unsure.
