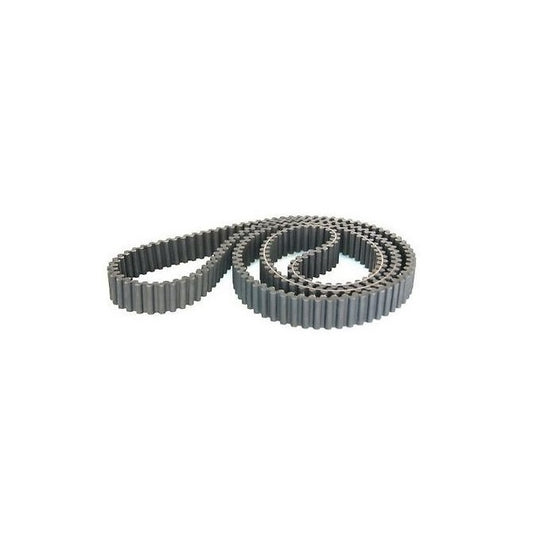

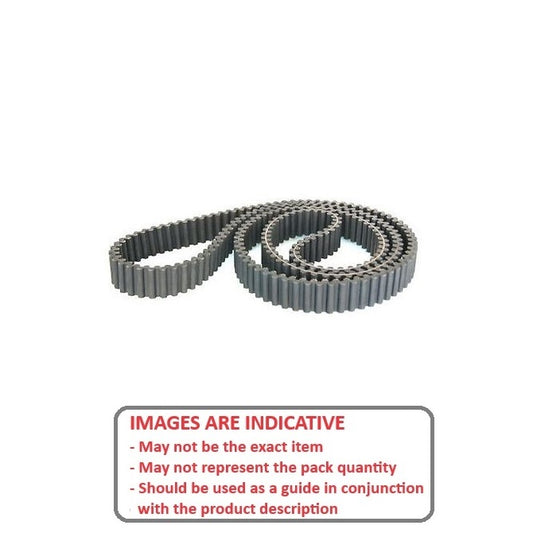

Belts - Timing 3.000mm Pitch - GT - 9mm Wide - Double Sided

5 Products in this selection
  • GT2 and GT3 Series Metric Timing Belts Double Sided
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Height (H) - 1.22mm.
  • Belt Height (W) - 3.20mm.
  • GT3 replaces GT2 as GT2 stock is depleted
  • Pitch (P) - 3.000mm
Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
3mm GT Timing Pulleys
A more concise listing may be found on the Smallparts store at Belts - Timing 3.000mm Pitch - GT - 9mm Wide - Double Sided. Smallparts promote the most popular MBA products.
Teeth Length Width Reinforcement Appearance Indicative
Teeth
216
Length
648
mm
Width
9.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
1207710 | BD-030G-0216-0090-NFB --- Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0216-0090-NFB Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$95.05 AUD
$95.05 AUD
Each
Teeth Length Width Indicative
Teeth
216
Length
648
mm
Width
9.0
mm
1207710 | BD-030G-0216-0090-NFB --- Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0216-0090-NFB Timing 3.000mm Pitch Belts - 216 tooth - 648x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$95.05 AUD
$95.05 AUD
Each
View the product page first if you are unsure.
Teeth
265
Length
795
mm
Width
9.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
1211533 | BD-030G-0265-0090-NFB --- Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0265-0090-NFB Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$99.05 AUD
$99.05 AUD
Each
Teeth
265
Length
795
mm
Width
9.0
mm
1211533 | BD-030G-0265-0090-NFB --- Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0265-0090-NFB Timing 3.000mm Pitch Belts - 265 tooth - 795x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$99.05 AUD
$99.05 AUD
Each
View the product page first if you are unsure.
Teeth
315
Length
945
mm
Width
9.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
1215737 | BD-030G-0315-0090-NFB --- Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0315-0090-NFB Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$106.05 AUD
$106.05 AUD
Each
Teeth
315
Length
945
mm
Width
9.0
mm
1215737 | BD-030G-0315-0090-NFB --- Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0315-0090-NFB Timing 3.000mm Pitch Belts - 315 tooth - 945x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$106.05 AUD
$106.05 AUD
Each
View the product page first if you are unsure.
Teeth
445
Length
1335
mm
Width
9.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
1217257 | BD-030G-0445-0090-NFB --- Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0445-0090-NFB Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$133.95 AUD
$133.95 AUD
Each
Teeth
445
Length
1335
mm
Width
9.0
mm
1217257 | BD-030G-0445-0090-NFB --- Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0445-0090-NFB Timing 3.000mm Pitch Belts - 445 tooth - 1335x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$133.95 AUD
$133.95 AUD
Each
View the product page first if you are unsure.
Teeth
512
Length
1536
mm
Width
9.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Black
1220076 | BD-030G-0512-0090-NFB --- Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0512-0090-NFB Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$154.50 AUD
$154.50 AUD
Each
Teeth
512
Length
1536
mm
Width
9.0
mm
1220076 | BD-030G-0512-0090-NFB --- Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Black    Breaking Strength: 1710 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: BD-030G-0512-0090-NFB Timing 3.000mm Pitch Belts - 512 tooth - 1536x9 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025
$154.50 AUD
$154.50 AUD
Each
View the product page first if you are unsure.
