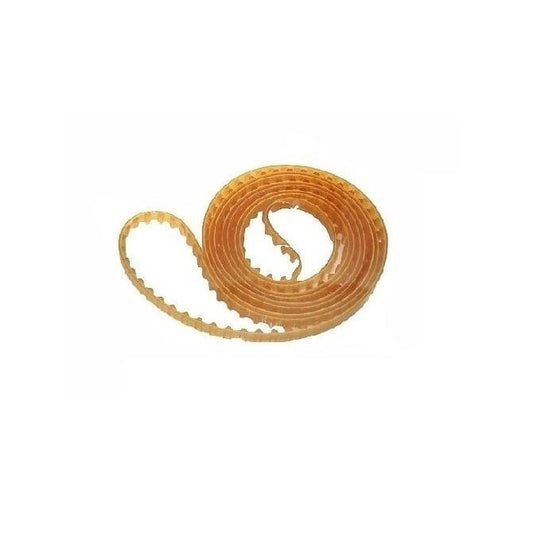

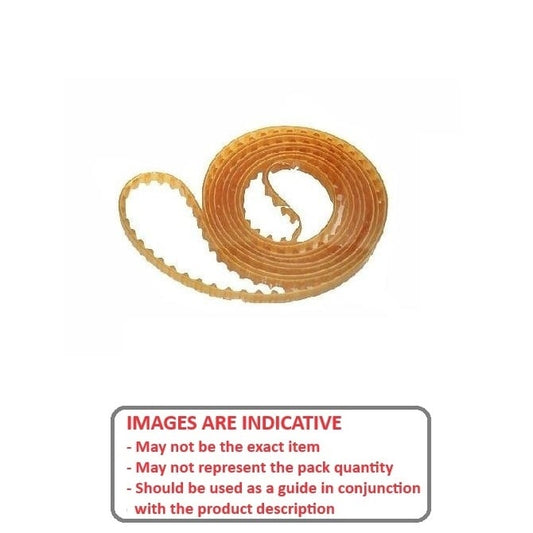

Belts - Timing 10.000mm Pitch - AT10 - 10mm Wide

35 Products in this selection
  • AT Synchroflex Generation III Series Metric Timing Belts.
  • Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • Tooth Height (H) - 2.50mm.
  • Belt Height (W) - 4.50mm - Corner Radii ( r )- 0.60mm.
  • Pitch (P) - 10.000mm
Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
AT 10 Timing Pulleys
A more concise listing may be found on the Smallparts store at Belts - Timing 10.000mm Pitch - AT10 - 10mm Wide. Smallparts promote the most popular MBA products.
Teeth Length Width Reinforcement Appearance Indicative
Teeth
132
Length
1320
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1197175 | B-100A-0132-0100-PSA --- Timing 10.000mm Pitch Belts - 132 tooth - 1320x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0132-0100-PSA Timing 10.000mm Pitch Belts - 132 tooth - 1320x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$110.50 AUD
$110.50 AUD
Each
Teeth Length Width Indicative
Teeth
132
Length
1320
mm
Width
10.0
mm
1197175 | B-100A-0132-0100-PSA --- Timing 10.000mm Pitch Belts - 132 tooth - 1320x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0132-0100-PSA Timing 10.000mm Pitch Belts - 132 tooth - 1320x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$110.50 AUD
$110.50 AUD
Each
View the product page first if you are unsure.
Teeth
142
Length
1420
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1197337 | B-100A-0142-0100-PSA --- Timing 10.000mm Pitch Belts - 142 tooth - 1420x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0142-0100-PSA Timing 10.000mm Pitch Belts - 142 tooth - 1420x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$95.32 AUD
$95.32 AUD
Each
Teeth
142
Length
1420
mm
Width
10.0
mm
1197337 | B-100A-0142-0100-PSA --- Timing 10.000mm Pitch Belts - 142 tooth - 1420x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0142-0100-PSA Timing 10.000mm Pitch Belts - 142 tooth - 1420x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$95.32 AUD
$95.32 AUD
Each
View the product page first if you are unsure.
Teeth
136
Length
1360
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1197889 | B-100A-0136-0100-PSA --- Timing 10.000mm Pitch Belts - 136 tooth - 1360x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0136-0100-PSA Timing 10.000mm Pitch Belts - 136 tooth - 1360x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$95.32 AUD
$95.32 AUD
Each
Teeth
136
Length
1360
mm
Width
10.0
mm
1197889 | B-100A-0136-0100-PSA --- Timing 10.000mm Pitch Belts - 136 tooth - 1360x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0136-0100-PSA Timing 10.000mm Pitch Belts - 136 tooth - 1360x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$95.32 AUD
$95.32 AUD
Each
View the product page first if you are unsure.
Teeth
148
Length
1480
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1198455 | B-100A-0148-0100-PSA --- Timing 10.000mm Pitch Belts - 148 tooth - 1480x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0148-0100-PSA Timing 10.000mm Pitch Belts - 148 tooth - 1480x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$101.05 AUD
$101.05 AUD
Each
Teeth
148
Length
1480
mm
Width
10.0
mm
1198455 | B-100A-0148-0100-PSA --- Timing 10.000mm Pitch Belts - 148 tooth - 1480x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0148-0100-PSA Timing 10.000mm Pitch Belts - 148 tooth - 1480x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$101.05 AUD
$101.05 AUD
Each
View the product page first if you are unsure.
Teeth
140
Length
1400
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1198997 | B-100A-0140-0100-PSA --- Timing 10.000mm Pitch Belts - 140 tooth - 1400x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0140-0100-PSA Timing 10.000mm Pitch Belts - 140 tooth - 1400x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$95.32 AUD
$95.32 AUD
Each
Teeth
140
Length
1400
mm
Width
10.0
mm
1198997 | B-100A-0140-0100-PSA --- Timing 10.000mm Pitch Belts - 140 tooth - 1400x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0140-0100-PSA Timing 10.000mm Pitch Belts - 140 tooth - 1400x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$95.32 AUD
$95.32 AUD
Each
View the product page first if you are unsure.
Teeth
160
Length
1600
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1201032 | B-100A-0160-0100-PSA --- Timing 10.000mm Pitch Belts - 160 tooth - 1600x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0160-0100-PSA Timing 10.000mm Pitch Belts - 160 tooth - 1600x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$103.59 AUD
$103.59 AUD
Each
Teeth
160
Length
1600
mm
Width
10.0
mm
1201032 | B-100A-0160-0100-PSA --- Timing 10.000mm Pitch Belts - 160 tooth - 1600x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0160-0100-PSA Timing 10.000mm Pitch Belts - 160 tooth - 1600x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$103.59 AUD
$103.59 AUD
Each
View the product page first if you are unsure.
Teeth
150
Length
1500
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1201076 | B-100A-0150-0100-PSA --- Timing 10.000mm Pitch Belts - 150 tooth - 1500x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0150-0100-PSA Timing 10.000mm Pitch Belts - 150 tooth - 1500x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$101.05 AUD
$101.05 AUD
Each
Teeth
150
Length
1500
mm
Width
10.0
mm
1201076 | B-100A-0150-0100-PSA --- Timing 10.000mm Pitch Belts - 150 tooth - 1500x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0150-0100-PSA Timing 10.000mm Pitch Belts - 150 tooth - 1500x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$101.05 AUD
$101.05 AUD
Each
View the product page first if you are unsure.
Teeth
170
Length
1700
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1204349 | B-100A-0170-0100-PSA --- Timing 10.000mm Pitch Belts - 170 tooth - 1700x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0170-0100-PSA Timing 10.000mm Pitch Belts - 170 tooth - 1700x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$109.59 AUD
$109.59 AUD
Each
Teeth
170
Length
1700
mm
Width
10.0
mm
1204349 | B-100A-0170-0100-PSA --- Timing 10.000mm Pitch Belts - 170 tooth - 1700x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0170-0100-PSA Timing 10.000mm Pitch Belts - 170 tooth - 1700x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$109.59 AUD
$109.59 AUD
Each
View the product page first if you are unsure.
Teeth
186
Length
1860
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1204492 | B-100A-0186-0100-PSA --- Timing 10.000mm Pitch Belts - 186 tooth - 1860x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0186-0100-PSA Timing 10.000mm Pitch Belts - 186 tooth - 1860x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$124.50 AUD
$124.50 AUD
Each
Teeth
186
Length
1860
mm
Width
10.0
mm
1204492 | B-100A-0186-0100-PSA --- Timing 10.000mm Pitch Belts - 186 tooth - 1860x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0186-0100-PSA Timing 10.000mm Pitch Belts - 186 tooth - 1860x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$124.50 AUD
$124.50 AUD
Each
View the product page first if you are unsure.
Teeth
180
Length
1800
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1205813 | B-100A-0180-0100-PSA --- Timing 10.000mm Pitch Belts - 180 tooth - 1800x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0180-0100-PSA Timing 10.000mm Pitch Belts - 180 tooth - 1800x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$117.41 AUD
$117.41 AUD
Each
Teeth
180
Length
1800
mm
Width
10.0
mm
1205813 | B-100A-0180-0100-PSA --- Timing 10.000mm Pitch Belts - 180 tooth - 1800x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0180-0100-PSA Timing 10.000mm Pitch Belts - 180 tooth - 1800x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$117.41 AUD
$117.41 AUD
Each
View the product page first if you are unsure.
Teeth
194
Length
1940
mm
Width
10.0
mm
Reinforcement
Steel
Appearance
Amber
1207378 | B-100A-0194-0100-PSA --- Timing 10.000mm Pitch Belts - 194 tooth - 1940x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0194-0100-PSA Timing 10.000mm Pitch Belts - 194 tooth - 1940x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$124.50 AUD
$124.50 AUD
Each
Teeth
194
Length
1940
mm
Width
10.0
mm
1207378 | B-100A-0194-0100-PSA --- Timing 10.000mm Pitch Belts - 194 tooth - 1940x10 mm - Polyurethane with Steel Cords
Material: Polyurethane with Steel Cords    Reinforcement: Steel    Appearance: Amber    Breaking Strength: 5620 N    Tooth Angle: 50 °
Part Number: B-100A-0194-0100-PSA Timing 10.000mm Pitch Belts - 194 tooth - 1940x10 mm - Polyurethane with Steel Cords
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 28, 2025
$124.50 AUD
$124.50 AUD
Each
View the product page first if you are unsure.
