Bearings - Thrust Ball - Grooved - ZRO2 Ceramic

6 Products in this selection

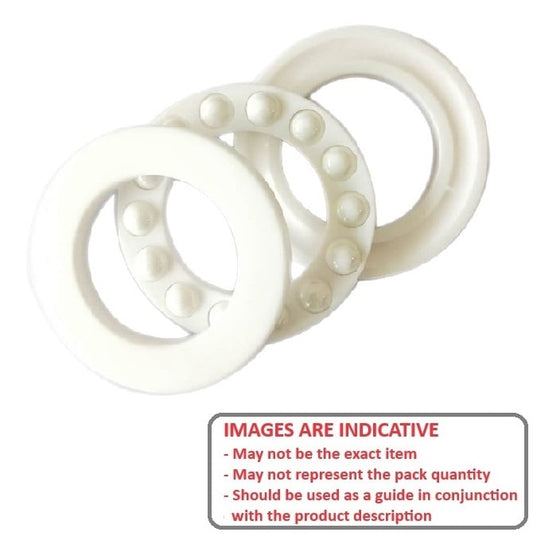

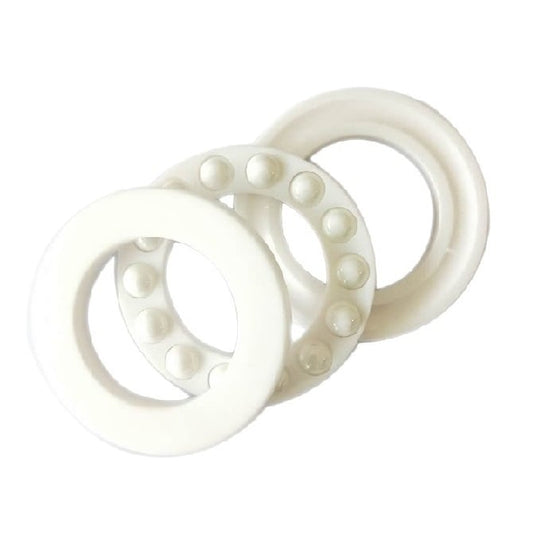

  • 3 Piece Thrust Bearings Open Type. Excellent performance in electrical and magnetism sensitive applications. Full ceramic silicon nitride.
  • These bearings are designed so that when one ring turns, the other remains stationary.
  • Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
  • Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
  • Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
Additional resources:
Thrust Bearings PDF Catalogue
Shafting
A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Grooved - ZRO2 Ceramic. Smallparts promote the most popular MBA products.
Shaft Diameter (A) OD (D1) Thickness (T) Bore (d2) OD (D2) Dynamic Load Capacity Indicative
Shaft Diameter (A)
4.000
mm

(0.157 in.)
OD (D1)
9.000
mm

(0.354 in.)
Thickness (T)
4.000
mm

(0.157 in.)
Bore (d2)
4.200
mm
OD (D2)
8.800
mm
1052447 | CZR-T-0040-0090-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0090-G-ZR (4 Pcs) Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$150.68 AUD
$150.68 AUD
Per 4
Shaft Diameter (A) OD (D1) Thickness (T) Bore (d2) Indicative
Shaft Diameter (A)
4.000
mm

(0.157 in.)
OD (D1)
9.000
mm

(0.354 in.)
Thickness (T)
4.000
mm

(0.157 in.)
Bore (d2)
4.200
mm
1052447 | CZR-T-0040-0090-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 8.800 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0090-G-ZR (4 Pcs) Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$150.68 AUD
$150.68 AUD
Per 4
View the product page first if you are unsure.
Shaft Diameter (A)
4.000
mm

(0.157 in.)
OD (D1)
10.000
mm

(0.394 in.)
Thickness (T)
4.000
mm

(0.157 in.)
Bore (d2)
4.200
mm
OD (D2)
9.800
mm
1052588 | CZR-T-0040-0100-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0100-G-ZR (4 Pcs) Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$150.68 AUD
$150.68 AUD
Per 4
Shaft Diameter (A)
4.000
mm

(0.157 in.)
OD (D1)
10.000
mm

(0.394 in.)
Thickness (T)
4.000
mm

(0.157 in.)
Bore (d2)
4.200
mm
1052588 | CZR-T-0040-0100-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 9.800 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0100-G-ZR (4 Pcs) Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$150.68 AUD
$150.68 AUD
Per 4
View the product page first if you are unsure.
Shaft Diameter (A)
20.000
mm

(0.787 in.)
OD (D1)
35.000
mm

(1.378 in.)
Thickness (T)
10.000
mm

(0.394 in.)
Bore (d2)
21.000
mm
OD (D2)
35.000
mm
1123300 | CZR-T-0200-0350-G-TF-51104 --- Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
Material: Ceramic Zirconia ZrO2    Cage Type: PTFE
Part Number: CZR-T-0200-0350-G-TF-51104 Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
1 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025
$58.41 AUD
$58.41 AUD
Each
Shaft Diameter (A)
20.000
mm

(0.787 in.)
OD (D1)
35.000
mm

(1.378 in.)
Thickness (T)
10.000
mm

(0.394 in.)
Bore (d2)
21.000
mm
1123300 | CZR-T-0200-0350-G-TF-51104 --- Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
Material: Ceramic Zirconia ZrO2    OD (D2): 35.000 mm    Cage Type: PTFE
Part Number: CZR-T-0200-0350-G-TF-51104 Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
1 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025
$58.41 AUD
$58.41 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
30.000
mm

(1.181 in.)
OD (D1)
47.000
mm

(1.85 in.)
Thickness (T)
11.000
mm

(0.433 in.)
Bore (d2)
32.000
mm
OD (D2)
47.000
mm
1140382 | CZR-T-0300-0470-G-ZR-51106 --- Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0300-0470-G-ZR-51106 Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$116.95 AUD
$116.95 AUD
Each
Shaft Diameter (A)
30.000
mm

(1.181 in.)
OD (D1)
47.000
mm

(1.85 in.)
Thickness (T)
11.000
mm

(0.433 in.)
Bore (d2)
32.000
mm
1140382 | CZR-T-0300-0470-G-ZR-51106 --- Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 47.000 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0300-0470-G-ZR-51106 Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$116.95 AUD
$116.95 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
40.000
mm

(1.575 in.)
OD (D1)
60.000
mm

(2.362 in.)
Thickness (T)
13.000
mm

(0.512 in.)
Bore (d2)
42.000
mm
OD (D2)
60.000
mm
Thrust Ball Bearings - 40 mm x 60 mm x 13 mm / 42 mm
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: PTFE
Part Number: CZR-T-0400-060-G-ZR-51108 Thrust Ball Bearings - 40x60x13 mm / 42 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$174.32 AUD
$174.32 AUD
Each
Shaft Diameter (A)
40.000
mm

(1.575 in.)
OD (D1)
60.000
mm

(2.362 in.)
Thickness (T)
13.000
mm

(0.512 in.)
Bore (d2)
42.000
mm
Thrust Ball Bearings - 40 mm x 60 mm x 13 mm / 42 mm
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 60.000 mm    Cage Type: PTFE
Part Number: CZR-T-0400-060-G-ZR-51108 Thrust Ball Bearings - 40x60x13 mm / 42 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$174.32 AUD
$174.32 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
60.000
mm

(2.362 in.)
OD (D1)
85.000
mm

(3.346 in.)
Thickness (T)
17.000
mm

(0.669 in.)
1167522 | CZR-T-0600-0850-G-ZR-51112 (4 Pcs) --- Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0600-0850-G-ZR-51112 (4 Pcs) Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$1,695.23 AUD
$1,695.23 AUD
Per 4
Shaft Diameter (A)
60.000
mm

(2.362 in.)
OD (D1)
85.000
mm

(3.346 in.)
Thickness (T)
17.000
mm

(0.669 in.)
1167522 | CZR-T-0600-0850-G-ZR-51112 (4 Pcs) --- Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0600-0850-G-ZR-51112 (4 Pcs) Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$1,695.23 AUD
$1,695.23 AUD
Per 4
View the product page first if you are unsure.
