Collection: Bearings - Thrust Ball - Grooved - Chrome Steel

Bearings (With Images)

Thrust Ball

Grooved

123 Products in this selection

3 Piece Thrust Bearings Open Type
These bearings are designed so that when one ring turns, the other remains stationary.
Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Grooved - Chrome Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity
Shaft Diameter (A) 3.000 mm _{(0.118 in.)}	OD (D1) 8.000 mm _{(0.315 in.)}	Thickness (T) 3.500 mm _{(0.138 in.)}	Bore (d2) 3.200 mm	OD (D2) 7.800 mm	Dynamic Load Capacity 87 kgf

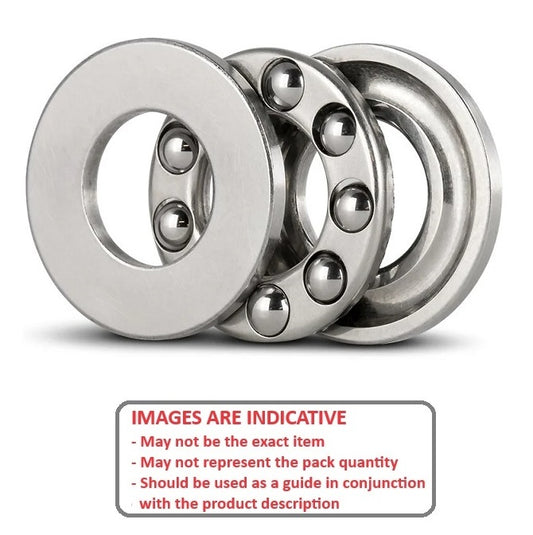

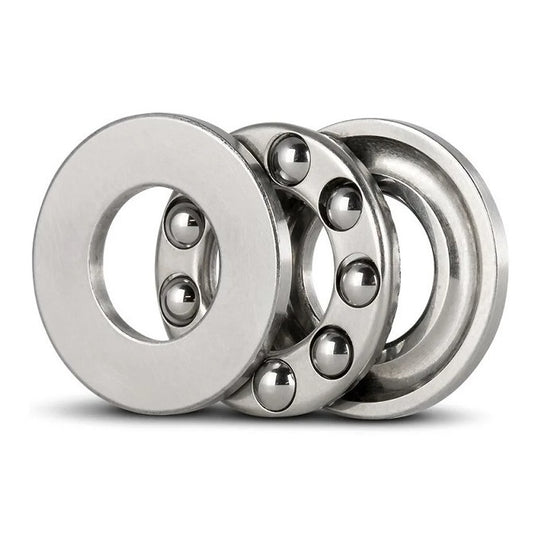

Material: Chrome Steel Cage Type: Steel
Part Number: T-0030-0080-G-ST (50 Pcs) Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $768.50 AUD Regular price Sale price $768.50 AUD Unit price per Per 50
Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
Shaft Diameter (A) 3.000 mm _{(0.118 in.)}	OD (D1) 8.000 mm _{(0.315 in.)}	Thickness (T) 3.500 mm _{(0.138 in.)}	Bore (d2) 3.200 mm
Material: Chrome Steel OD (D2): 7.800 mm Dynamic Load Capacity: 87 kgf Cage Type: Steel
Part Number: T-0030-0080-G-ST (50 Pcs) Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $768.50 AUD Regular price Sale price $768.50 AUD Unit price per Per 50 View the product page first if you are unsure.
T-0030-0080-G-ST (50 Pcs) --- Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel T-0030-0080-G-ST (50 Pcs) --- Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel Regular price $768.50 AUD Regular price Sale price $768.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 3.000 mm _{(0.118 in.)}	OD (D1) 8.000 mm _{(0.315 in.)}	Thickness (T) 3.500 mm _{(0.138 in.)}	Bore (d2) 3.200 mm	OD (D2) 8.000 mm	Dynamic Load Capacity 87 kgf

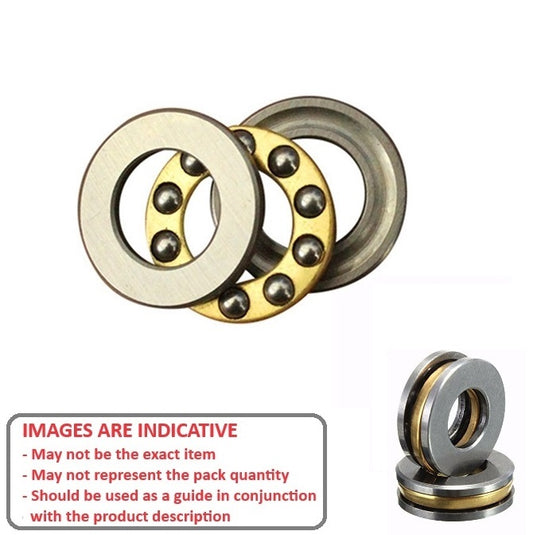

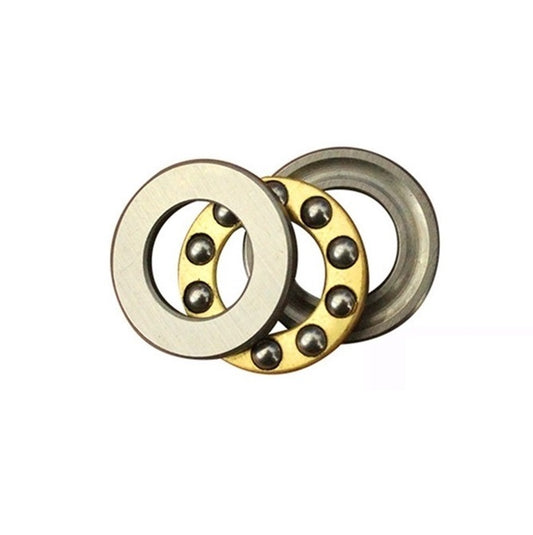

Material: Chrome Steel Cage Type: Brass
Part Number: T-0030-0080-G-BR Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Each
Shaft Diameter (A) 3.000 mm _{(0.118 in.)}	OD (D1) 8.000 mm _{(0.315 in.)}	Thickness (T) 3.500 mm _{(0.138 in.)}	Bore (d2) 3.200 mm
Material: Chrome Steel OD (D2): 8.000 mm Dynamic Load Capacity: 87 kgf Cage Type: Brass
Part Number: T-0030-0080-G-BR Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Each View the product page first if you are unsure.
T-0030-0080-G-BR --- Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel T-0030-0080-G-BR --- Thrust Ball Bearings - 3x8x3.5 mm / 3.2 mm - Chrome Steel Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 9.000 mm _{(0.354 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.200 mm	OD (D2) 8.800 mm	Dynamic Load Capacity 83 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0040-0090-G-BR (20 Pcs) Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $264.14 AUD Regular price Sale price $264.14 AUD Unit price per Per 20
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 9.000 mm _{(0.354 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.200 mm
Material: Chrome Steel OD (D2): 8.800 mm Dynamic Load Capacity: 83 kgf Cage Type: Brass
Part Number: T-0040-0090-G-BR (20 Pcs) Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $264.14 AUD Regular price Sale price $264.14 AUD Unit price per Per 20 View the product page first if you are unsure.
T-0040-0090-G-BR (20 Pcs) --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel T-0040-0090-G-BR (20 Pcs) --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel Regular price $264.14 AUD Regular price Sale price $264.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 9.000 mm _{(0.354 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.200 mm	OD (D2) 9.000 mm	Dynamic Load Capacity 83 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0040-0090-G Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel 4 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Each
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 9.000 mm _{(0.354 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.200 mm
Material: Chrome Steel OD (D2): 9.000 mm Dynamic Load Capacity: 83 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0040-0090-G Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel 4 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Each View the product page first if you are unsure.
T-0040-0090-G --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel T-0040-0090-G --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Chrome Steel Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per 4 Available Now
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 10.000 mm _{(0.394 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.200 mm	OD (D2) 9.800 mm	Dynamic Load Capacity 81 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0040-0100-G-BR Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Each
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 10.000 mm _{(0.394 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.200 mm
Material: Chrome Steel OD (D2): 9.800 mm Dynamic Load Capacity: 81 kgf Cage Type: Brass
Part Number: T-0040-0100-G-BR Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Each View the product page first if you are unsure.
T-0040-0100-G-BR --- Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Chrome Steel T-0040-0100-G-BR --- Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Chrome Steel Regular price $69.50 AUD Regular price Sale price $69.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 10.000 mm _{(0.394 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 5.200 mm	OD (D2) 10.000 mm	Dynamic Load Capacity 92 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0050-0100-G Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel 80 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 10.000 mm _{(0.394 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 5.200 mm
Material: Chrome Steel OD (D2): 10.000 mm Dynamic Load Capacity: 92 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0050-0100-G Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel 80 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Each View the product page first if you are unsure.
T-0050-0100-G --- Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel T-0050-0100-G --- Thrust Ball Bearings - 5x10x4 mm / 5.2 mm - Chrome Steel Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per 80 Available Now
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 5.200 mm	OD (D2) 11.800 mm	Dynamic Load Capacity 92 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0050-0120-G (300 Pcs) Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $3,932.86 AUD Regular price Sale price $3,932.86 AUD Unit price per Per 300
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 5.200 mm
Material: Chrome Steel OD (D2): 11.800 mm Dynamic Load Capacity: 92 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0050-0120-G (300 Pcs) Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $3,932.86 AUD Regular price Sale price $3,932.86 AUD Unit price per Per 300 View the product page first if you are unsure.
T-0050-0120-G (300 Pcs) --- Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel T-0050-0120-G (300 Pcs) --- Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel Regular price $3,932.86 AUD Regular price Sale price $3,932.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 5.200 mm	OD (D2) 11.800 mm	Dynamic Load Capacity 92 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0050-0120-G-BR Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Each
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 5.200 mm
Material: Chrome Steel OD (D2): 11.800 mm Dynamic Load Capacity: 92 kgf Cage Type: Brass
Part Number: T-0050-0120-G-BR Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Each View the product page first if you are unsure.
T-0050-0120-G-BR --- Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel T-0050-0120-G-BR --- Thrust Ball Bearings - 5x12x4 mm / 5.2 mm - Chrome Steel Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 6.200 mm	OD (D2) 12.000 mm	Dynamic Load Capacity 160 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0120-G Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 6.200 mm
Material: Chrome Steel OD (D2): 12.000 mm Dynamic Load Capacity: 160 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0120-G Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
T-0060-0120-G --- Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel T-0060-0120-G --- Thrust Ball Bearings - 6x12x4.5 mm / 6.2 mm - Chrome Steel Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 14.000 mm _{(0.551 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 6.200 mm	OD (D2) 13.800 mm	Dynamic Load Capacity 192 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0140-G-ST Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 4 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 14.000 mm _{(0.551 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 6.200 mm
Material: Chrome Steel OD (D2): 13.800 mm Dynamic Load Capacity: 192 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0060-0140-G-ST Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 4 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each
T-0060-0140-G-ST --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel Sale T-0060-0140-G-ST --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per 4 Available Now Sale
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 14.000 mm _{(0.551 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 6.200 mm	OD (D2) 14.000 mm	Dynamic Load Capacity 192 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0060-0140-G-BR Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 92 Available Immediately \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 14.000 mm _{(0.551 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 6.200 mm
Material: Chrome Steel OD (D2): 14.000 mm Dynamic Load Capacity: 192 kgf Cage Type: Brass
Part Number: T-0060-0140-G-BR Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel 92 Available Immediately \| Further orders can be expected around Sun, Sep 07, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each View the product page first if you are unsure.
T-0060-0140-G-BR --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel T-0060-0140-G-BR --- Thrust Ball Bearings - 6x14x5 mm / 6.2 mm - Chrome Steel Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 92 Available Now
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 13.000 mm _{(0.512 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 7.200 mm	OD (D2) 12.800 mm	Dynamic Load Capacity 156 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0070-0130-G (50 Pcs) Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $703.14 AUD Regular price Sale price $703.14 AUD Unit price per Per 50
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 13.000 mm _{(0.512 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 7.200 mm
Material: Chrome Steel OD (D2): 12.800 mm Dynamic Load Capacity: 156 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0070-0130-G (50 Pcs) Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $703.14 AUD Regular price Sale price $703.14 AUD Unit price per Per 50 View the product page first if you are unsure.
T-0070-0130-G (50 Pcs) --- Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel T-0070-0130-G (50 Pcs) --- Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Regular price $703.14 AUD Regular price Sale price $703.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 13.000 mm _{(0.512 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 7.200 mm	OD (D2) 12.800 mm	Dynamic Load Capacity 156 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0070-0130-G-BR Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel 8 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.66 AUD Regular price ~~$14.42 AUD~~ Sale price $5.66 AUD Unit price per Each
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 13.000 mm _{(0.512 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 7.200 mm
Material: Chrome Steel OD (D2): 12.800 mm Dynamic Load Capacity: 156 kgf Cage Type: Brass
Part Number: T-0070-0130-G-BR Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel 8 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.66 AUD Regular price ~~$14.42 AUD~~ Sale price $5.66 AUD Unit price per Each
T-0070-0130-G-BR --- Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Sale T-0070-0130-G-BR --- Thrust Ball Bearings - 7x13x4.5 mm / 7.2 mm - Chrome Steel Regular price $5.66 AUD Regular price ~~$14.42 AUD~~ Sale price $5.66 AUD Unit price per 8 Available Now Sale
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.200 mm	OD (D2) 15.000 mm	Dynamic Load Capacity 224 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0070-0150-G-BR Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 70 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.23 AUD Regular price ~~$2.67 AUD~~ Sale price $2.23 AUD Unit price per Each
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.200 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 224 kgf Cage Type: Brass
Part Number: T-0070-0150-G-BR Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 70 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.23 AUD Regular price ~~$2.67 AUD~~ Sale price $2.23 AUD Unit price per Each View the product page first if you are unsure.
T-0070-0150-G-BR --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Sale T-0070-0150-G-BR --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Regular price $2.23 AUD Regular price ~~$2.67 AUD~~ Sale price $2.23 AUD Unit price per 70 Available Now Sale
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.200 mm	OD (D2) 15.000 mm	Dynamic Load Capacity 224 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0070-0150-G-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 39 units (78 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.01 AUD Regular price ~~$4.81 AUD~~ Sale price $4.01 AUD Unit price per Per 2
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.200 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 224 kgf Cage Type: Steel
Part Number: T-0070-0150-G-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel 39 units (78 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.01 AUD Regular price ~~$4.81 AUD~~ Sale price $4.01 AUD Unit price per Per 2
T-0070-0150-G-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Sale T-0070-0150-G-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7.2 mm - Chrome Steel Regular price $4.01 AUD Regular price ~~$4.81 AUD~~ Sale price $4.01 AUD Unit price per 39 Available Now Sale
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 17.000 mm _{(0.669 in.)}	Thickness (T) 6.000 mm _{(0.236 in.)}	Bore (d2) 7.200 mm	OD (D2) 17.000 mm	Dynamic Load Capacity 270 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel
Part Number: T-0070-0170-G Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel 82 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 17.000 mm _{(0.669 in.)}	Thickness (T) 6.000 mm _{(0.236 in.)}	Bore (d2) 7.200 mm
Material: Chrome Steel OD (D2): 17.000 mm Dynamic Load Capacity: 270 kgf Cage Type: SAE 52100 Chrome Steel
Part Number: T-0070-0170-G Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel 82 Available Immediately \| Further orders can be expected around Wed, Jun 18, 2025 Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per Each View the product page first if you are unsure.
T-0070-0170-G --- Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel Sale T-0070-0170-G --- Thrust Ball Bearings - 7x17x6 mm / 7.2 mm - Chrome Steel Regular price $47.86 AUD Regular price ~~$57.44 AUD~~ Sale price $47.86 AUD Unit price per 82 Available Now Sale
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 14.000 mm _{(0.551 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 8.200 mm	OD (D2) 14.000 mm	Dynamic Load Capacity 391 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0080-0140-G-BR-ECO Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel 166 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Each
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 14.000 mm _{(0.551 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 8.200 mm
Material: Chrome Steel OD (D2): 14.000 mm Dynamic Load Capacity: 391 kgf Cage Type: Brass
Part Number: T-0080-0140-G-BR-ECO Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel 166 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0140-G-BR-ECO --- Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel T-0080-0140-G-BR-ECO --- Thrust Ball Bearings - 8x14x4 mm / 8.2 mm - Chrome Steel Regular price $3.05 AUD Regular price Sale price $3.05 AUD Unit price per 166 Available Now
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 16.000 mm _{(0.63 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 8.200 mm	OD (D2) 15.800 mm	Dynamic Load Capacity 391 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0080-0160-G-ST Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel 61 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 16.000 mm _{(0.63 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 8.200 mm
Material: Chrome Steel OD (D2): 15.800 mm Dynamic Load Capacity: 391 kgf Cage Type: Steel
Part Number: T-0080-0160-G-ST Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel 61 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0160-G-ST --- Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Sale T-0080-0160-G-ST --- Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per 61 Available Now Sale
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 16.000 mm _{(0.63 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 8.200 mm	OD (D2) 16.000 mm	Dynamic Load Capacity 391 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0080-0160-G-BR Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $58.50 AUD Regular price Sale price $58.50 AUD Unit price per Each
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 16.000 mm _{(0.63 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 8.200 mm
Material: Chrome Steel OD (D2): 16.000 mm Dynamic Load Capacity: 391 kgf Cage Type: Brass
Part Number: T-0080-0160-G-BR Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $58.50 AUD Regular price Sale price $58.50 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0160-G-BR --- Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel T-0080-0160-G-BR --- Thrust Ball Bearings - 8x16x5 mm / 8.2 mm - Chrome Steel Regular price $58.50 AUD Regular price Sale price $58.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 19.000 mm _{(0.748 in.)}	Thickness (T) 7.000 mm _{(0.276 in.)}	Bore (d2) 8.200 mm	OD (D2) 18.800 mm	Dynamic Load Capacity 347 kgf
Material: Chrome Steel Cage Type: SAE 52100 Chrome Steel OR Brass
Part Number: T-0080-0190-G Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel 26 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 19.000 mm _{(0.748 in.)}	Thickness (T) 7.000 mm _{(0.276 in.)}	Bore (d2) 8.200 mm
Material: Chrome Steel OD (D2): 18.800 mm Dynamic Load Capacity: 347 kgf Cage Type: SAE 52100 Chrome Steel OR Brass
Part Number: T-0080-0190-G Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel 26 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0190-G --- Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel T-0080-0190-G --- Thrust Ball Bearings - 8x19x7 mm / 8.2 mm - Chrome Steel Regular price $25.50 AUD Regular price Sale price $25.50 AUD Unit price per 26 Available Now
Shaft Diameter (A) 9.000 mm _{(0.354 in.)}	OD (D1) 20.000 mm _{(0.787 in.)}	Thickness (T) 7.000 mm _{(0.276 in.)}	Bore (d2) 9.200 mm	OD (D2) 20.000 mm	Dynamic Load Capacity 339 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0090-0200-G-BR Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel 545 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$3.83 AUD~~ Sale price $3.19 AUD Unit price per Each
Shaft Diameter (A) 9.000 mm _{(0.354 in.)}	OD (D1) 20.000 mm _{(0.787 in.)}	Thickness (T) 7.000 mm _{(0.276 in.)}	Bore (d2) 9.200 mm
Material: Chrome Steel OD (D2): 20.000 mm Dynamic Load Capacity: 339 kgf Cage Type: Brass
Part Number: T-0090-0200-G-BR Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel 545 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$3.83 AUD~~ Sale price $3.19 AUD Unit price per Each
T-0090-0200-G-BR --- Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel Sale T-0090-0200-G-BR --- Thrust Ball Bearings - 9x20x7 mm / 9.2 mm - Chrome Steel Regular price $3.19 AUD Regular price ~~$3.83 AUD~~ Sale price $3.19 AUD Unit price per 545 Available Now Sale
Shaft Diameter (A) 10.000 mm _{(0.394 in.)}	OD (D1) 18.000 mm _{(0.709 in.)}	Thickness (T) 5.500 mm _{(0.217 in.)}	Bore (d2) 10.200 mm	OD (D2) 17.800 mm	Dynamic Load Capacity 193 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0100-0180-G-ST (50 Pcs) Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $917.05 AUD Regular price Sale price $917.05 AUD Unit price per Per 50
Shaft Diameter (A) 10.000 mm _{(0.394 in.)}	OD (D1) 18.000 mm _{(0.709 in.)}	Thickness (T) 5.500 mm _{(0.217 in.)}	Bore (d2) 10.200 mm
Material: Chrome Steel OD (D2): 17.800 mm Dynamic Load Capacity: 193 kgf Cage Type: Steel
Part Number: T-0100-0180-G-ST (50 Pcs) Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $917.05 AUD Regular price Sale price $917.05 AUD Unit price per Per 50 View the product page first if you are unsure.
T-0100-0180-G-ST (50 Pcs) --- Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel T-0100-0180-G-ST (50 Pcs) --- Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel Regular price $917.05 AUD Regular price Sale price $917.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 10.000 mm _{(0.394 in.)}	OD (D1) 18.000 mm _{(0.709 in.)}	Thickness (T) 5.500 mm _{(0.217 in.)}	Bore (d2) 10.200 mm	OD (D2) 18.000 mm	Dynamic Load Capacity 193 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0100-0180-G-BR Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel 128 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each
Shaft Diameter (A) 10.000 mm _{(0.394 in.)}	OD (D1) 18.000 mm _{(0.709 in.)}	Thickness (T) 5.500 mm _{(0.217 in.)}	Bore (d2) 10.200 mm
Material: Chrome Steel OD (D2): 18.000 mm Dynamic Load Capacity: 193 kgf Cage Type: Brass
Part Number: T-0100-0180-G-BR Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel 128 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each View the product page first if you are unsure.
T-0100-0180-G-BR --- Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel T-0100-0180-G-BR --- Thrust Ball Bearings - 10x18x5.5 mm / 10.2 mm - Chrome Steel Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per 128 Available Now
Shaft Diameter (A) 10.000 mm _{(0.394 in.)}	OD (D1) 24.000 mm _{(0.945 in.)}	Thickness (T) 9.000 mm _{(0.354 in.)}	Bore (d2) 11.000 mm	OD (D2) 24.000 mm	Dynamic Load Capacity 900 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0100-0240-G-51100 Thrust Ball Bearings - 10x24x9 mm / 11 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each
Shaft Diameter (A) 10.000 mm _{(0.394 in.)}	OD (D1) 24.000 mm _{(0.945 in.)}	Thickness (T) 9.000 mm _{(0.354 in.)}	Bore (d2) 11.000 mm
Material: Chrome Steel OD (D2): 24.000 mm Dynamic Load Capacity: 900 kgf Cage Type: Steel
Part Number: T-0100-0240-G-51100 Thrust Ball Bearings - 10x24x9 mm / 11 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Each View the product page first if you are unsure.
T-0100-0240-G-51100 --- Thrust Ball Bearings - 10x24x9 mm / 11 mm - Chrome Steel T-0100-0240-G-51100 --- Thrust Ball Bearings - 10x24x9 mm / 11 mm - Chrome Steel Regular price $17.23 AUD Regular price Sale price $17.23 AUD Unit price per Out of stock! Backorder Now

Country/region

Country/region

Collection: Bearings - Thrust Ball - Grooved - Chrome Steel

Filter

Filter

Subscribe to our emails
