Collection: Bearings - Thrust Ball - Flat - Stainless Steel

Bearings (With Images)

Thrust Ball

Flat

Chrome Steel
Stainless Steel

28 Products in this selection

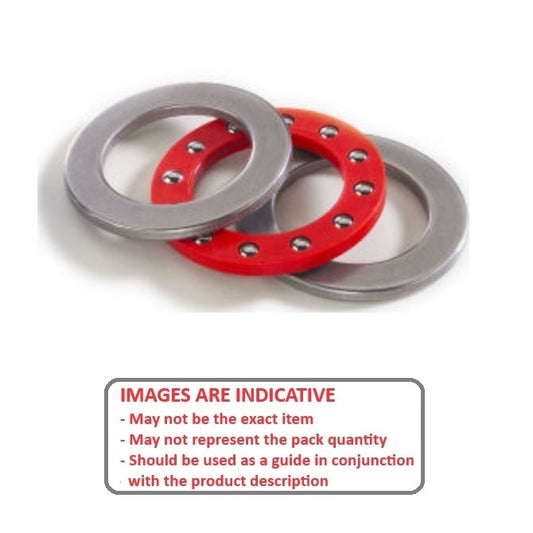

3 Piece Thrust Bearings Open Type with Flat Washers
These bearings are designed so that when one ring turns, the other remains stationary.
Some have a larger bore on one side allowing a shaft with no steps to pass through. Others will require a stepped shaft as they have the same bore on both races.
Some have a reduced size OD on one race allowing it to sit into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Flat - Stainless Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity
Shaft Diameter (A) 28.000 mm + 0.070 / + 0.300 _{(1.102 in.)}	OD (D1) 41.000 mm - 0.040 / - 0.220 _{(1.614 in.)}	Thickness (T) 11.000 mm + 0.360 / - 0.240 _{(0.433 in.)}	Bore (d2) 28.000 mm - 0.025 / - 0.202	OD (D2) 41.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 95 kgf
Material: Stainless Steel 400 Series and Nylon Cage Type: Moulded Nylon
Part Number: T-0280-0440-F-S440-NY Thrust Ball Bearings - 28x41x11 mm / 28 mm - Stainless Steel 400 Series and Nylon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Each
Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
Shaft Diameter (A) 28.000 mm + 0.070 / + 0.300 _{(1.102 in.)}	OD (D1) 41.000 mm - 0.040 / - 0.220 _{(1.614 in.)}	Thickness (T) 11.000 mm + 0.360 / - 0.240 _{(0.433 in.)}	Bore (d2) 28.000 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 41.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 95 kgf Cage Type: Moulded Nylon
Part Number: T-0280-0440-F-S440-NY Thrust Ball Bearings - 28x41x11 mm / 28 mm - Stainless Steel 400 Series and Nylon Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Each View the product page first if you are unsure.
T-0280-0440-F-S440-NY --- Thrust Ball Bearings - 28x41x11 mm / 28 mm - Stainless Steel 400 Series and Nylon T-0280-0440-F-S440-NY --- Thrust Ball Bearings - 28x41x11 mm / 28 mm - Stainless Steel 400 Series and Nylon Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 28.575 mm + 0.076 / + 0.263 _{(1.125 in.)}	OD (D1) 44.450 mm - 0.013 / - 0.208 _{(1.75 in.)}	Thickness (T) 11.113 mm + 0.360 / - 0.240 _{(0.438 in.)}	Bore (d2) 28.575 mm - 0.025 / - 0.202	OD (D2) 44.450 mm - 0.025 / - 0.202	Dynamic Load Capacity 99 kgf
Material: Stainless Steel 400 Series and Nylon Cage Type: Moulded Nylon
Part Number: T-0286-0441-F-S440-NY Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $55.59 AUD Regular price Sale price $55.59 AUD Unit price per Each
Shaft Diameter (A) 28.575 mm + 0.076 / + 0.263 _{(1.125 in.)}	OD (D1) 44.450 mm - 0.013 / - 0.208 _{(1.75 in.)}	Thickness (T) 11.113 mm + 0.360 / - 0.240 _{(0.438 in.)}	Bore (d2) 28.575 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 44.450 mm - 0.025 / - 0.202 Dynamic Load Capacity: 99 kgf Cage Type: Moulded Nylon
Part Number: T-0286-0441-F-S440-NY Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $55.59 AUD Regular price Sale price $55.59 AUD Unit price per Each View the product page first if you are unsure.
T-0286-0441-F-S440-NY --- Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon T-0286-0441-F-S440-NY --- Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon Regular price $55.59 AUD Regular price Sale price $55.59 AUD Unit price per 2 Available Now
Shaft Diameter (A) 28.575 mm + 0.076 / + 0.263 _{(1.125 in.)}	OD (D1) 47.625 mm - 0.013 / - 0.208 _{(1.875 in.)}	Thickness (T) 11.113 mm + 0.360 / - 0.240 _{(0.438 in.)}	Bore (d2) 28.575 mm - 0.025 / - 0.202	OD (D2) 47.625 mm - 0.025 / - 0.202	Dynamic Load Capacity 116 kgf
Material: Stainless Steel 400 Series and Nylon Cage Type: Moulded Nylon
Part Number: T-0318-0473-F-S440-NY Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $64.59 AUD Regular price Sale price $64.59 AUD Unit price per Each
Shaft Diameter (A) 28.575 mm + 0.076 / + 0.263 _{(1.125 in.)}	OD (D1) 47.625 mm - 0.013 / - 0.208 _{(1.875 in.)}	Thickness (T) 11.113 mm + 0.360 / - 0.240 _{(0.438 in.)}	Bore (d2) 28.575 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 47.625 mm - 0.025 / - 0.202 Dynamic Load Capacity: 116 kgf Cage Type: Moulded Nylon
Part Number: T-0318-0473-F-S440-NY Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $64.59 AUD Regular price Sale price $64.59 AUD Unit price per Each View the product page first if you are unsure.
T-0318-0473-F-S440-NY --- Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon T-0318-0473-F-S440-NY --- Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon Regular price $64.59 AUD Regular price Sale price $64.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 38.100 mm + 0.076 / + 0.263 _{(1.5 in.)}	OD (D1) 53.975 mm - 0.013 / - 0.208 _{(2.125 in.)}	Thickness (T) 11.113 mm + 0.360 / - 0.240 _{(0.438 in.)}	Bore (d2) 38.100 mm - 0.025 / - 0.202	OD (D2) 53.975 mm - 0.025 / - 0.202	Dynamic Load Capacity 86 kgf
Material: Stainless Steel 400 Series and Nylon Cage Type: Moulded Nylon
Part Number: T-0381-0540-F-S440-NY Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Stainless Steel 400 Series and Nylon Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $61.50 AUD Regular price Sale price $61.50 AUD Unit price per Each
Shaft Diameter (A) 38.100 mm + 0.076 / + 0.263 _{(1.5 in.)}	OD (D1) 53.975 mm - 0.013 / - 0.208 _{(2.125 in.)}	Thickness (T) 11.113 mm + 0.360 / - 0.240 _{(0.438 in.)}	Bore (d2) 38.100 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 53.975 mm - 0.025 / - 0.202 Dynamic Load Capacity: 86 kgf Cage Type: Moulded Nylon
Part Number: T-0381-0540-F-S440-NY Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Stainless Steel 400 Series and Nylon Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $61.50 AUD Regular price Sale price $61.50 AUD Unit price per Each View the product page first if you are unsure.
T-0381-0540-F-S440-NY --- Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Stainless Steel 400 Series and Nylon T-0381-0540-F-S440-NY --- Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Stainless Steel 400 Series and Nylon Regular price $61.50 AUD Regular price Sale price $61.50 AUD Unit price per Out of stock! Backorder Now

Collection: Bearings - Thrust Ball - Flat - Stainless Steel

Filter:

T-0280-0440-F-S440-NY --- Thrust Ball Bearings - 28x41x11 mm / 28 mm - Stainless Steel 400 Series and Nylon

T-0280-0440-F-S440-NY --- Thrust Ball Bearings - 28x41x11 mm / 28 mm - Stainless Steel 400 Series and Nylon

T-0286-0441-F-S440-NY --- Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon

T-0286-0441-F-S440-NY --- Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon

T-0318-0473-F-S440-NY --- Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon

T-0318-0473-F-S440-NY --- Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Stainless Steel 400 Series and Nylon

T-0381-0540-F-S440-NY --- Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Stainless Steel 400 Series and Nylon

T-0381-0540-F-S440-NY --- Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Stainless Steel 400 Series and Nylon
