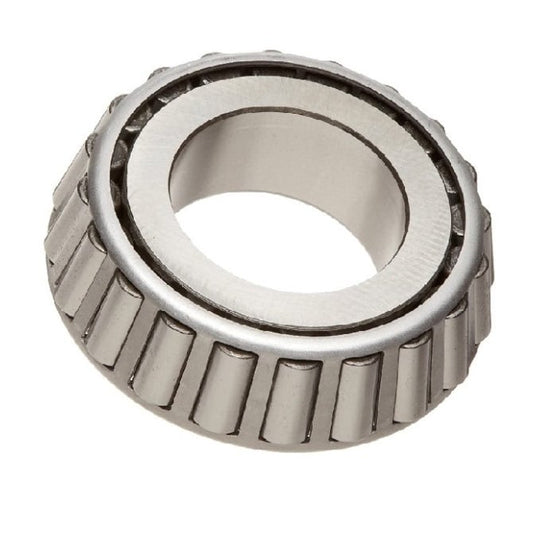

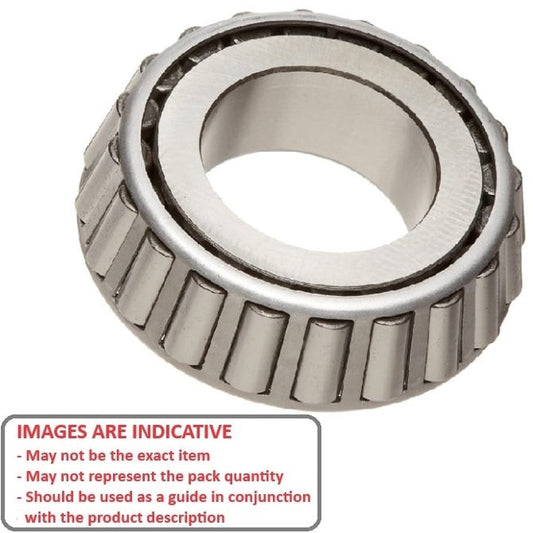

Bearings - Tapered Roller Cone

4 Products in this selection
  • Replacements for existing tapered roller cones (inner part). Match with part number on your existing bearing. It is recommended that you change both cup and cone whenever possible.
Additional resources:
A more concise listing may be found on the Smallparts store at Bearings - Tapered Roller Cone. Smallparts promote the most popular MBA products.
Inside Diameter Cone Width Matching Cups rs1 min rs2 min Indicative
Inside Diameter
19.050
mm

(0.75 in.)
Cone Width
19.050
mm

(0.75 in.)
Matching Cups
09194, 09195, 09196
rs1 min
1.300
mm
rs2 min
1.300
mm
1119184 | 09074 --- Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09074 Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$63.50 AUD
$63.50 AUD
Each
Inside Diameter Cone Width Matching Cups Indicative
Inside Diameter
19.050
mm

(0.75 in.)
Cone Width
19.050
mm

(0.75 in.)
Matching Cups
09194, 09195, 09196
1119184 | 09074 --- Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel
Material: Chrome Steel    rs1 min: 1.300 mm    rs2 min: 1.300 mm    Basic Dynamic Load Rating: 37500 Cr (N)    Basic Static Load Rating: 37500 Cor (N)    Limiting Speed with Grease: 8500 RPM
Part Number: 09074 Tapered Roller Cone Bearings - 19.05x19.05 mm - 09194, 09195, 09196 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$63.50 AUD
$63.50 AUD
Each
View the product page first if you are unsure.
Inside Diameter
44.450
mm

(1.75 in.)
Cone Width
30.302
mm

(1.193 in.)
Matching Cups
3720, 3730
rs1 min
3.500
mm
rs2 min
0.800
mm
1155467 | 3780 --- Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3780 Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$64.86 AUD
$64.86 AUD
Each
Inside Diameter
44.450
mm

(1.75 in.)
Cone Width
30.302
mm

(1.193 in.)
Matching Cups
3720, 3730
1155467 | 3780 --- Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel
Material: Chrome Steel    rs1 min: 3.500 mm    rs2 min: 0.800 mm    Basic Dynamic Load Rating: 102000 Cr (N)    Basic Static Load Rating: 134000 Cor (N)    Limiting Speed with Grease: 3800 RPM
Part Number: 3780 Tapered Roller Cone Bearings - 44.45x30.302 mm - 3720, 3730 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$64.86 AUD
$64.86 AUD
Each
View the product page first if you are unsure.
Inside Diameter
66.675
mm

(2.625 in.)
Cone Width
38.354
mm

(1.51 in.)
Matching Cups
HM212010
rs1 min
3.500
mm
rs2 min
1.500
mm
1171297 | HM212049 --- Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212049 Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$105.32 AUD
$105.32 AUD
Each
Inside Diameter
66.675
mm

(2.625 in.)
Cone Width
38.354
mm

(1.51 in.)
Matching Cups
HM212010
1171297 | HM212049 --- Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel
Material: Chrome Steel    rs1 min: 3.500 mm    rs2 min: 1.500 mm    Basic Dynamic Load Rating: 187000 Cr (N)    Basic Static Load Rating: 243000 Cor (N)    Limiting Speed with Grease: 3000 RPM
Part Number: HM212049 Tapered Roller Cone Bearings - 66.675x38.354 mm - HM212010 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$105.32 AUD
$105.32 AUD
Each
View the product page first if you are unsure.
Inside Diameter
90.000
mm

(3.543 in.)
Cone Width
40.000
mm

(1.575 in.)
Matching Cups
HM218210
rs1 min
7.000
mm
rs2 min
3.500
mm
1181814 | HM218248 --- Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel
Material: Chrome Steel    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218248 Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$152.05 AUD
$152.05 AUD
Each
Inside Diameter
90.000
mm

(3.543 in.)
Cone Width
40.000
mm

(1.575 in.)
Matching Cups
HM218210
1181814 | HM218248 --- Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel
Material: Chrome Steel    rs1 min: 7.000 mm    rs2 min: 3.500 mm    Basic Dynamic Load Rating: 220000 Cr (N)    Basic Static Load Rating: 325000 Cor (N)    Limiting Speed with Grease: 2300 RPM
Part Number: HM218248 Tapered Roller Cone Bearings - 90x40 mm - HM218210 - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$152.05 AUD
$152.05 AUD
Each
View the product page first if you are unsure.
