Collection: Bearings - Plastic - Acetal - Single Row - Glass Balls

Bearings (With Images)

Plastic

Acetal

Single Row

82 Products in this selection

Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

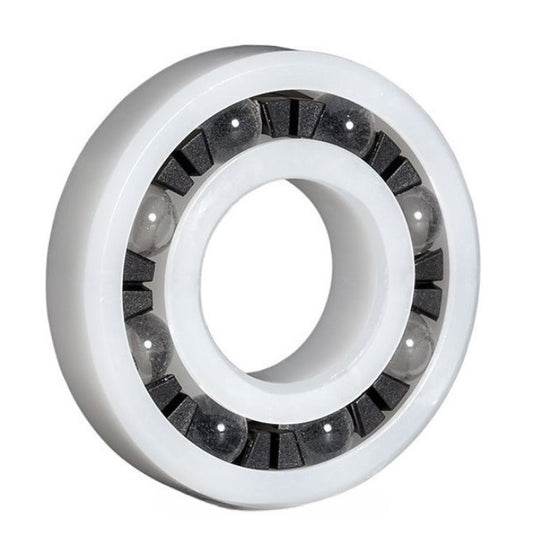

Races made from Acetal - Balls made from Ground Glass - Cages from Acetal or Nylon.
Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
Temperature Range - Minus 30 ^oC to 100 ^oC Continuous.

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Plastic - Acetal - Single Row - Glass Balls. Smallparts promote the most popular MBA products.

ID (d)	OD (D)	Width (B)	Flange Diameter	Flange Thickness	Inner Ring Width (Bn)	Indicative Image
ID (d) 3.175 mm + 0.076 / - 0.000 _{(0.125 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.224 mm	Flange Thickness 1.02 mm
Material: Acetal with Glass Balls Max RPM in Air: 3100 Notes: Unlubricated Type: Radial Dynamic Load Rating: 6.8 Kg Static Load Rating: 4.5 Kg
Part Number: P-FR2-8B-AGL Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Each

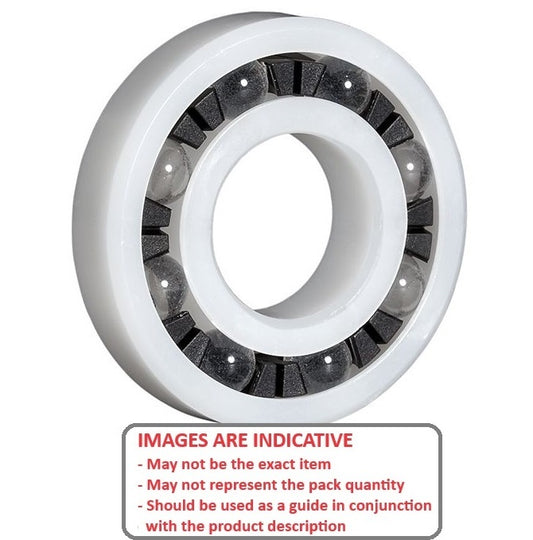

ID (d)	OD (D)	Width (B)	Flange Diameter	Indicative Image
ID (d) 3.175 mm + 0.076 / - 0.000 _{(0.125 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.224 mm
Material: Acetal with Glass Balls Flange Thickness: 1.02 mm Max RPM in Air: 3100 Notes: Unlubricated Type: Radial Dynamic Load Rating: 6.8 Kg Static Load Rating: 4.5 Kg
Part Number: P-FR2-8B-AGL Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Each View the product page first if you are unsure.
P-FR2-8B-AGL --- Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Glass Balls P-FR2-8B-AGL --- Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Glass Balls Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AGL Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Each
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AGL Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Each View the product page first if you are unsure.
P-624-AGL --- Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls P-624-AGL --- Plastic Bearings - 4x13x5 mm - Acetal with Glass Balls Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-634-AGL Plastic Bearings - 4x16x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Each
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-634-AGL Plastic Bearings - 4x16x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Each View the product page first if you are unsure.
P-634-AGL --- Plastic Bearings - 4x16x5 mm - Acetal with Glass Balls P-634-AGL --- Plastic Bearings - 4x16x5 mm - Acetal with Glass Balls Regular price $31.77 AUD Regular price Sale price $31.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.076 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-R3-AGL Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.076 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-R3-AGL Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each View the product page first if you are unsure.
P-R3-AGL --- Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Glass Balls P-R3-AGL --- Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Glass Balls Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Out of stock! Backorder Now

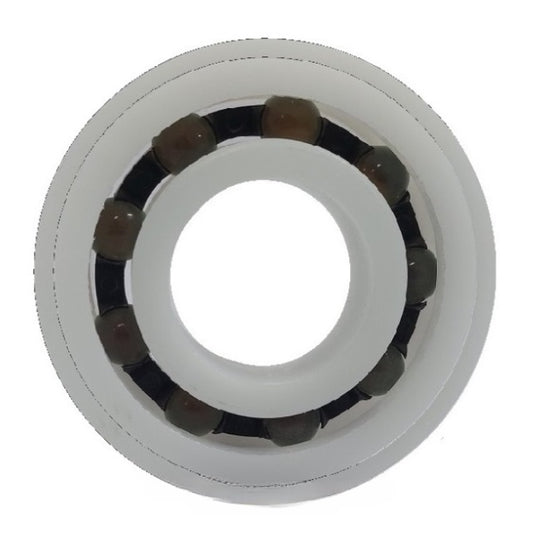

ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.351 mm	Flange Thickness 1.07 mm
Material: Acetal with Glass Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-FR3-AGL Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.351 mm
Material: Acetal with Glass Balls Flange Thickness: 1.07 mm Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-FR3-AGL Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Each View the product page first if you are unsure.
P-FR3-AGL --- Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Glass Balls P-FR3-AGL --- Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Glass Balls Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AGL Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls 11 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AGL Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls 11 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per Each View the product page first if you are unsure.
P-R1106-AGL --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls Sale P-R1106-AGL --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Glass Balls Regular price $23.23 AUD Regular price ~~$27.87 AUD~~ Sale price $23.23 AUD Unit price per 11 Available Now Sale
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AGL (25 Pcs) Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $500.50 AUD Regular price Sale price $500.50 AUD Unit price per Per 25
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AGL (25 Pcs) Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $500.50 AUD Regular price Sale price $500.50 AUD Unit price per Per 25 View the product page first if you are unsure.
P-625-AGL (25 Pcs) --- Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls P-625-AGL (25 Pcs) --- Plastic Bearings - 5x16x5 mm - Acetal with Glass Balls Regular price $500.50 AUD Regular price Sale price $500.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-635-AGL Plastic Bearings - 5x19x6 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-635-AGL Plastic Bearings - 5x19x6 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
P-635-AGL --- Plastic Bearings - 5x19x6 mm - Acetal with Glass Balls P-635-AGL --- Plastic Bearings - 5x19x6 mm - Acetal with Glass Balls Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AGL (25 Pcs) Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $500.50 AUD Regular price Sale price $500.50 AUD Unit price per Per 25
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AGL (25 Pcs) Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $500.50 AUD Regular price Sale price $500.50 AUD Unit price per Per 25 View the product page first if you are unsure.
P-606-AGL (25 Pcs) --- Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls P-606-AGL (25 Pcs) --- Plastic Bearings - 6x17x6 mm - Acetal with Glass Balls Regular price $500.50 AUD Regular price Sale price $500.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-626-AGL Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls 253 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-626-AGL Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls 253 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
P-626-AGL --- Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls P-626-AGL --- Plastic Bearings - 6x19x6 mm - Acetal with Glass Balls Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per 253 Available Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-636-AGL Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls 2 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $33.50 AUD Regular price Sale price $33.50 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-636-AGL Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls 2 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $33.50 AUD Regular price Sale price $33.50 AUD Unit price per Each View the product page first if you are unsure.
P-636-AGL --- Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls P-636-AGL --- Plastic Bearings - 6x22x7 mm - Acetal with Glass Balls Regular price $33.50 AUD Regular price Sale price $33.50 AUD Unit price per 2 Available Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AGL Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls 21 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AGL Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls 21 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Each View the product page first if you are unsure.
P-R4-AGL --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls P-R4-AGL --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Glass Balls Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per 21 Available Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.102 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}	Flange Diameter 17.526 mm	Flange Thickness 1.07 mm
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-FR4-AGL Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $44.50 AUD Regular price Sale price $44.50 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.102 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}	Flange Diameter 17.526 mm
Material: Acetal with Glass Balls Flange Thickness: 1.07 mm Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-FR4-AGL Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $44.50 AUD Regular price Sale price $44.50 AUD Unit price per Each View the product page first if you are unsure.
P-FR4-AGL --- Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Glass Balls P-FR4-AGL --- Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Glass Balls Regular price $44.50 AUD Regular price Sale price $44.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 5.558 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12A-AGL (25 Pcs) Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $665.59 AUD Regular price Sale price $665.59 AUD Unit price per Per 25
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 5.558 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12A-AGL (25 Pcs) Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $665.59 AUD Regular price Sale price $665.59 AUD Unit price per Per 25 View the product page first if you are unsure.
P-R4-12A-AGL (25 Pcs) --- Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Glass Balls P-R4-12A-AGL (25 Pcs) --- Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Glass Balls Regular price $665.59 AUD Regular price Sale price $665.59 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 7.144 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12B-AGL Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 7.144 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12B-AGL Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each View the product page first if you are unsure.
P-R4-12B-AGL --- Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Glass Balls P-R4-12B-AGL --- Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Glass Balls Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Out of stock! Backorder Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AGL Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls 1 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AGL Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls 1 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
P-607-AGL --- Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls P-607-AGL --- Plastic Bearings - 7x19x6 mm - Acetal with Glass Balls Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per 1 Available Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-627-AGL Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-627-AGL Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
P-627-AGL --- Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls P-627-AGL --- Plastic Bearings - 7x22x7 mm - Acetal with Glass Balls Regular price $32.77 AUD Regular price Sale price $32.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-637-AGL Plastic Bearings - 7x26x9 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-637-AGL Plastic Bearings - 7x26x9 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
P-637-AGL --- Plastic Bearings - 7x26x9 mm - Acetal with Glass Balls P-637-AGL --- Plastic Bearings - 7x26x9 mm - Acetal with Glass Balls Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-608-AGL Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls 11 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $27.41 AUD Regular price Sale price $27.41 AUD Unit price per Each
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-608-AGL Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls 11 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $27.41 AUD Regular price Sale price $27.41 AUD Unit price per Each View the product page first if you are unsure.
P-608-AGL --- Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls P-608-AGL --- Plastic Bearings - 8x22x7 mm - Acetal with Glass Balls Regular price $27.41 AUD Regular price Sale price $27.41 AUD Unit price per 11 Available Now
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 24.000 mm + 0.000 / - 0.076 _{(0.945 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-628-AGL Plastic Bearings - 8x24x8 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 24.000 mm + 0.000 / - 0.076 _{(0.945 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-628-AGL Plastic Bearings - 8x24x8 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
P-628-AGL --- Plastic Bearings - 8x24x8 mm - Acetal with Glass Balls P-628-AGL --- Plastic Bearings - 8x24x8 mm - Acetal with Glass Balls Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-638-AGL Plastic Bearings - 8x28x9 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
ID (d) 8.000 mm + 0.076 / - 0.000 _{(0.315 in.)}	OD (D) 28.000 mm + 0.000 / - 0.102 _{(1.102 in.)}	Width (B) 9.000 mm + 0.127 / - 0.000 _{(0.354 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-638-AGL Plastic Bearings - 8x28x9 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
P-638-AGL --- Plastic Bearings - 8x28x9 mm - Acetal with Glass Balls P-638-AGL --- Plastic Bearings - 8x28x9 mm - Acetal with Glass Balls Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 24.000 mm + 0.000 / - 0.076 _{(0.945 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-609-AGL Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 24.000 mm + 0.000 / - 0.076 _{(0.945 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-609-AGL Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
P-609-AGL --- Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls P-609-AGL --- Plastic Bearings - 9x24x7 mm - Acetal with Glass Balls Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-629-AGL Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls 1 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 26.000 mm + 0.000 / - 0.102 _{(1.024 in.)}	Width (B) 8.000 mm + 0.127 / - 0.000 _{(0.315 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-629-AGL Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls 1 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
P-629-AGL --- Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls P-629-AGL --- Plastic Bearings - 9x26x8 mm - Acetal with Glass Balls Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per 1 Available Now
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 10.000 mm + 0.127 / - 0.000 _{(0.394 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-639-AGL Plastic Bearings - 9x30x10 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Each
ID (d) 9.000 mm + 0.076 / - 0.000 _{(0.354 in.)}	OD (D) 30.000 mm + 0.000 / - 0.102 _{(1.181 in.)}	Width (B) 10.000 mm + 0.127 / - 0.000 _{(0.394 in.)}
Material: Acetal with Glass Balls Max RPM in Air: 1142 Notes: Unlubricated Type: Radial Dynamic Load Rating: 24.9 Kg Static Load Rating: 19.5 Kg
Part Number: P-639-AGL Plastic Bearings - 9x30x10 mm - Acetal with Glass Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Each View the product page first if you are unsure.
P-639-AGL --- Plastic Bearings - 9x30x10 mm - Acetal with Glass Balls P-639-AGL --- Plastic Bearings - 9x30x10 mm - Acetal with Glass Balls Regular price $40.59 AUD Regular price Sale price $40.59 AUD Unit price per Out of stock! Backorder Now
