111 Products in this selection

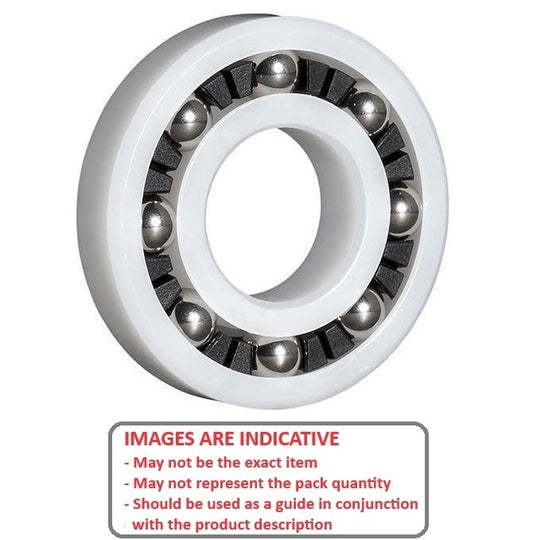

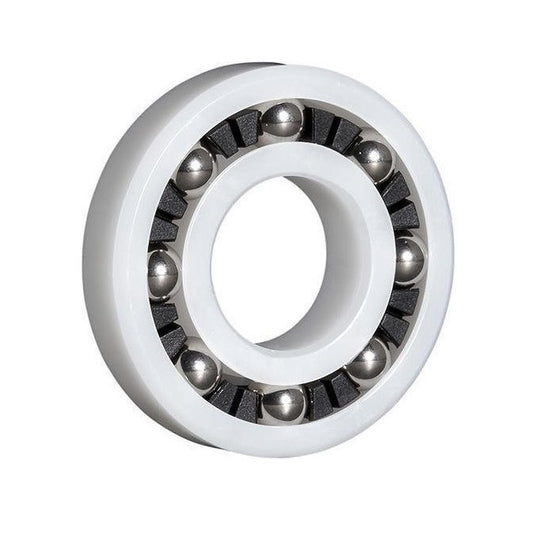

Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.
Races made from Acetal - Balls made from 316 Stainless Steel - Cages from Acetal or Nylon.
Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
Temperature Range - Minus 30 ^oC to 100 ^oC Continuous.

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls. Smallparts promote the most popular MBA products.

ID (d)	OD (D)	Width (B)	Flange Diameter	Flange Thickness	Inner Ring Width (Bn)	Indicative Image
ID (d) 3.175 mm + 0.076 / - 0.000 _{(0.125 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.224 mm	Flange Thickness 1.02 mm

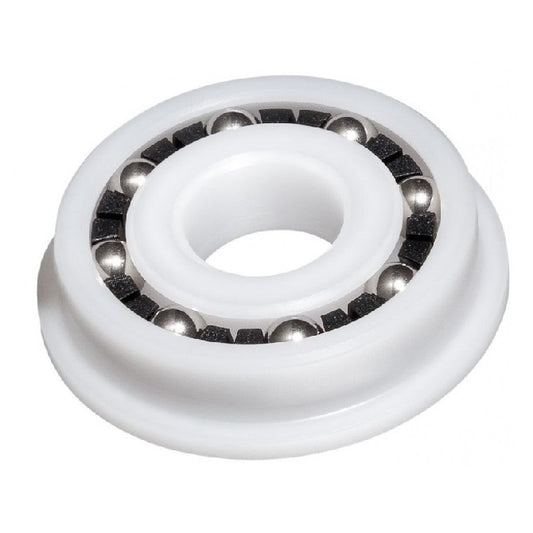

Material: Acetal with Stainless 316 Balls Max RPM in Air: 3100 Notes: Unlubricated Type: Radial Flanged Dynamic Load Rating: 6.8 Kg Static Load Rating: 4.5 Kg
Part Number: P-FR2-8B-AS6 Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Each
ID (d)	OD (D)	Width (B)	Flange Diameter	Indicative Image
ID (d) 3.175 mm + 0.076 / - 0.000 _{(0.125 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.224 mm
Material: Acetal with Stainless 316 Balls Flange Thickness: 1.02 mm Max RPM in Air: 3100 Notes: Unlubricated Type: Radial Flanged Dynamic Load Rating: 6.8 Kg Static Load Rating: 4.5 Kg
Part Number: P-FR2-8B-AS6 Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Each View the product page first if you are unsure.
P-FR2-8B-AS6 --- Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Stainless 316 Balls P-FR2-8B-AS6 --- Plastic Bearings - 3.175x12.7x3.969 mm / 14.224 mm - Acetal with Stainless 316 Balls Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AS6 Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls 32 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.076 _{(0.512 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-624-AS6 Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls 32 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per Each View the product page first if you are unsure.
P-624-AS6 --- Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls Sale P-624-AS6 --- Plastic Bearings - 4x13x5 mm - Acetal with Stainless 316 Balls Regular price $22.50 AUD Regular price ~~$27.00 AUD~~ Sale price $22.50 AUD Unit price per 32 Available Now Sale
ID (d) 4.000 mm + 0.10 / - 0.00 _{(0.157 in.)}	OD (D) 13.000 mm + 0.00 / - 0.10 _{(0.512 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1840 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.1 Kg
Part Number: P-624-AS6A-ECO (4 Pcs) Plastic Bearings - 4x13x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 4
ID (d) 4.000 mm + 0.10 / - 0.00 _{(0.157 in.)}	OD (D) 13.000 mm + 0.00 / - 0.10 _{(0.512 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1840 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.1 Kg
Part Number: P-624-AS6A-ECO (4 Pcs) Plastic Bearings - 4x13x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 4 View the product page first if you are unsure.
P-624-AS6A-ECO (4 Pcs) --- Plastic Bearings - 4x13x5 mm - Acetal Antistatic with Stainless 316 Balls P-624-AS6A-ECO (4 Pcs) --- Plastic Bearings - 4x13x5 mm - Acetal Antistatic with Stainless 316 Balls Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-634-AS6 Plastic Bearings - 4x16x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $27.32 AUD Regular price Sale price $27.32 AUD Unit price per Each
ID (d) 4.000 mm + 0.076 / - 0.000 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-634-AS6 Plastic Bearings - 4x16x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $27.32 AUD Regular price Sale price $27.32 AUD Unit price per Each View the product page first if you are unsure.
P-634-AS6 --- Plastic Bearings - 4x16x5 mm - Acetal with Stainless 316 Balls P-634-AS6 --- Plastic Bearings - 4x16x5 mm - Acetal with Stainless 316 Balls Regular price $27.32 AUD Regular price Sale price $27.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.076 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-R3-AS6 Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls 4 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.076 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-R3-AS6 Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls 4 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each View the product page first if you are unsure.
P-R3-AS6 --- Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls P-R3-AS6 --- Plastic Bearings - 4.763x12.7x3.969 mm - Acetal with Stainless 316 Balls Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per 4 Available Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.351 mm	Flange Thickness 1.07 mm
Material: Acetal with Stainless 316 Balls Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Flanged Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-FR3-AS6 Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 12.700 mm + 0.000 / - 0.102 _{(0.5 in.)}	Width (B) 3.969 mm + 0.127 / - 0.000 _{(0.156 in.)}	Flange Diameter 14.351 mm
Material: Acetal with Stainless 316 Balls Flange Thickness: 1.07 mm Max RPM in Air: 3167 Notes: Unlubricated Type: Radial Flanged Dynamic Load Rating: 7.7 Kg Static Load Rating: 5 Kg
Part Number: P-FR3-AS6 Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Each View the product page first if you are unsure.
P-FR3-AS6 --- Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Stainless 316 Balls P-FR3-AS6 --- Plastic Bearings - 4.763x12.7x3.969 mm / 14.351 mm - Acetal with Stainless 316 Balls Regular price $37.41 AUD Regular price Sale price $37.41 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AS6 Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls 40 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each
ID (d) 4.763 mm + 0.076 / - 0.000 _{(0.188 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R1106-AS6 Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls 40 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each View the product page first if you are unsure.
P-R1106-AS6 --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls Sale P-R1106-AS6 --- Plastic Bearings - 4.763x15.875x4.978 mm - Acetal with Stainless 316 Balls Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per 40 Available Now Sale
ID (d) 5.000 mm + 0.10 / - 0.00 _{(0.197 in.)}	OD (D) 14.000 mm + 0.00 / - 0.10 _{(0.551 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.1 Kg
Part Number: P-605-AS6A-ECO (4 Pcs) Plastic Bearings - 5x14x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Per 4
ID (d) 5.000 mm + 0.10 / - 0.00 _{(0.197 in.)}	OD (D) 14.000 mm + 0.00 / - 0.10 _{(0.551 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.1 Kg
Part Number: P-605-AS6A-ECO (4 Pcs) Plastic Bearings - 5x14x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Per 4 View the product page first if you are unsure.
P-605-AS6A-ECO (4 Pcs) --- Plastic Bearings - 5x14x5 mm - Acetal Antistatic with Stainless 316 Balls P-605-AS6A-ECO (4 Pcs) --- Plastic Bearings - 5x14x5 mm - Acetal Antistatic with Stainless 316 Balls Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 5.000 mm + 0.10 / - 0.00 _{(0.197 in.)}	OD (D) 14.000 mm + 0.00 / - 0.10 _{(0.551 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.1 Kg
Part Number: P-605-AS6 (4 Pcs) Plastic Bearings - 5x14x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Per 4
ID (d) 5.000 mm + 0.10 / - 0.00 _{(0.197 in.)}	OD (D) 14.000 mm + 0.00 / - 0.10 _{(0.551 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.1 Kg
Part Number: P-605-AS6 (4 Pcs) Plastic Bearings - 5x14x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Per 4 View the product page first if you are unsure.
P-605-AS6 (4 Pcs) --- Plastic Bearings - 5x14x5 mm - Acetal with Stainless 316 Balls P-605-AS6 (4 Pcs) --- Plastic Bearings - 5x14x5 mm - Acetal with Stainless 316 Balls Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 5.000 mm + 0.10 / - 0.00 _{(0.197 in.)}	OD (D) 16.000 mm + 0.00 / - 0.10 _{(0.63 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1702 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.8 Kg Static Load Rating: 1.3 Kg
Part Number: P-625-AS6A-ECO Plastic Bearings - 5x16x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each
ID (d) 5.000 mm + 0.10 / - 0.00 _{(0.197 in.)}	OD (D) 16.000 mm + 0.00 / - 0.10 _{(0.63 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1702 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.8 Kg Static Load Rating: 1.3 Kg
Part Number: P-625-AS6A-ECO Plastic Bearings - 5x16x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
P-625-AS6A-ECO --- Plastic Bearings - 5x16x5 mm - Acetal Antistatic with Stainless 316 Balls P-625-AS6A-ECO --- Plastic Bearings - 5x16x5 mm - Acetal Antistatic with Stainless 316 Balls Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AS6 Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 16.000 mm + 0.000 / - 0.076 _{(0.63 in.)}	Width (B) 5.000 mm + 0.127 / - 0.000 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-625-AS6 Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each View the product page first if you are unsure.
P-625-AS6 --- Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls P-625-AS6 --- Plastic Bearings - 5x16x5 mm - Acetal with Stainless 316 Balls Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Out of stock! Backorder Now
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-635-AS6 Plastic Bearings - 5x19x6 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each
ID (d) 5.000 mm + 0.076 / - 0.000 _{(0.197 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-635-AS6 Plastic Bearings - 5x19x6 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each View the product page first if you are unsure.
P-635-AS6 --- Plastic Bearings - 5x19x6 mm - Acetal with Stainless 316 Balls P-635-AS6 --- Plastic Bearings - 5x19x6 mm - Acetal with Stainless 316 Balls Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 15.000 mm + 0.00 / - 0.10 _{(0.591 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.0 Kg
Part Number: P-696-AS6A-ECO (2 Pcs) Plastic Bearings - 6x15x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 2
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 15.000 mm + 0.00 / - 0.10 _{(0.591 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.0 Kg
Part Number: P-696-AS6A-ECO (2 Pcs) Plastic Bearings - 6x15x5 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 2 View the product page first if you are unsure.
P-696-AS6A-ECO (2 Pcs) --- Plastic Bearings - 6x15x5 mm - Acetal Antistatic with Stainless 316 Balls P-696-AS6A-ECO (2 Pcs) --- Plastic Bearings - 6x15x5 mm - Acetal Antistatic with Stainless 316 Balls Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 15.000 mm + 0.00 / - 0.10 _{(0.591 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.0 Kg
Part Number: P-696-AS6 (4 Pcs) Plastic Bearings - 6x15x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Per 4
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 15.000 mm + 0.00 / - 0.10 _{(0.591 in.)}	Width (B) 5.000 mm + 0.00 / - 0.12 _{(0.197 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1610 Notes: Unlubricated Type: Radial Dynamic Load Rating: 1.4 Kg Static Load Rating: 1.0 Kg
Part Number: P-696-AS6 (4 Pcs) Plastic Bearings - 6x15x5 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Per 4 View the product page first if you are unsure.
P-696-AS6 (4 Pcs) --- Plastic Bearings - 6x15x5 mm - Acetal with Stainless 316 Balls P-696-AS6 (4 Pcs) --- Plastic Bearings - 6x15x5 mm - Acetal with Stainless 316 Balls Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 17.000 mm + 0.00 / - 0.10 _{(0.669 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1518 Notes: Unlubricated Type: Radial Dynamic Load Rating: 2.2 Kg Static Load Rating: 1.7 Kg
Part Number: P-606-AS6A-ECO (4 Pcs) Plastic Bearings - 6x17x6 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Per 4
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 17.000 mm + 0.00 / - 0.10 _{(0.669 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1518 Notes: Unlubricated Type: Radial Dynamic Load Rating: 2.2 Kg Static Load Rating: 1.7 Kg
Part Number: P-606-AS6A-ECO (4 Pcs) Plastic Bearings - 6x17x6 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Per 4 View the product page first if you are unsure.
P-606-AS6A-ECO (4 Pcs) --- Plastic Bearings - 6x17x6 mm - Acetal Antistatic with Stainless 316 Balls P-606-AS6A-ECO (4 Pcs) --- Plastic Bearings - 6x17x6 mm - Acetal Antistatic with Stainless 316 Balls Regular price $24.77 AUD Regular price Sale price $24.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AS6 Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls 1 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 17.000 mm + 0.000 / - 0.076 _{(0.669 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-606-AS6 Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls 1 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per Each View the product page first if you are unsure.
P-606-AS6 --- Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls Sale P-606-AS6 --- Plastic Bearings - 6x17x6 mm - Acetal with Stainless 316 Balls Regular price $19.23 AUD Regular price ~~$23.07 AUD~~ Sale price $19.23 AUD Unit price per 1 Available Now Sale
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 19.000 mm + 0.00 / - 0.10 _{(0.748 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1472 Notes: Unlubricated Type: Radial Dynamic Load Rating: 3.4 Kg Static Load Rating: 2.0 Kg
Part Number: P-626-AS6A-ECO (4 Pcs) Plastic Bearings - 6x19x6 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 4
ID (d) 6.000 mm + 0.10 / - 0.00 _{(0.236 in.)}	OD (D) 19.000 mm + 0.00 / - 0.10 _{(0.748 in.)}	Width (B) 6.000 mm + 0.00 / - 0.12 _{(0.236 in.)}
Material: Acetal Antistatic with Stainless 316 Balls Max RPM in Air: 1472 Notes: Unlubricated Type: Radial Dynamic Load Rating: 3.4 Kg Static Load Rating: 2.0 Kg
Part Number: P-626-AS6A-ECO (4 Pcs) Plastic Bearings - 6x19x6 mm - Acetal Antistatic with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 16, 2025 Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Per 4 View the product page first if you are unsure.
P-626-AS6A-ECO (4 Pcs) --- Plastic Bearings - 6x19x6 mm - Acetal Antistatic with Stainless 316 Balls P-626-AS6A-ECO (4 Pcs) --- Plastic Bearings - 6x19x6 mm - Acetal Antistatic with Stainless 316 Balls Regular price $27.59 AUD Regular price Sale price $27.59 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-626-AS6 Plastic Bearings - 6x19x6 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-626-AS6 Plastic Bearings - 6x19x6 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each View the product page first if you are unsure.
P-626-AS6 --- Plastic Bearings - 6x19x6 mm - Acetal with Stainless 316 Balls P-626-AS6 --- Plastic Bearings - 6x19x6 mm - Acetal with Stainless 316 Balls Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-636-AS6 Plastic Bearings - 6x22x7 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each
ID (d) 6.000 mm + 0.076 / - 0.000 _{(0.236 in.)}	OD (D) 22.000 mm + 0.000 / - 0.076 _{(0.866 in.)}	Width (B) 7.000 mm + 0.127 / - 0.000 _{(0.276 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-636-AS6 Plastic Bearings - 6x22x7 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each View the product page first if you are unsure.
P-636-AS6 --- Plastic Bearings - 6x22x7 mm - Acetal with Stainless 316 Balls P-636-AS6 --- Plastic Bearings - 6x22x7 mm - Acetal with Stainless 316 Balls Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AS6 Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.076 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-AS6 Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Each View the product page first if you are unsure.
P-R4-AS6 --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls P-R4-AS6 --- Plastic Bearings - 6.35x15.875x4.978 mm - Acetal with Stainless 316 Balls Regular price $27.23 AUD Regular price Sale price $27.23 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.102 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}	Flange Diameter 17.526 mm	Flange Thickness 1.07 mm
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Flanged Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-FR4-AS6 Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 15.875 mm + 0.000 / - 0.102 _{(0.625 in.)}	Width (B) 4.978 mm + 0.127 / - 0.000 _{(0.196 in.)}	Flange Diameter 17.526 mm
Material: Acetal with Stainless 316 Balls Flange Thickness: 1.07 mm Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Flanged Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-FR4-AS6 Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Each View the product page first if you are unsure.
P-FR4-AS6 --- Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Stainless 316 Balls P-FR4-AS6 --- Plastic Bearings - 6.35x15.875x4.978 mm / 17.526 mm - Acetal with Stainless 316 Balls Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 5.558 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12A-AS6 (25 Pcs) Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $528.05 AUD Regular price Sale price $528.05 AUD Unit price per Per 25
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 5.558 mm + 0.127 / - 0.000 _{(0.219 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12A-AS6 (25 Pcs) Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Stainless 316 Balls Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 28, 2025 Regular price $528.05 AUD Regular price Sale price $528.05 AUD Unit price per Per 25 View the product page first if you are unsure.
P-R4-12A-AS6 (25 Pcs) --- Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Stainless 316 Balls P-R4-12A-AS6 (25 Pcs) --- Plastic Bearings - 6.35x19.05x5.558 mm - Acetal with Stainless 316 Balls Regular price $528.05 AUD Regular price Sale price $528.05 AUD Unit price per Out of stock! Backorder Now
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 7.144 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12B-AS6 Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls 16 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $22.68 AUD Regular price Sale price $22.68 AUD Unit price per Each
ID (d) 6.350 mm + 0.076 / - 0.000 _{(0.25 in.)}	OD (D) 19.050 mm + 0.000 / - 0.076 _{(0.75 in.)}	Width (B) 7.144 mm + 0.127 / - 0.000 _{(0.281 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 2352 Notes: Unlubricated Type: Radial Dynamic Load Rating: 11.8 Kg Static Load Rating: 7.7 Kg
Part Number: P-R4-12B-AS6 Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls 16 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $22.68 AUD Regular price Sale price $22.68 AUD Unit price per Each View the product page first if you are unsure.
P-R4-12B-AS6 --- Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls P-R4-12B-AS6 --- Plastic Bearings - 6.35x19.05x7.144 mm - Acetal with Stainless 316 Balls Regular price $22.68 AUD Regular price Sale price $22.68 AUD Unit price per 16 Available Now
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AS6 Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls 5 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each
ID (d) 7.000 mm + 0.076 / - 0.000 _{(0.276 in.)}	OD (D) 19.000 mm + 0.000 / - 0.076 _{(0.748 in.)}	Width (B) 6.000 mm + 0.127 / - 0.000 _{(0.236 in.)}
Material: Acetal with Stainless 316 Balls Max RPM in Air: 1600 Notes: Unlubricated Type: Radial Dynamic Load Rating: 19.1 Kg Static Load Rating: 15 Kg
Part Number: P-607-AS6 Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls 5 Available Immediately \| Further orders can be expected around Sat, Jun 28, 2025 Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per Each View the product page first if you are unsure.
P-607-AS6 --- Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls P-607-AS6 --- Plastic Bearings - 7x19x6 mm - Acetal with Stainless 316 Balls Regular price $28.14 AUD Regular price Sale price $28.14 AUD Unit price per 5 Available Now
