Collection: Bearings - Pivot

Bearings (With Images)

Pivot

5 Products in this selection

This is a combined category of Pivot Bearings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:

A more concise listing may be found on the Smallparts store at Bearings - Pivot. Smallparts promote the most popular MBA products.

Contact Point (z)	OD (D)	Width (B)	r (min)	Static Load Rating (Cor)	Dynamic Load Rating (Cr)
Contact Point (z) 0.500 mm _{(0.02 in.)}	OD (D) 3.300 mm _{(0.13 in.)}	Width (B) 1.600 mm _{(0.063 in.)}
Material: Chrome Steel Flange OD (DF): 4.000 mm Flange Thickness (BF): 0.400 mm Category: Bearings - Pivot - Flanged
Part Number: C330 (10 Pcs) Pivot Bearings - 0.5x3.3x1.6 mm - Chrome Steel 40 units (400 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10
Contact Point (z)	OD (D)	Width (B)	r (min)	Indicative Image
Contact Point (z) 0.500 mm _{(0.02 in.)}	OD (D) 3.300 mm _{(0.13 in.)}	Width (B) 1.600 mm _{(0.063 in.)}
Material: Chrome Steel Flange OD (DF): 4.000 mm Flange Thickness (BF): 0.400 mm Category: Bearings - Pivot - Flanged
Part Number: C330 (10 Pcs) Pivot Bearings - 0.5x3.3x1.6 mm - Chrome Steel 40 units (400 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10
C330 (10 Pcs) --- Pivot Bearings - 0.5x3.3x1.6 mm - Chrome Steel Sale C330 (10 Pcs) --- Pivot Bearings - 0.5x3.3x1.6 mm - Chrome Steel Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 40 Available Now Sale
Contact Point (z) 1.60 mm _{(0.063 in.)}	OD (D) 6.00 mm _{(0.236 in.)}	Width (B) 2.5 mm _{(0.098 in.)}	r (min) 0.15 mm	Static Load Rating (Cor) 1.0 kgf	Dynamic Load Rating (Cr) 11.0 kgf
Material: Chrome Steel Flange OD (DF): 1.9 mm Category: Bearings - Pivot - Without Inner Ring

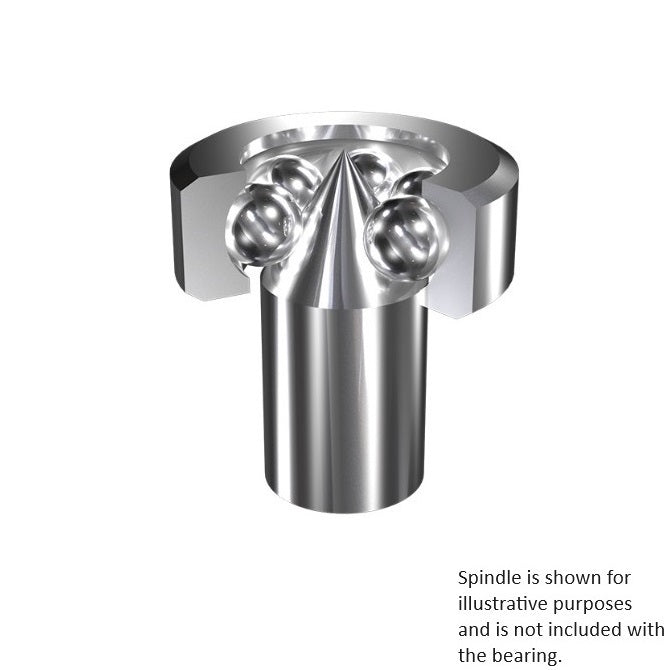

Part Number: BCF6 Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel 6 Available Immediately \| Further orders can be expected around Fri, Jun 06, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each
Contact Point (z) 1.60 mm _{(0.063 in.)}	OD (D) 6.00 mm _{(0.236 in.)}	Width (B) 2.5 mm _{(0.098 in.)}	r (min) 0.15 mm
Material: Chrome Steel Static Load Rating (Cor): 1.0 kgf Dynamic Load Rating (Cr): 11.0 kgf Flange OD (DF): 1.9 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF6 Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel 6 Available Immediately \| Further orders can be expected around Fri, Jun 06, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each View the product page first if you are unsure.
BCF6 --- Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel BCF6 --- Pivot Bearings - 1.6x6x2.5 mm / 0.15 mm - Chrome Steel Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 6 Available Now
Contact Point (z) 3.13 mm _{(0.123 in.)}	OD (D) 9.00 mm _{(0.354 in.)}	Width (B) 4.0 mm _{(0.157 in.)}	r (min) 0.2 mm	Static Load Rating (Cor) 3.0 kgf	Dynamic Load Rating (Cr) 28.0 kgf
Material: Chrome Steel Flange OD (DF): 3.5 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF9 Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel 48 Available Immediately \| Further orders can be expected around Fri, Jun 06, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Contact Point (z) 3.13 mm _{(0.123 in.)}	OD (D) 9.00 mm _{(0.354 in.)}	Width (B) 4.0 mm _{(0.157 in.)}	r (min) 0.2 mm
Material: Chrome Steel Static Load Rating (Cor): 3.0 kgf Dynamic Load Rating (Cr): 28.0 kgf Flange OD (DF): 3.5 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF9 Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel 48 Available Immediately \| Further orders can be expected around Fri, Jun 06, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
BCF9 --- Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel BCF9 --- Pivot Bearings - 3.13x9x4 mm / 0.2 mm - Chrome Steel Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per 48 Available Now
Contact Point (z) 3.13 mm _{(0.123 in.)}	OD (D) 10.00 mm _{(0.394 in.)}	Width (B) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm	Static Load Rating (Cor) 3.0 kgf	Dynamic Load Rating (Cr) 28.0 kgf
Material: Chrome Steel Flange OD (DF): 3.5 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF10 (50 Pcs) Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 06, 2025 Regular price $437.77 AUD Regular price Sale price $437.77 AUD Unit price per Per 50
Contact Point (z) 3.13 mm _{(0.123 in.)}	OD (D) 10.00 mm _{(0.394 in.)}	Width (B) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm
Material: Chrome Steel Static Load Rating (Cor): 3.0 kgf Dynamic Load Rating (Cr): 28.0 kgf Flange OD (DF): 3.5 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF10 (50 Pcs) Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 06, 2025 Regular price $437.77 AUD Regular price Sale price $437.77 AUD Unit price per Per 50 View the product page first if you are unsure.
BCF10 (50 Pcs) --- Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel BCF10 (50 Pcs) --- Pivot Bearings - 3.13x10x3.5 mm / 0.2 mm - Chrome Steel Regular price $437.77 AUD Regular price Sale price $437.77 AUD Unit price per Out of stock! Backorder Now
Contact Point (z) 5.16 mm _{(0.203 in.)}	OD (D) 13.00 mm _{(0.512 in.)}	Width (B) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm	Static Load Rating (Cor) 6.0 kgf	Dynamic Load Rating (Cr) 45.0 kgf
Material: Chrome Steel Flange OD (DF): 6.8 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF13 Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel 2 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $18.00 AUD Regular price ~~$21.60 AUD~~ Sale price $18.00 AUD Unit price per Each
Contact Point (z) 5.16 mm _{(0.203 in.)}	OD (D) 13.00 mm _{(0.512 in.)}	Width (B) 3.5 mm _{(0.138 in.)}	r (min) 0.2 mm
Material: Chrome Steel Static Load Rating (Cor): 6.0 kgf Dynamic Load Rating (Cr): 45.0 kgf Flange OD (DF): 6.8 mm Category: Bearings - Pivot - Without Inner Ring
Part Number: BCF13 Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel 2 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $18.00 AUD Regular price ~~$21.60 AUD~~ Sale price $18.00 AUD Unit price per Each
BCF13 --- Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel Sale BCF13 --- Pivot Bearings - 5.16x13x3.5 mm / 0.2 mm - Chrome Steel Regular price $18.00 AUD Regular price ~~$21.60 AUD~~ Sale price $18.00 AUD Unit price per 2 Available Now Sale
